Fig. 2
(11)
(10)
(10)
Fig. 3
(13) (12)
(14)
(15)
(16)
Fig. 4
(12)
(13)
(17)
Fig. 5
(18)
(21)
(19)
(20)
Fig. 6
(22)
(23)
(24)
Fig. 7
53
TROUBLE SHOOTING

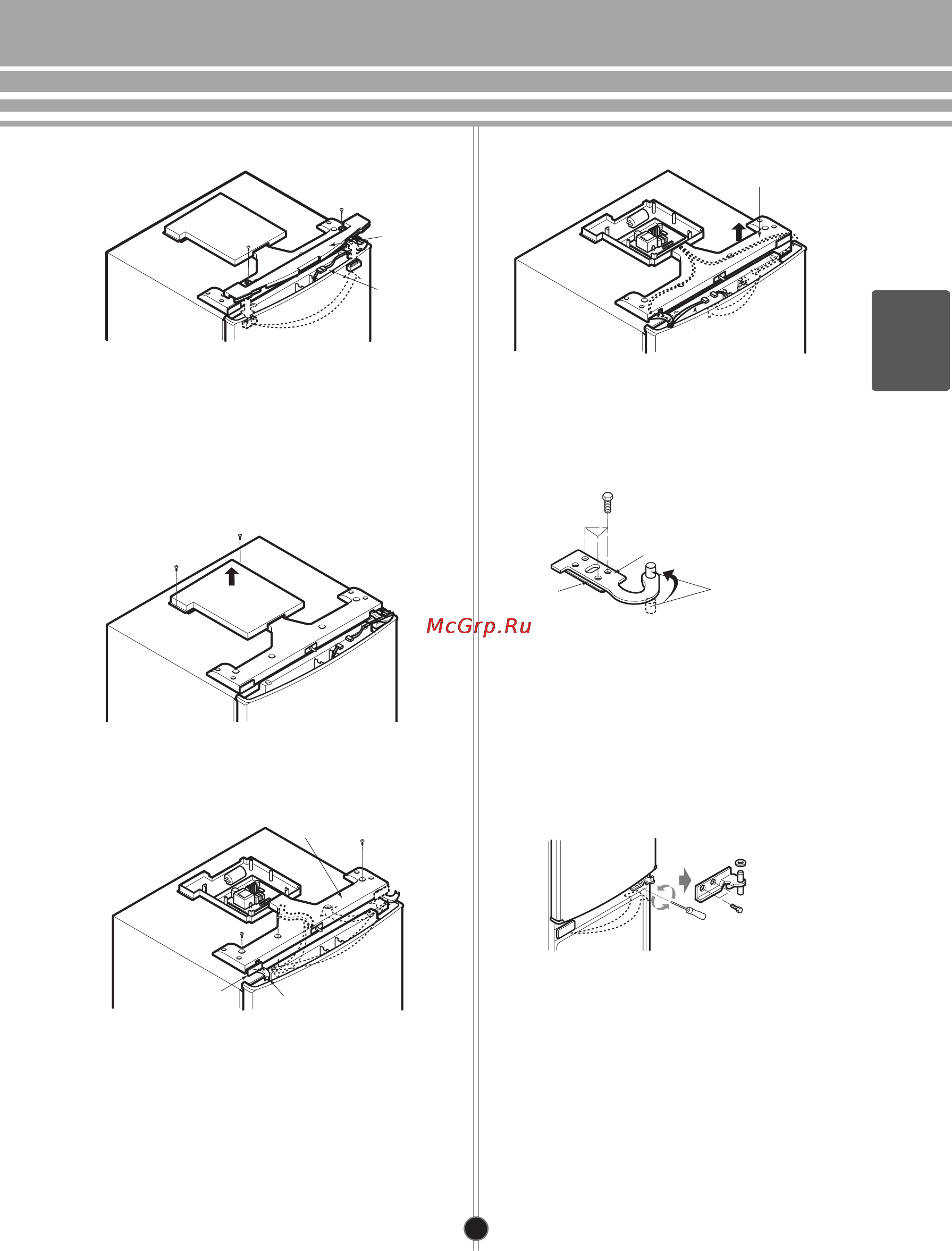

• Remove the upper cover fig. 2 (7) of the
refrigerator door by undoing the screws
fig. 2 (6).
• Move the blind plug fig. 2 (8) to the opposite
side in the direction of upper cover fig. 2 (7).
Plug off the connecting cable fig. 2 (9)
(for models with external display).
• Remove the cover fig. 3 (11) by undoing
the screws fig. 3 (10).
• Remove the upper cover fig. 4 (13) by undoing
the screws fig. 4 (12).
• Remove the cable holder fig. 4 (14) and fix it
in the central part of the cover fig. 4 (13).
• Mount the blind plug fig. 4 (16) on the opposite
side in the cover fig. 4 (13).
• Remove the cable holder fig. 4 (15) from the
central part of the cover fig. 4 (13) and fix it on
the opposite side of the cover fig. 4 (13).
• Move the cable bundle fig. 5 (17) to the
opposite side in the direction of the cover
fig. 5 (13).
• Remove the door upper hinge fig. 6 (19)
by undoing the bolts fig. 6 (18).
• Remove the refrigerating compartment door.
• Undo the rod fig. 6 (20) and secure it
on the opposite side of the hinge fig. 6 (19).
• Fix the gasket fig. 6 (21) on the opposite side
of the hinge fig. 6 (19).
• Remove the door central hinge fig. 7 (23)
by undoing the bolts fig. 7 (22).
• Remove the refrigerating compartment door.
• Secure the blind plug fig. 7 (24) it on the
opposite side of the refrigerator.
