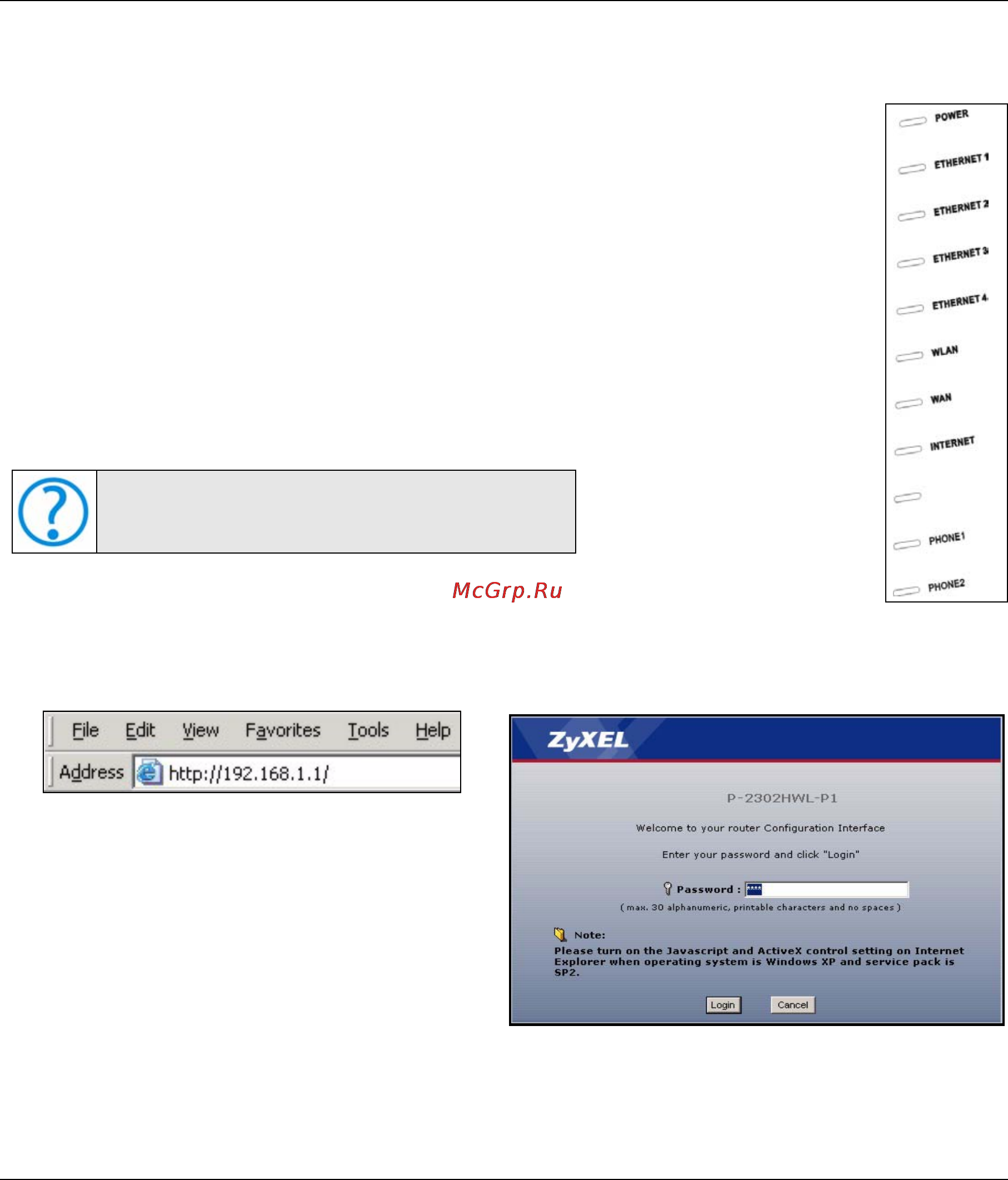

P-2302HW/HWL-P1 Series Quick Start Guide
3
5POWER: Use the power adaptor provided with your P-2302HW/HWL-P1 to connect an appropriate power
source to this socket.
1.1 LEDs (Lights)
•The POWER light blinks during start-up and is green once the P-2302HWL-P1 is ready.
• Each ETHERNET light turns on if the corresponding ETHERNET port is properly connected.
The lights blink when the P-2302HWL-P1 is sending or receiving data through the correspond-
ing ETHERNET port.
•The WAN light stays on if a physical connection with your DSL modem exists. The INTERNET
light stays on when Internet access is available.
•The PHONE lights stay on when your SIP account is registered and they blink if the receiver is
off the hook.
•The WLAN light turns on when the wireless LAN is ready. It blinks when the P-2302HWL-P1 is
sending/receiving data through the wireless LAN.
2 Initial Configuration
If none of the LEDs are on, turn the device off and
recheck your hardware connections.
1 Open your browser, and go to http://192.168.1.1. 2 Enter the password 1234. Then, click Login.
