P-2608HWL-Dx Quick Start Guide
2
1 Make Your Hardware Connections
Rear Panel

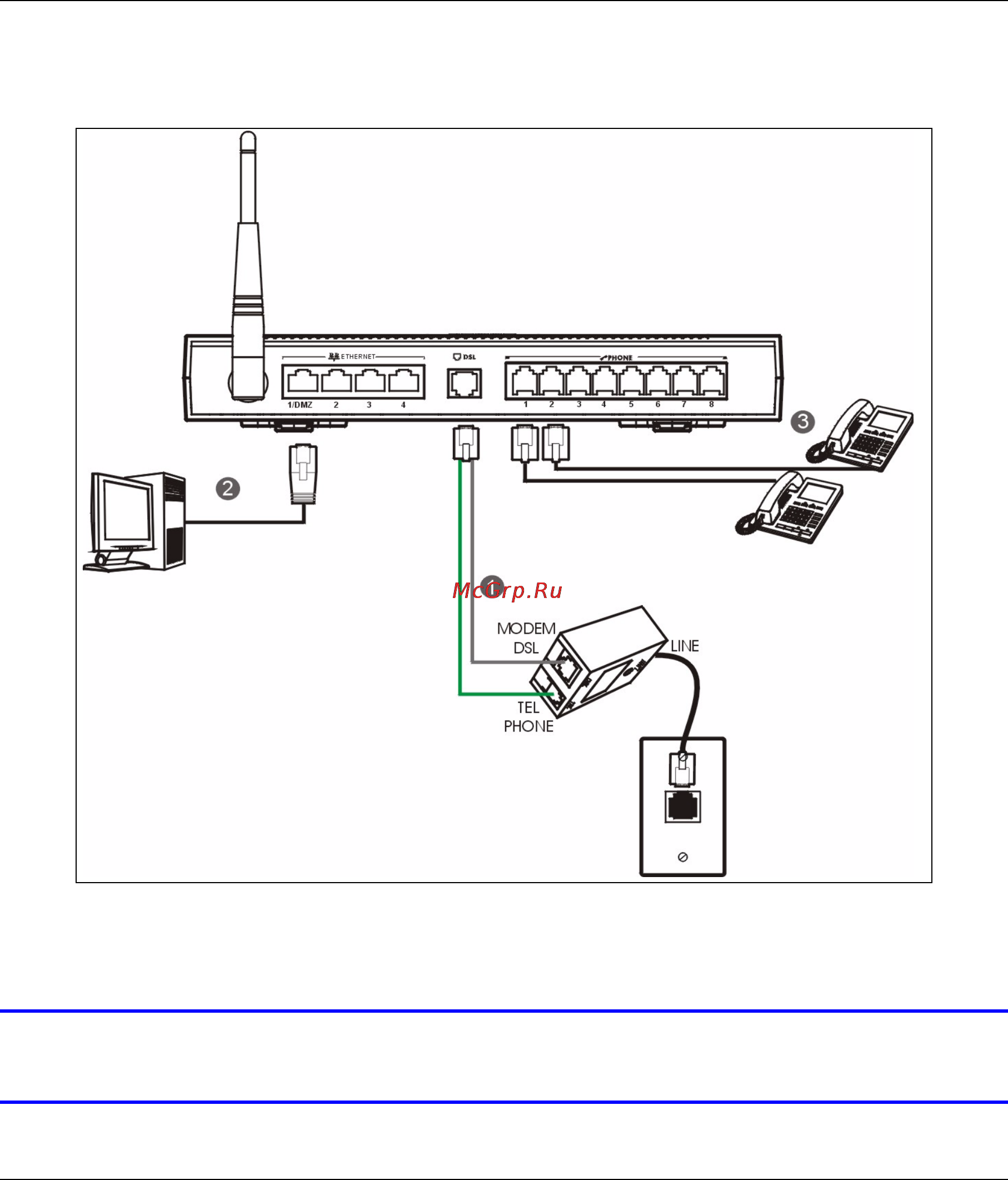

1DSL: In the P-2608HWL-Dx, the DSL port handles both the ADSL and regular telephone service
connections. Connect the v-shaped cable (with one gray and one green wire) to the P-2608HWL-Dx’s DSL
port. Connect the gray wire to the MODEM or DSL jack on a telephone or ISDN splitter (not included) and
the green wire to the splitter's TEL or PHONE jack. Connect the LINE jack to your telephone wall outlet.
V If you are using T-ISDN (UR-2), connect the green wire to the UR-2 TAE connector before
connecting it to the telephone splitter's "phone" jack or a telephone wall jack.
