IM2022
16

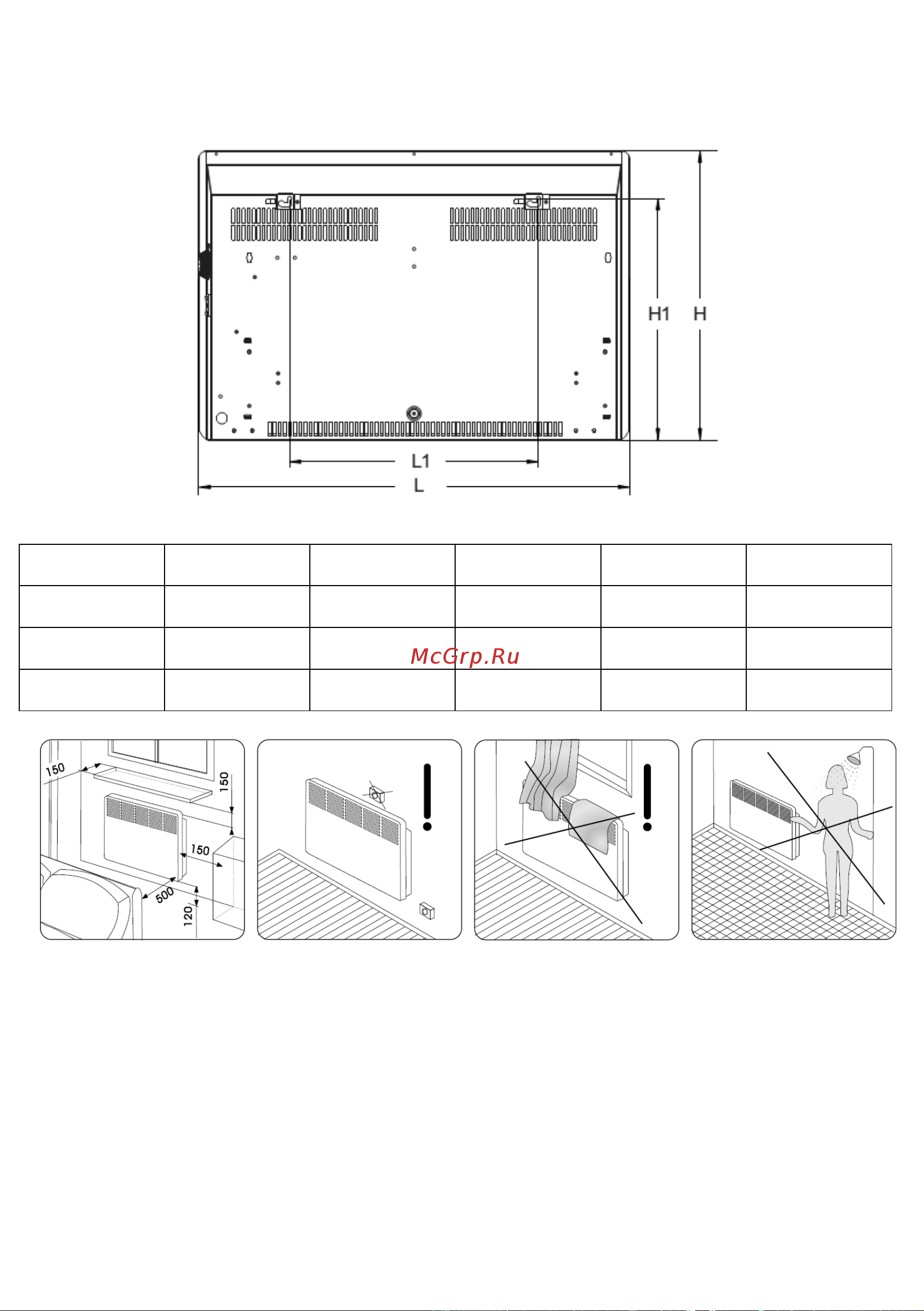

7. ASSEMBLY AND INSTALLATION
Wall installation of the device
Fig. 2
Series
Power
(W)
L, mm
Н, mm
L1, mm
Н1, mm
T-EC-S2M
T-EC-X2M
500/1000
460
400
206
332
T-EC-S2M
T-EC-X2M
750/1500
595
400
341
332
T-EC-S2M
T-EC-X2M
1000/2000
830
400
576
332
Fig. 3
The dimensions are in mm
1. Open the packaging and carefully remove the appliance and wall-mounting kit from it.
2. Remove any foam seals on the edges of the device and release it from plastic bag.
3. According to Fig. 2 and Fig. 3 choose the location for the installation of the device in compliance with
the minimal distances from other objects and floor.
4. Mark the height at which you want to install the convector and put visible marks on the wall.
5. Drill holes in the wall of the required diameter according to the marks, insert the dowels*, and tighten
the screws*.
6. Attach the mounting brackets to the convector body by inserting them into the holes in the back panel,
and turn them counterclockwise by 90°, then fasten with screws. Also screw the rubber stop to the
bottom center of the convector with a screw (see fig. 4).
