IM2022

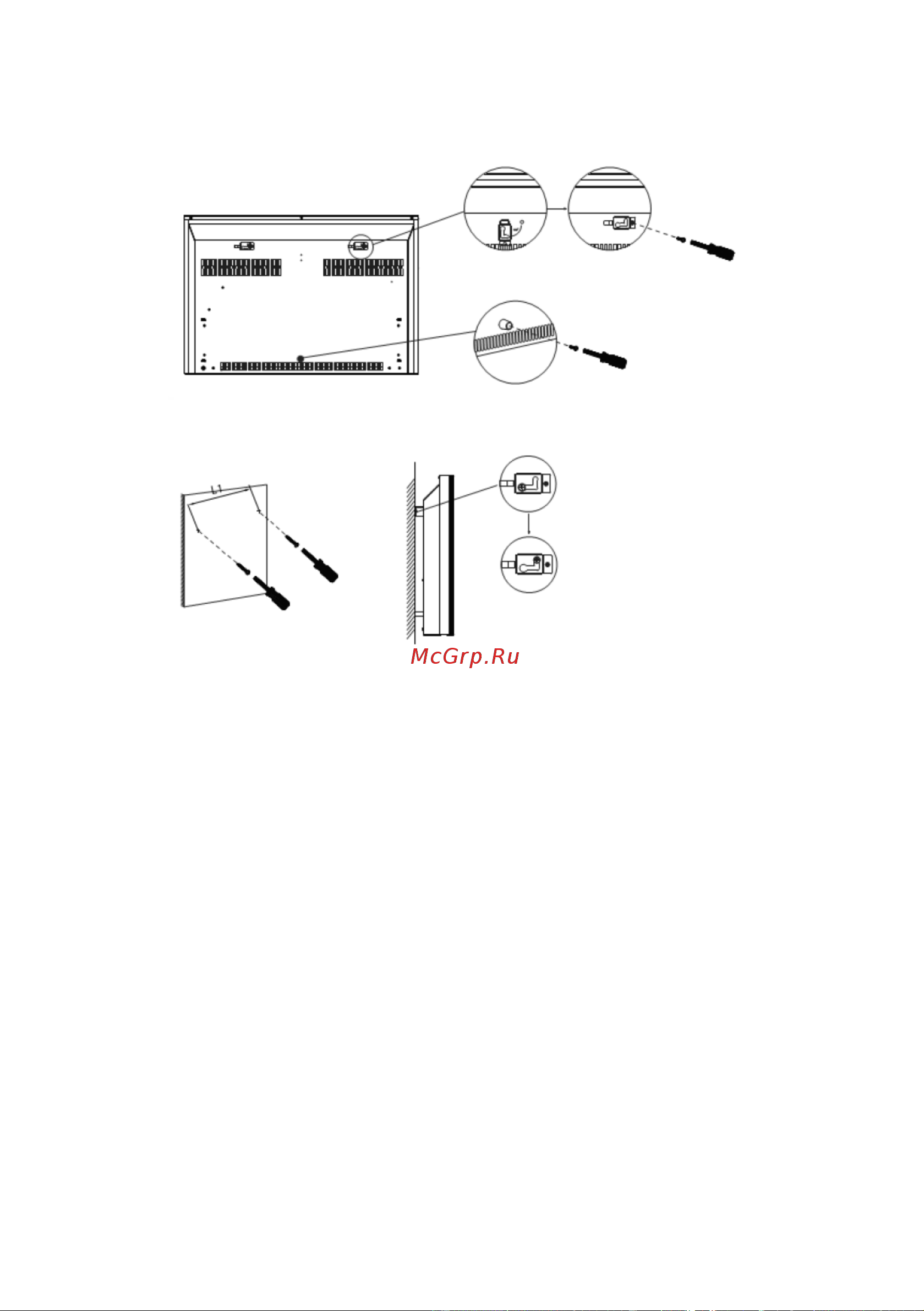

7. Mount the convector on the wall, matching the installed mounting screws in the wall with the holes of

the brackets installed on the device.

8. Check that the installation is secure.

*Not included in the delivery set

Fig. 4

Connecting feet to the convector

Unplug the device before connecting the wheels

1. Remove two support feet from the packaging of the convector.

2. Turn the device upside down.

3. Attach the support feet to the bottom of the device connecting them with the holes on the device. Attach

the feet carefully.

4. Use the fixing screws to tighten the feet to the convector. You may need to make some physical effort

for fastening to be secure.

5. Double check the fastening. Turn the appliance over to correct position and set it on a flat, horizontal

surface strictly upright.

Electric convector is ready to work!

Connecting to the network

1. Convector is designed for connection to the plug with single-phase voltage 220V~/50Hz.

2. Before connecting, make sure that the voltage is correct as specified on the nameplate with the

technical data of the device.

3. When connecting the convector to the mains, the applicable electrical safety rules must be observed.

4. Electric outlet must be properly grounded. The socket must be rated for at least 10A. Electrical plug and

socket must always be dry to prevent electrical leakage. Regularly check that the electrical plug is firmly

connected to the outlet. Check the plug in the following order: insert the plug into the socket. After half

an hour, turn off the convector and unplug the power cord, check if the plug is warm with the hand. If
