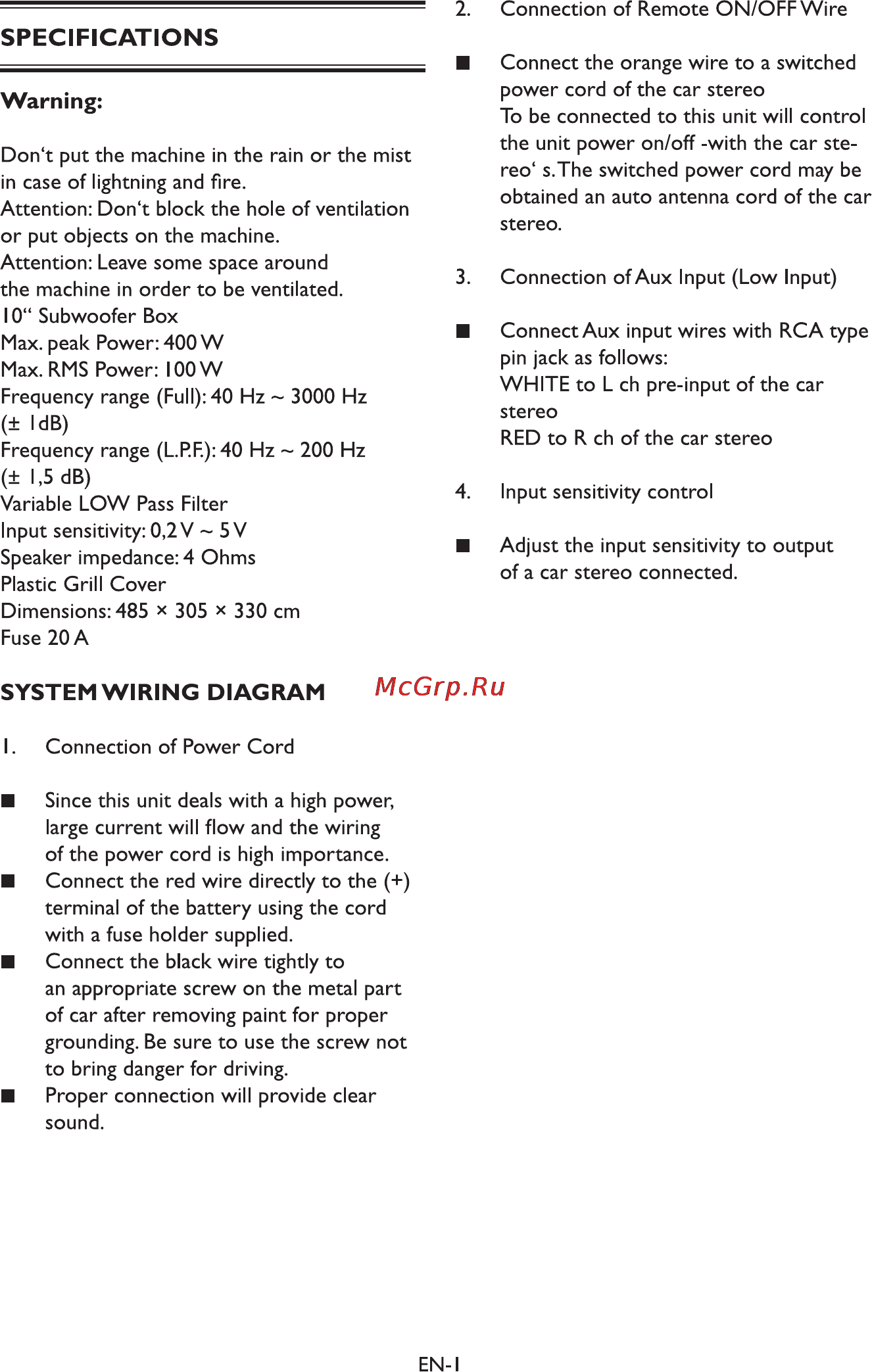

2 Connection of Remote ON OFF Wire SPECIFICATIONS Warning Don t put the machine in the rain or the mist in case of lightning and fire Attention Don t block the hole of ventilation or put objects on the machine Attention Leave some space around the machine in order to be ventilated 10 Subwoofer Box Max peak Power 400 W Max RMS Power I00W Frequency range Full 40 Hz 3000 Hz IdB Frequency range L P F 40 Hz 200 Hz 1 5 dB Variable LOW Pass Filter Input sensitivity 0 2 V 5 V Speaker impedance 4 Ohms Plastic Grill Cover Dimensions 485 x 305 x 330 cm Fuse 20 A Connect the orange wire to a switched power cord of the car stereo To be connected to this unit will control the unit power on off with the car ste reo s The switched power cord may be obtained an auto antenna cord of the car stereo 3 Connection of Aux Input Low Input Connect Aux input wires with RCA type pin jack as follows WHITE to L ch pre input of the car stereo RED to R ch of the car stereo 4 Input sensitivity control Adjust the input sensitivity to output of a car stereo connected SYSTEM WIRING DIAGRAM I Connection of Power Cord Since this unit deals with a high power large current will flow and the wiring of the power cord is high importance Connect the red wire directly to the terminal of the battery using the cord with a fuse holder supplied Connect the black wire tightly to an appropriate screw on the metal part of car after removing paint for proper grounding Be sure to use the screw not to bring danger for driving Proper connection will provide clear sound EN I
