Smart Valve controller Manual

1、 Product Profile

Welcome to choose our company's WIFI smart valve controller,

This product has the characteristics of intelligence, low cost and

high reliability. It can be controlled by distance away, It adopts

WIFI international technology and is fully compatible with WIFI

network.

2、 Product specifications

Power supply voltage 12V/1A

Torque 30-60 kgf.cm

Application System IOS/android

Application Valve type Handle valve

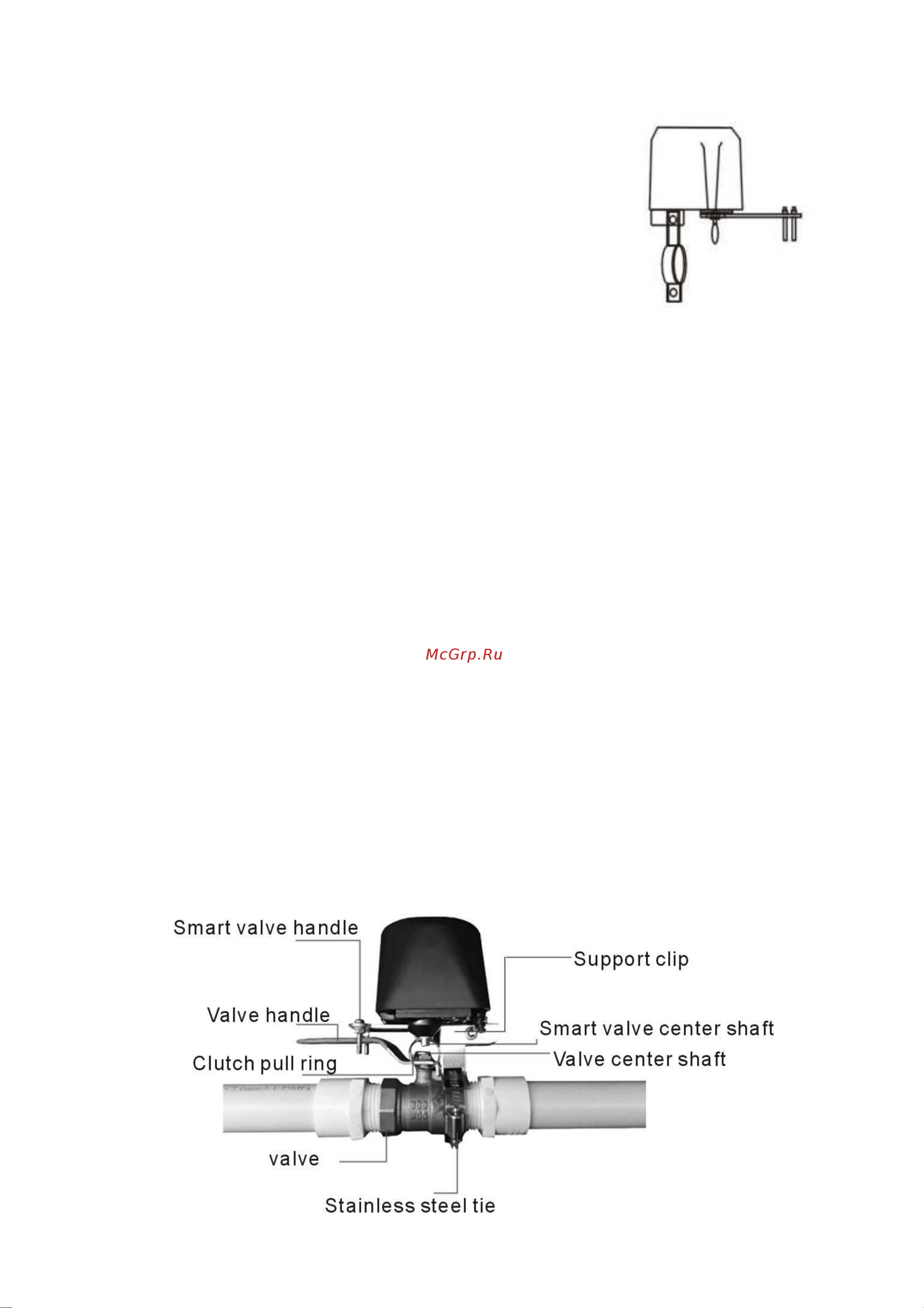

3、 Installation Guide

①

Install the bracket on the installation ear of the smart valve controller (screw is not tightened first).

②

Fix the mounting bracket on the water pipe or gas pipe (as shown in the figure).

③

Adjust the position of the smart valve controller, so that the output axis of the smart valve

controller is in line with the axis of the "water/gas pipe" valve handle. (Fig.) Then tighten the screw

at both ends of the mounting bracket. After the installation of the smart valve controller, Manually

pull down the clutch pull ring, Swing The smart valve controller Transfer handle,Check if the valve
