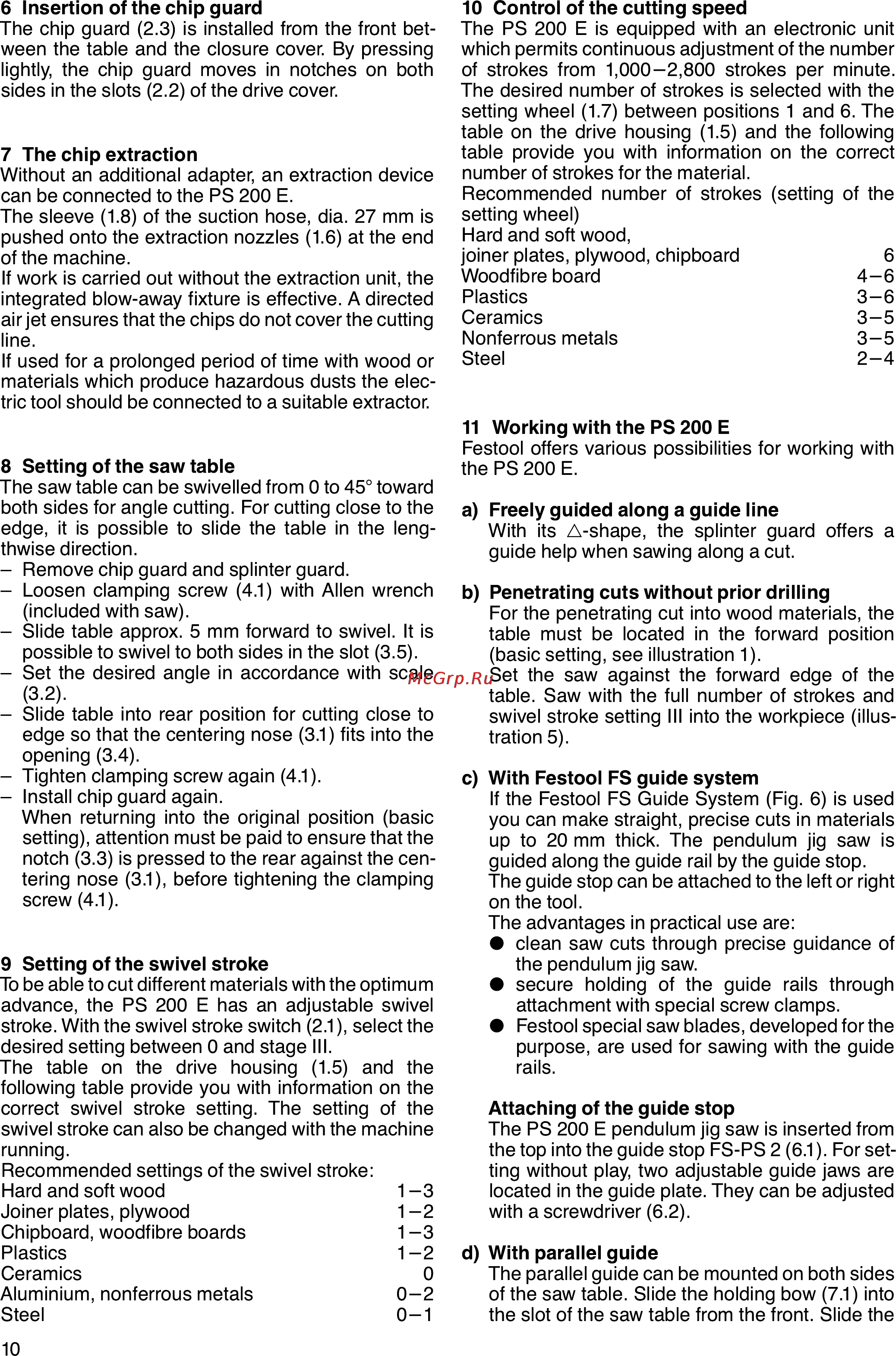

6 Insertion of the chip guard The chip guard 2 3 is installed from the front bet ween the table and the closure cover By pressing lightly the chip guard moves in notches on both sides in the slots 2 2 of the drive cover 7 The chip extraction Without an additional adapter an extraction device can be connected to the PS 200 E The sleeve 1 8 of the suction hose dia 27 mm is pushed onto the extraction nozzles 1 6 at the end of the machine If work is carried out without the extraction unit the integrated blow away fixture is effective A directed air jet ensures that the chips do not cover the cutting line If used for a prolonged period of time with wood or materials which produce hazardous dusts the elec tric tool should be connected to a suitable extractor 8 Setting of the saw table The saw table can be swivelled from 0 to 45 toward both sides for angle cutting For cutting close to the edge it is possible to slide the table in the leng thwise direction Remove chip guard and splinter guard Loosen clamping screw 4 1 with Allen wrench included with saw Slide table approx 5 mm forward to swivel It is possible to swivel to both sides in the slot 3 5 Set the desired angle in accordance with scale 3 2 Slide table into rear position for cutting close to edge so that the centering nose 3 1 fits into the opening 3 4 Tighten clamping screw again 4 1 Install chip guard again When returning into the original position basic setting attention must be paid to ensure that the notch 3 3 is pressed to the rear against the cen tering nose 3 1 before tightening the clamping screw 4 1 9 Setting of the swivel stroke To be able to cut different materials with the optimum advance the PS 200 E has an adjustable swivel stroke With the swivel stroke switch 2 1 select the desired setting between 0 and stage III The table on the drive housing 1 5 and the following table provide you with information on the correct swivel stroke setting The setting of the swivel stroke can also be changed with the machine running Recommended settings of the swivel stroke Hard and soft wood 1 3 Joiner plates plywood 1 2 Chipboard woodfibre boards 1 3 Plastics 1 2 Ceramics 0 Aluminium nonferrous metals 0 2 Steel 0 1 10 10 Control of the cutting speed The PS 200 E is equipped with an electronic unit which permits continuous adjustment of the number of strokes from 1 000 2 800 strokes per minute The desired number of strokes is selected with the setting wheel 1 7 between positions 1 and 6 The table on the drive housing 1 5 and the following table provide you with information on the correct number of strokes for the material Recommended number of strokes setting of the setting wheel Hard and softwood joiner plates plywood chipboard 6 Woodfibre board 4 6 Plastics 3 6 Ceramics 3 5 Nonferrous metals 3 5 Steel 2 4 11 Working with the PS 200 E Festool offers various possibilities for working with the PS 200 E a Freely guided along a guide line With its A shape the splinter guard offers a guide help when sawing along a cut b Penetrating cuts without prior drilling For the penetrating cut into wood materials the table must be located in the forward position basic setting see illustration 1 Set the saw against the forward edge of the table Saw with the full number of strokes and swivel stroke setting III into the workpiece illus tration 5 c With Festool FS guide system If the Festool FS Guide System Fig 6 is used you can make straight precise cuts in materials up to 20 mm thick The pendulum jig saw is guided along the guide rail by the guide stop The guide stop can be attached to the left or right on the tool The advantages in practical use are clean saw cuts through precise guidance of the pendulum jig saw secure holding of the guide rails through attachment with special screw clamps Festool special saw blades developed for the purpose are used for sawing with the guide rails Attaching of the guide stop The PS 200 E pendulum jig saw is inserted from the top into the guide stop FS PS 2 6 1 For set ting without play two adjustable guide jaws are located in the guide plate They can be adjusted with a screwdriver 6 2 d With parallel guide The parallel guide can be mounted on both sides of the saw table Slide the holding bow 7 1 into the slot of the saw table from the front Slide the
