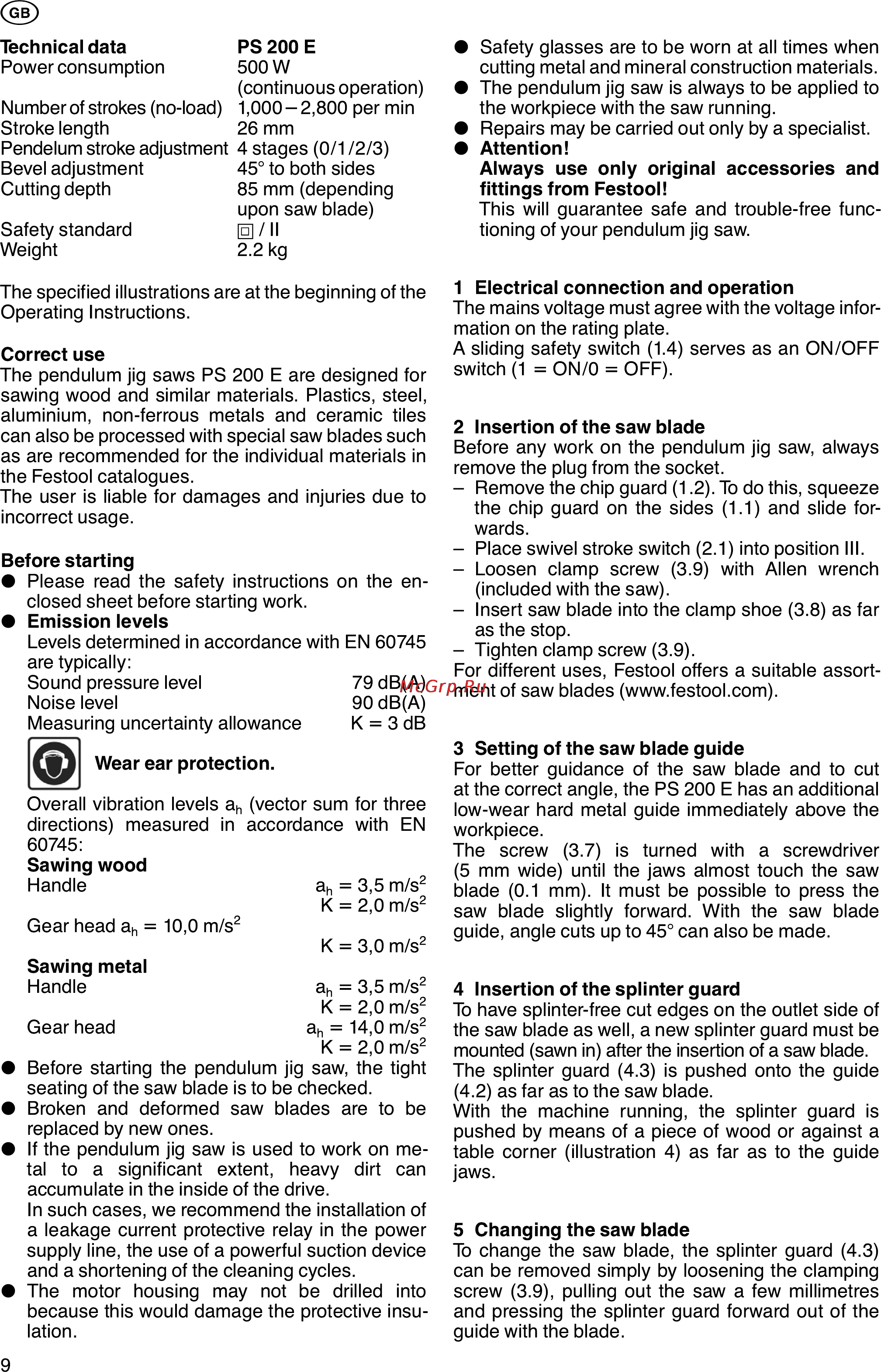

GB Technical data Power consumption PS 200 E 500 W continuous operation Number of strokes no load 1 000 2 800 per min Stroke length 26 mm Pendelum stroke adjustment 4 stages 0 1 2 3 Bevel adjustment 45 to both sides Cutting depth 85 mm depending upon saw blade Safety standard O II Weight 2 2 kg Safety glasses are to be worn at all times when cutting metal and mineral construction materials The pendulum jig saw is always to be applied to the workpiece with the saw running Repairs may be carried out only by a specialist Attention Always use only original accessories and fittings from Festool This will guarantee safe and trouble free func tioning of your pendulum jig saw The specified illustrations are at the beginning of the Operating Instructions 1 Electrical connection and operation The mains voltage must agree with the voltage infor mation on the rating plate A sliding safety switch 1 4 serves as an ON OFF switch 1 ON 0 OFF Correct use The pendulum jig saws PS 200 E are designed for sawing wood and similar materials Plastics steel aluminium non ferrous metals and ceramic tiles can also be processed with special saw blades such as are recommended for the individual materials in the Festool catalogues The user is liable for damages and injuries due to incorrect usage Before starting Please read the safety instructions on the en closed sheet before starting work Emission levels Levels determined in accordance with EN 60745 are typically Sound pressure level 79 dB A Noise level 90 dB A K 3dB Measuring uncertainty allowance Wear ear protection 9 Overall vibration levels ah vector sum for three directions measured in accordance with EN 60745 Sawing wood Handle ah 3 5 m s2 K 2 0 m s2 2 Gear head ah 10 0 m s K 3 0 m s2 Sawing metal Handle ah 3 5 m s2 K 2 0 m s2 Gear head ah 14 0 m s2 K 2 0 m s2 Before starting the pendulum jig saw the tight seating of the saw blade is to be checked Broken and deformed saw blades are to be replaced by new ones If the pendulum jig saw is used to work on me tal to a significant extent heavy dirt can accumulate in the inside of the drive In such cases we recommend the installation of a leakage current protective relay in the power supply line the use of a powerful suction device and a shortening of the cleaning cycles The motor housing may not be drilled into because this would damage the protective insu lation 2 Insertion of the saw blade Before any work on the pendulum jig saw always remove the plug from the socket Remove the chip guard 1 2 To do this squeeze the chip guard on the sides 1 1 and slide for wards Place swivel stroke switch 2 1 into position III Loosen clamp screw 3 9 with Allen wrench included with the saw Insert saw blade into the clamp shoe 3 8 as far as the stop Tighten clamp screw 3 9 For different uses Festool offers a suitable assort ment of saw blades www festool com 3 Setting of the saw blade guide For better guidance of the saw blade and to cut at the correct angle the PS 200 E has an additional low wear hard metal guide immediately above the workpiece The screw 3 7 is turned with a screwdriver 5 mm wide until the jaws almost touch the saw blade 0 1 mm It must be possible to press the saw blade slightly forward With the saw blade guide angle cuts up to 45 can also be made 4 Insertion of the splinter guard To have splinter free cut edges on the outlet side of the saw blade as well a new splinter guard must be mounted sawn in after the insertion of a saw blade The splinter guard 4 3 is pushed onto the guide 4 2 as far as to the saw blade With the machine running the splinter guard is pushed by means of a piece of wood or against a table corner illustration 4 as far as to the guide jaws 5 Changing the saw blade To change the saw blade the splinter guard 4 3 can be removed simply by loosening the clamping screw 3 9 pulling out the saw a few millimetres and pressing the splinter guard forward out of the guide with the blade
