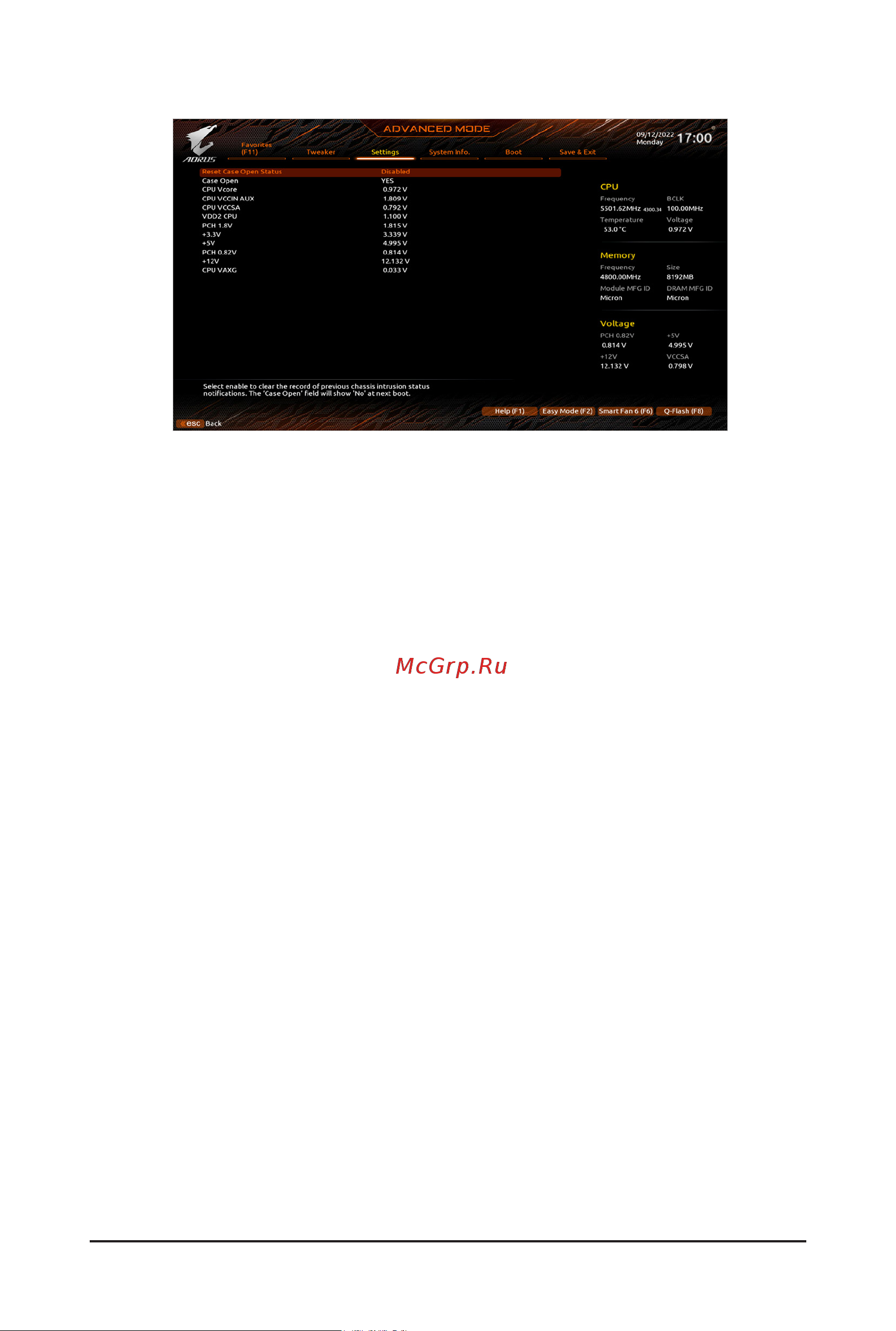

![Gigabyte Z790M AORUS ELITE [24/29] Reset case open status](/views2/1918669/page24/bg18.png)
- 24 -
& Reset Case Open Status
Disabled Keeps or clears the record of previous chassis intrusion status.
Enabled Clears the record of previous chassis intrusion status and the Case Open eld will
show "No" at next boot.
& Case Open
Displays the detection status of the chassis intrusion detection device attached to the motherboard CI
header. If the system chassis cover is removed, this eld will show "Yes", otherwise it will show "No". To
clear the chassis intrusion status record, set Reset Case Open Status to Enabled, save the settings to
the CMOS, and then restart your system.
& CPU Vcore/CPU VCCIN AUX/CPU VCCSA/VDD2 CPU/PCH1.8V/+3.3V/+5V/PCH
0.82V/+12V/CPU VAXG
Displays the current system voltages. The displayed items and values may vary depending on motherboard
chipset and the CPU used.
PC Health Status
