Gigabyte B760 AORUS ELITE AX [6/41] 2 motherboard block diagram

- 6 -

DMI 4.0

PCI Express 4.0 Bus

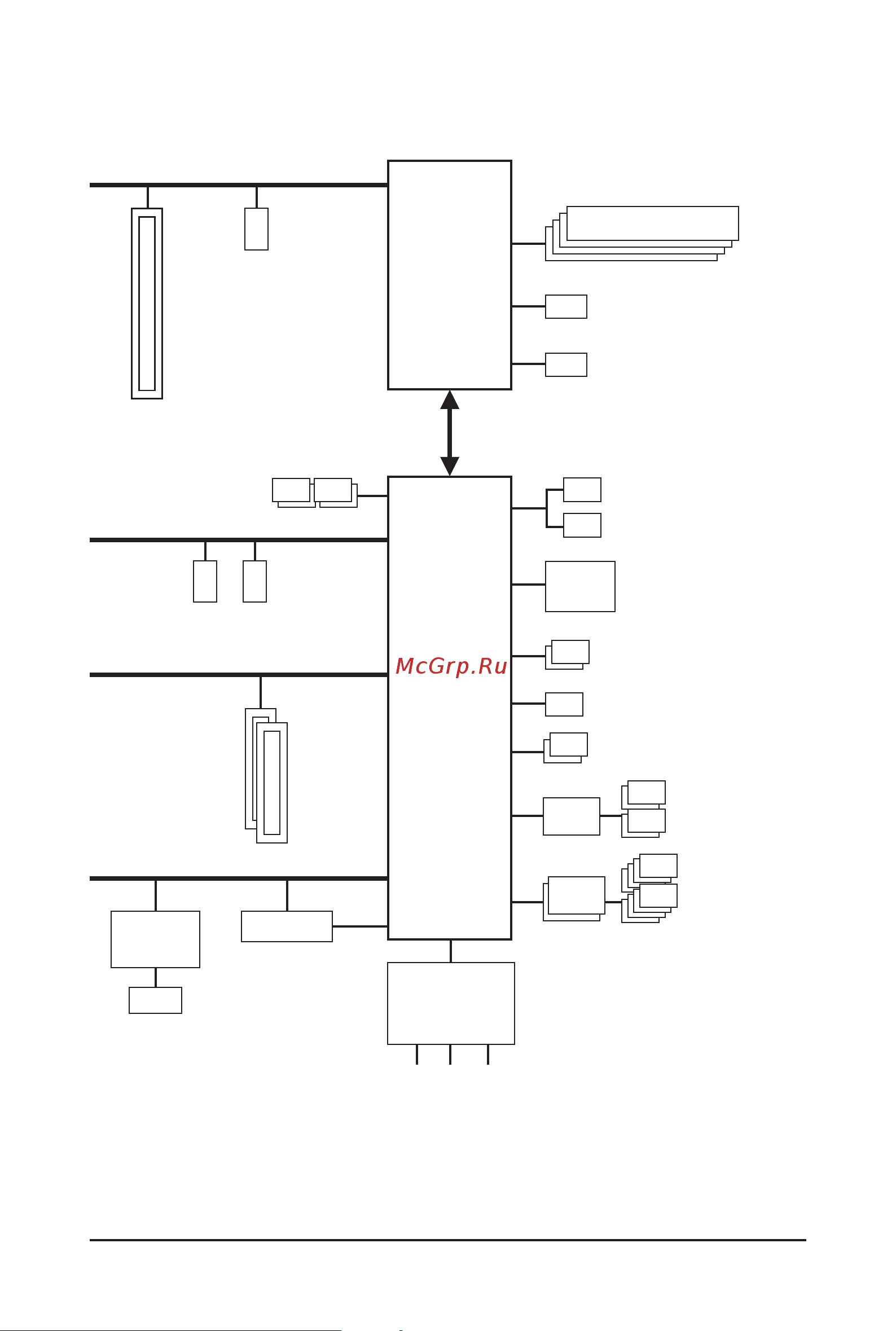

1-2 Motherboard Block Diagram

1 PCI Express x16

x16

LGA1700 CPU

1 M.2 Socket 3

(M2A_CPU)

j Only for B760 AORUS ELITE AX.

k Only for B760 AORUS ELITE.

l Only for B760 AORUS ELITE AX DDR4.

m Only for B760 AORUS ELITE DDR4.

DDI

1 DisplayPort

DDI

1 HDMI

DDR5 5600/5200/4800/4400 MT/sjk

DDR4 3200/3000/2933/2666/2400/2133 MT/slm

eSPI

Bus

SPI

Bus

Line Out

MIC

S/PDIF Out

iTE

Super I/O

1 USB 3.2 Gen 2 Type-A

BIOS

TPM

2 USB Type-C

with USB 3.2 Gen 2 support

CODEC

4 USB 3.2 Gen 1

8 USB 2.0/1.1

USB 3.2

Gen 1 Hub

USB 2.0

Hub

2 USB 3.2 Gen 1

4 SATA 6Gb/s

PCI Express 4.0 Bus

2 M.2 Socket 3

(M2P_SB, M2M_SB)

LAN

RJ45

x1 x1

2 PCI Express x1

Realtek

2.5GbE LAN

PCI Express Bus

x4 x4

PCI Express 3.0 Bus

CNVi

Intel

B760

M.2 WIFIjl
