• B760m gaming p.4
• M only for b760m gaming ac p.4

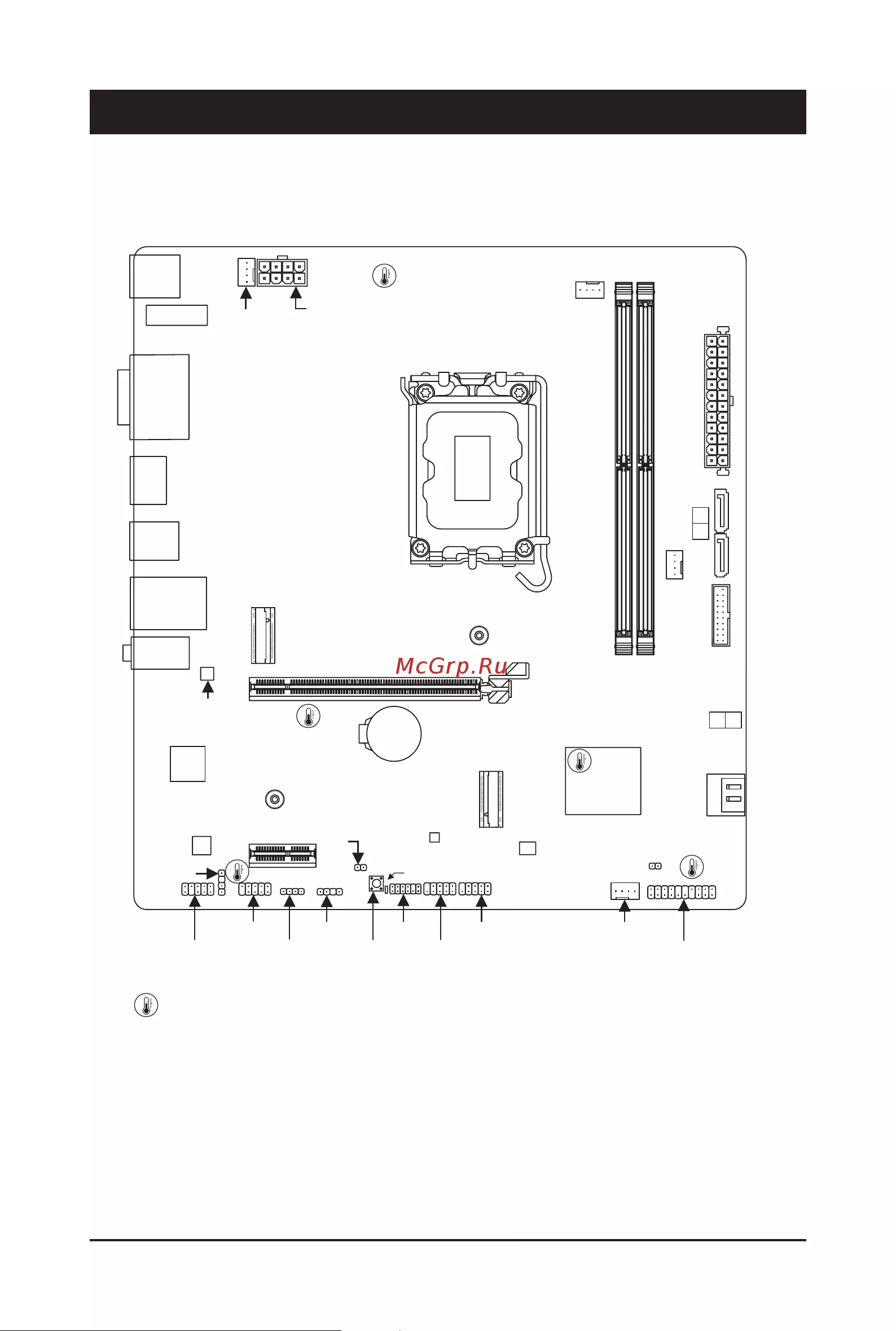

• 1 motherboard layout p.4
• Chapter 1 product introduction p.4
• B760m gaming ac p.4
• B760m gaming ddr4 p.5
• B760m gaming ac ddr4 p.5
• O only for b760m gaming ac ddr4 p.5
• Temperature sensor p.5
• 2 box contents p.6
• 1 installation precautions p.7
• Chapter 2 hardware installation p.7
• 2 productspecifications p.8
• 2 product specifications p.8
• 3 installing the cpu and cpu cooler p.11
• A note the cpu orientation p.11
• Follow the steps below to correctly install the cpu into the motherboard cpu socket p.12
• Do not force to engage the cpu socket locking lever when the cpu is not installed correctly as this would damage the cpu and cpu socket p.12
• B installing the cpu p.12
• C installing the cpu cooler p.13
• Be sure to install the cpu cooler after installing the cpu actual installation process may differ depending the cpu cooler to be used refer to the user s manual for your cpu cooler p.13
• 4 installing the memory p.14
• Dualchannelmemoryconfiguration p.14
• 5 installing an expansion card p.15
• D sub port p.16
• Usb 2 1 port p.16
• Hdmi port p.16
• Displayport p.16
• 6 back panel connectors p.16
• Usb 2 1 port q flash plus port p.16
• Sma antenna connectors 1t1r mo p.16
• Ps 2 keyboard mouse port p.16
• Line in rear speaker out blue p.17
• Usb type p.17
• Usb 3 gen 1 port p.17
• Rj 45 lan port p.17
• Port with usb 3 gen 1 support p.17
• Mic in center subwoofer speaker out pink p.17
• Line out front speaker out green p.17
• 7 internal connectors p.18
• 2 atx_12v_2x4 atx 2x4 12v power connector and 2x12 main power connector p.19
• With the use of the power connector the power supply can supply enough stable power to all the components on the motherboard before connecting the power connector first make sure the power supply is turned off and all devices are properly installed the power connector possesses a foolproof design connect the power supply cable to the power connector in the correct orientation p.19
• To meet expansion requirements it is recommended that a power supply that can withstand high power consumption be used 500w or greater if a power supply is used that does not provide the required power the result can lead to an unstable or unbootable system p.19
• The 12v power connector mainly supplies power to the cpu if the 12v power connector is not connected the 12v power connector mainly supplies power to the cpu if the 12v power connector is not connected the computer will not start p.19
• 4 cpu_fan sys_fan1 2 3 fan headers p.20
• Be sure to connect fan cables to the fan headers to prevent your cpu and system from p.20
• These fan headers are not configuration jumper blocks do not place a jumper cap on the headers p.20
• Sata3 4 5 6 7 sata 6gb s connectors p.20
• To enable hot plugging for the sata ports please navigate to the bios setup page of gigabyte s website and search for sata configuration for more information p.20
• The sata connectors conform to sata 6gb s standard and are compatible with sata 3gb s and sata 1 gb s standard each sata connector supports a single sata device the inte p.20
• Overheating overheating may result in damage to the cpu or the system may hang p.20
• Chipset supports raid 0 raid 1 raid 5 and raid 10 please navigate to the configuring a raid set page of gigabyte s website for instructions on configuring a raid array p.20
• All fan headers on this motherboard are 4 pin most fan headers possess a foolproof insertion design when connecting a fan cable be sure to connect it in the correct orientation the black connector wire is the ground wire the speed control function requires the use of a fan with fan speed control design for optimum heat dissipation it is recommended that a system fan be installed inside the chassis p.20
• D_led1 addressable led strip header p.21
• No pin p.21
• For how to turn on off the lights of the led strip please navigate to the unique features page of gigabyte s website p.21
• Connect your rgb led strip to the header the power pin marked with a triangle on the plug of the led strip must be connected to pin 1 12v of this header incorrect connection may lead to the damage of the led strip p.21
• Led_c1 rgb led strip header p.21
• Connect your addressable led strip to the header the power pin marked with a triangle on the plug of the led strip must be connected to pin 1 of the addressable led strip header incorrect connection may lead to the damage of the led strip p.21
• Before installing the devices be sure to turn off the devices and your computer unplug the power cord from the power outlet to prevent damage to the devices p.21
• The header can be used to connect a standard 5050 rgb led strip 12v g r b with maximum power rating of 2a 12v and maximum length of 2m p.21
• The header can be used to connect a standard 5050 addressable led strip with maximum power rating of 5a 5v and maximum number of 1000 leds p.21
• Pin no definition p.21
• Types of m ssds supported by each m connector p.22
• The m connectors on the motherboard support only m pcie ssds p.22
• M2p_sb a a p.22
• M2a_cpu m2p_sb m socket 3 connectors p.22
• M2a_cpu a a p.22
• M pcie x4 ssd m pcie x2 ssd m sata ssd p.22
• Follow the steps below to correctly install an m ssd in the m connector step 1 pull the clip s tab up and out of the mounting hole slide the m ssd into the connector at an angle step 2 press the m ssd down and then secure it by pressing the clip s tab into the mounting hole p.22
• F_panel front panel header p.23
• Connects to the power status indicator on the chassis front panel the led is on when the system is operating the led is off when the system is in s3 s4 sleep state or powered off s5 p.23
• Connect the power switch reset switch speaker chassis intrusion switch sensor and system status indicator on the chassis to this header according to the pin assignments below note the positive and negative pins before connecting the cables p.23
• Nc no connection p.23
• Hd hard drive activity led connects to the hard drive activity led on the chassis front panel the led is on when the hard drive is reading or writing data p.23
• Ci chassis intrusion header connects to the chassis intrusion switch sensor on the chassis that can detect if the chassis cover has been removed this function requires a chassis with a chassis intrusion switch sensor p.23
• The front panel design may differ by chassis a front panel module mainly consists of power switch reset switch power led hard drive activity led speaker and etc when connecting your chassis front panel module to this header make sure the wire assignments and the pin assignments are matched correctly p.23
• System status led p.23
• Speak speaker connects to the speaker on the chassis front panel the system reports system startup status by issuing a beep code one single short beep will be heard if no problem is detected at system startup p.23
• S3 s4 s5 off p.23
• Res reset switch connects to the reset switch on the chassis front panel press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart p.23
• Pw power switch connects to the power switch on the chassis front panel you may configure the way to turn off your system using the power switch please navigate to the bios setup page of gigabyte s website and search for soft off by pwr bttn for more information p.23
• Pled pwr_led power led p.23
• 5vdual p.24
• Sense_send p.24
• Pin no definition p.24
• No pin p.24
• Mic detection p.24
• Head phone r p.24
• Head phone l p.24
• Head phone detection p.24
• F_audio front panel audio header p.24
• This header supports s pdif digital output which allows you to connect a s pdif digital audio cable to output digital audio from your motherboard to the supported audio devices for information about connecting the digital audio cable carefully read the manual for your audio devices p.24
• The front panel audio header supports high definition audio hd you may connect your chassis front panel audio module to this header make sure the wire assignments of the module connector match the pin assignments of the motherboard header incorrect connection between the module connector and the motherboard header will make the device unable to work or even damage it p.24
• Spdifo p.24
• Spdif_o s pdif out header p.24
• Some chassis provide a front panel audio module that has separated connectors on each wire instead of a single plug for information about connecting the front panel audio module that has different wire assignments please contact the chassis manufacturer p.24
• Usb dx p.25
• Ssrx1 12 d2 p.25
• Power 5v p.25
• Pin no definition pin no definition p.25
• Pin no definition p.25
• No pin p.25
• Nc 20 no pin p.25
• Gnd 17 ssrx2 p.25
• Vbus 11 d2 p.25
• Gnd 14 sstx2 p.25
• Usb dy p.25
• F_usb1 f_usb2 usb 2 1 headers p.25
• F_u32 usb 3 gen 1 header p.25
• D1 19 vbus p.25
• The headers conform to usb 2 1 specification each usb header can provide two usb ports via an optional usb bracket for purchasing the optional usb bracket please contact the local dealer p.25
• D1 18 ssrx2 p.25
• The header conforms to usb 3 gen 1 and usb 2 specification and can provide two usb ports for purchasing the optional 3 front panel that provides two usb 3 gen 1 ports please contact the local dealer p.25
• Sstx1 16 gnd p.25
• Sstx1 15 sstx2 p.25
• Ssrx1 13 gnd p.25
• Prior to installing the usb bracket be sure to turn off your computer and unplug the power cord from the power outlet to prevent damage to the usb bracket p.25
• Power 3 v p.26
• Pin no definition p.26
• No pin p.26
• Data output p.26
• Data input p.26
• Com serial port header p.26
• Chip select p.26
• You may connect an spi tpm trusted platform module to this header p.26
• The com header can provide one serial port via an optional com port cable for purchasing the optional com port cable please contact the local dealer p.26
• Spi_tpm trusted platform module header p.26
• Clr_cmos clear cmos jumper p.27
• Bat battery p.27
• Rst reset jumper p.28
• Qflash_plus q flash plus button p.28
