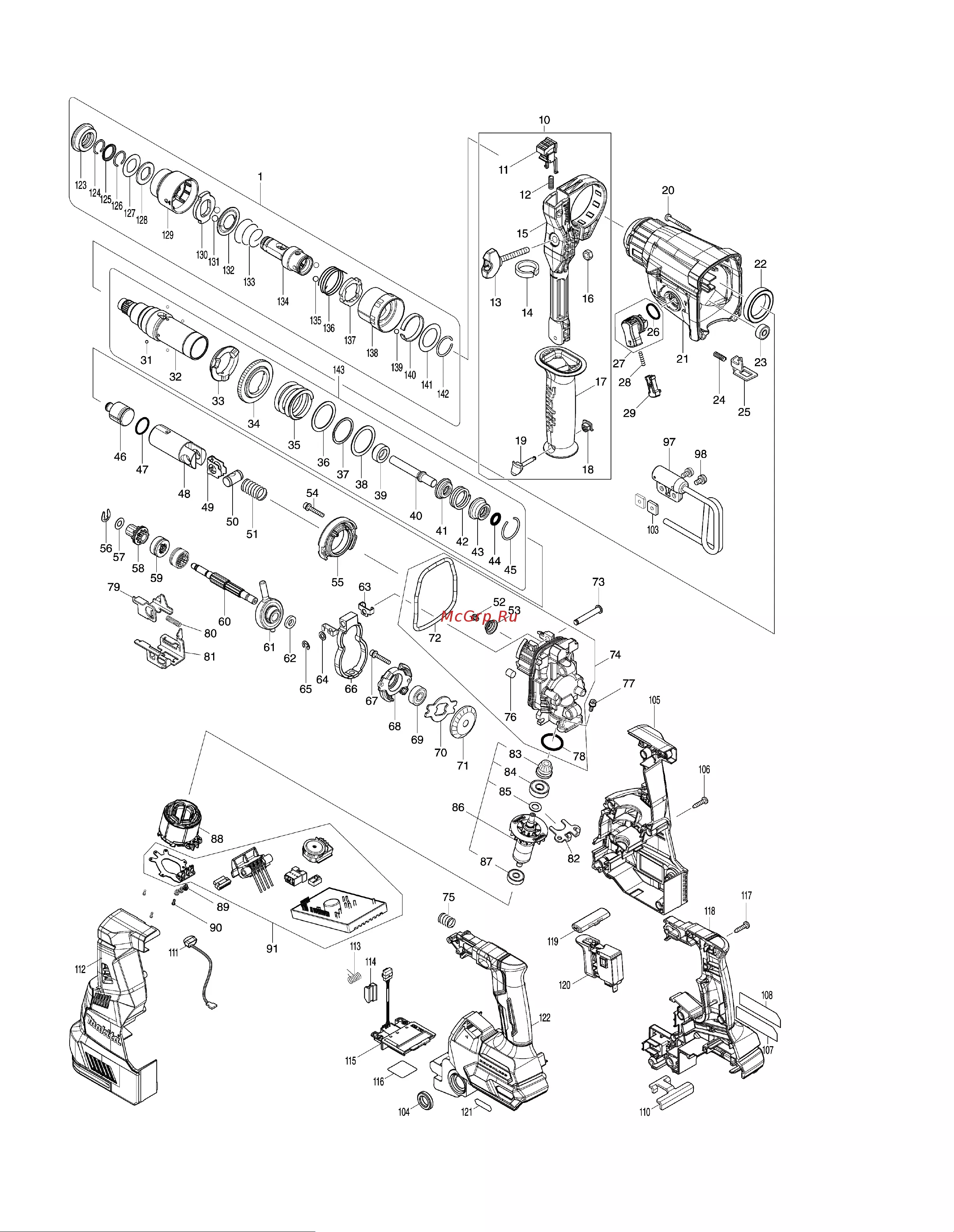

Model No.HR004G 28MM CRDLS COMBINATION HAMMER
Item Parts No. Description I/C Qty New/Old Opt. 1 Opt. 2 Note
001 199138-7 TOOL HOLDER SET 1
󳢢󳢢󳢢󳢢D10 INC. 123-142
010 126882-3 GRIP ASSEMBLY 1
󳢢󳢢󳢢󳢢D10 INC. 11-19
011 144959-2 LOCK BUTTON COMPLETE 1
012 233360-7 COMPRESSION SPRING 4 1
013 265625-9 THUMB SCREW M6X50 1
014 422258-5 SPONGE SHEET 1
015 458355-1 SIDE HANDLE BASE 1
016 931302-2 HEX. NUT M6 1
017 458357-7 GRIP 36 1
018 422255-1 CAP 1
019 161838-9 FIX PIN 1
020 266351-3 TAPPING SCREW 4X35 4
021 144965-7 GEAR HOUSING COMPLETE 1
󳢢󳢢󳢢󳢢C10 213345-9 OIL SEAL 25 1
󳢢󳢢󳢢󳢢C20 331890-3 CUP SLEEVE 1
022 211294-4 BALL BEARING 6806LLU 1
023 211012-0 BALL BEARING 606ZZ 1
024 233360-7 COMPRESSION SPRING 4 1
025 347228-2 LOCK PLATE 1
026 213278-8 O RING 17 1
027 135961-6 CHANGE LEVER ASSY 1
󳢢󳢢󳢢󳢢D10 INC. 26
028 234264-6 COMPRESSION SPRING 3 1
029 457709-9 LOCK BUTTON 1
031 216019-1 STEEL BALL 3 4
032 144966-5
TOOL HOLDER GUIDE
COMPLETE
1
󳢢󳢢󳢢󳢢C10 213344-1 OIL SEAL 9 1
033 332139-4 DRIVING FLANGE 1
034 227360-7 SPUR GEAR 51 1
035 234148-8 COMPRESSION SPRING 31 1
036 267153-0 FLAT WASHER 30 1
037 257932-4 SPIRO LOCK WASHER 30 1
038 267153-0 FLAT WASHER 30 1
039 325783-4 SLEEVE 9B 1
040 325791-5 IMPACT BOLT B 1
041 325792-3 WASHER 10 1
042 234149-6 COMPRESSION SPRING 20 1
043 325793-1 O-RING CASE B 1
044 213073-6 O RING 9 1
045 233979-2 RING SPRING 28 1
Please order the parts with part number. Print Date 22/6/2020
