Copyright
© 2022 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specications and features in this manual may be made by GIGABYTE without
prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or
published in any form or by any means without GIGABYTE's prior written permission.
In order to assist in the use of this product, carefully read the User's Manual.
For product-related information, check on our website at: https://www.gigabyte.com

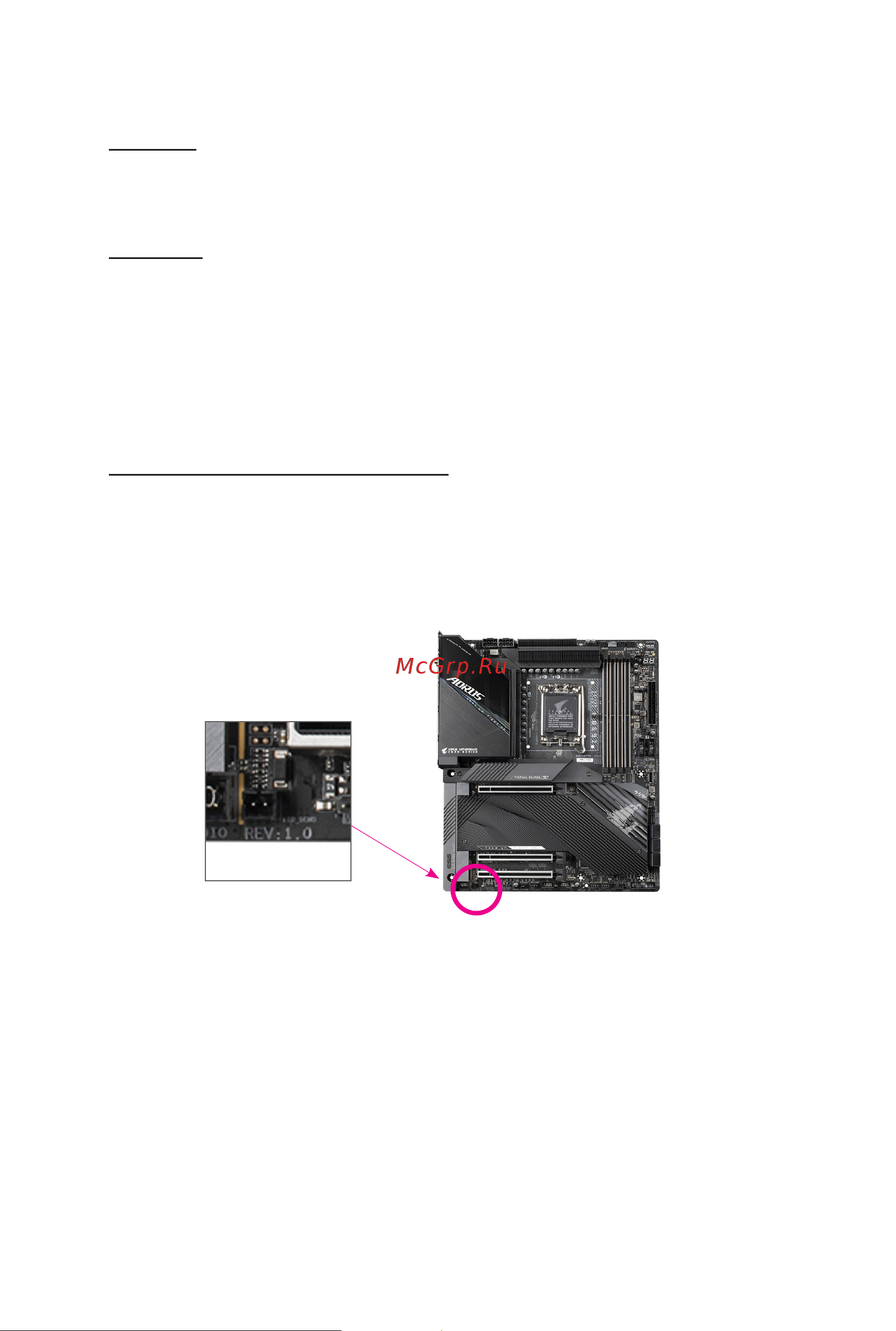

Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"
means the revision of the motherboard is 1.0. Check your motherboard revision before updating
motherboard BIOS, drivers, or when looking for technical information.
Example:
Содержание
- B660 a elite ax ddr4 1
- B660 aorus elite ax ddr4 1
- B660 aorus elite ddr4 1
- User s manual 1
- Copyright 2
- Disclaimer 2
- Identifying your motherboard revision 2
- Chapter 1 product introduction 3
- Chapter 2 hardware installation 3
- Chapter 3 bios setup 1 3
- Chapter 4 installing the operating system and drivers 3 3
- Chapter 5 appendix 5 3
- Table of contents 3
- 1 motherboard layout 4
- B660 aorus elite ax ddr4 4
- B660 aorus elite ddr4 4
- Chapter 1 product introduction 4
- J only for b660 aorus elite ax ddr4 4
- 2 motherboard block diagram 5
- Cpu clk 80 800 mhz 5
- J only for b660 aorus elite ax ddr4 5
- Lga1700 cpu 5
- Pci express 3 bus 5
- Pci express 4 bus 5
- 3 box contents 6
- 1 installation precautions 7
- Chapter 2 hardware installation 7
- 2 product specifications 8
- 2 productspecifications 8
- 3 installing the cpu and cpu cooler 12
- A note the cpu orientation 12
- B installing the cpu 13
- Do not force to engage the cpu socket locking lever when the cpu is not installed correctly as this would damage the cpu and cpu socket 13
- Follow the steps below to correctly install the cpu into the motherboard cpu socket 13
- Be sure to install the cpu cooler after installing the cpu actual installation process may differ depending the cpu cooler to be used refer to the user s manual for your cpu cooler 14
- C installing the cpu cooler 14
- 4 installing the memory 15
- Dualchannelmemoryconfiguration 15
- 5 installing an expansion card 16
- 6 back panel connectors 17
- Displayport 17
- Hdmi 2 port 17
- Port with usb 3 gen 2 support 17
- Sma antenna connectors 2t2r j 17
- Usb 2 1 port 17
- Usb 3 gen 1 port 17
- Usb 3 gen 2 type a port red q flash plus port 17
- Usb type 17
- Line out front speaker out 18
- Mic in rear speaker out 18
- Optical s pdif out connector 18
- Rj 45 lan port 18
- 7 internal connectors 19
- 2 atx_12v_2x2 atx_12v_2x4 atx 2x2 2x4 12v power connectors and 2x12 main 20
- Power connector 20
- The 12v power connector mainly supplies power to the cpu if the 12v power connector is not connected the 12v power connector mainly supplies power to the cpu if the 12v power connector is not connected the computer will not start 20
- To meet expansion requirements it is recommended that a power supply that can withstand high power consumption be used 500w or greater if a power supply is used that does not provide the required power the result can lead to an unstable or unbootable system 20
- With the use of the power connector the power supply can supply enough stable power to all the components on the motherboard before connecting the power connector first make sure the power supply is turned off and all devices are properly installed the power connector possesses a foolproof design connect the power supply cable to the power connector in the correct orientation 20
- 4 cpu_fan sys_fan1 2 3 fan headers 21
- All fan headers on this motherboard are 4 pin most fan headers possess a foolproof insertion design when connecting a fan cable be sure to connect it in the correct orientation the black connector wire is the ground wire the speed control function requires the use of a fan with fan speed control design for optimum heat dissipation it is recommended that a system fan be installed inside the chassis 21
- Be sure to connect fan cables to the fan headers to prevent your cpu and system from 21
- Overheating overheating may result in damage to the cpu or the system may hang 21
- Sys_fan4_pump system fan water cooling pump header 21
- The fan pump header are 4 pin most fan headers possess a foolproof insertion design when connecting a fan cable be sure to connect it in the correct orientation the black connector wire is the ground wire the speed control function requires the use of a fan with fan speed control design for optimum heat dissipation it is recommended that a system fan be installed inside the chassis the header also provides speed control for a water cooling pump please navigate to the bios setup page of gigabyte s website and search for smart fan 6 for more information 21
- These fan headers are not configuration jumper blocks do not place a jumper cap on the headers 21
- Before installing the devices be sure to turn off the devices and your computer unplug the power cord from the power outlet to prevent damage to the devices 22
- Connect your rgb led strip to the header the power pin marked with a triangle on the plug of the led strip must be connected to pin 1 12v of this header incorrect connection may lead to the damage of the led strip 22
- Cpu_opt water cooling cpu fan header 22
- For how to turn on off the lights of the led strip please navigate to the unique features page of gigabyte s website 22
- Led_c1 led_c2 rgb led strip headers 22
- The fan header is 4 pin and possesses a foolproof insertion design most fan headers possess a foolproof insertion design when connecting a fan cable be sure to connect it in the correct orientation the black connector wire is the ground wire the speed control function requires the use of a fan with fan speed control design 22
- The headers can be used to connect a standard 5050 rgb led strip 12v g r b with maximum power rating of 2a 12v and maximum length of 2m 22
- Before installing the devices be sure to turn off the devices and your computer unplug the power cord from the power outlet to prevent damage to the devices 23
- Chipset supports raid 0 raid 1 raid 5 and raid 10 please navigate to the configuring a raid set page of gigabyte s website for instructions on configuring a raid array 23
- Connect your addressable led strip to the header the power pin marked with a triangle on the plug of the led strip must be connected to pin 1 of the addressable led strip header incorrect connection may lead to the damage of the led strip 23
- D_led1 d_led2 addressable led strip headers 23
- For how to turn on off the lights of the led strip please navigate to the unique features page of gigabyte s website 23
- No pin 23
- Pin no definition 23
- Sata3 4 5 6 7 sata 6gb s connectors 23
- The headers can be used to connect a standard 5050 addressable led strip with maximum power rating of 5a 5v and maximum number of 1000 leds 23
- The sata connectors conform to sata 6gb s standard and are compatible with sata 3gb s and sata 1 gb s standard each sata connector supports a single sata device the inte 23
- To enable hot plugging for the sata ports please navigate to the bios setup page of gigabyte s website and search for sata configuration for more information 23
- Follow the steps below to correctly install an m ssd in the m connector step 1 locate the m connector where you will install the m ssd use a screwdriver to unfasten the screw on the heatsink and then remove the heatsink step 2 locate the proper mounting hole based on the length of your m ssd drive if needed move the standoff to the desired mounting hole insert the m ssd into the m connector at an angle step 3 press the m ssd down and then use the included screw to secure it in the connector remove the protective film from the bottom of the heatsink then replace the heatsink and secure it to the original hole 24
- M pcie x4 ssd m pcie x2 ssd m sata ssd 24
- M2a_cpu a a 24
- M2a_cpu m2p_sb m2m_sb m socket 3 connectors 24
- M2m_sb a a 24
- M2p_sb a a 24
- The m connectors on the motherboard support only m pcie ssds 24
- Types of m ssds supported by each m connector 24
- F_panel front panel header 25
- B s_ b 26
- Cc1 18 d 26
- F_audio front panel audio header 26
- F_u32c usb type 26
- F_usb3 f 26
- F_usb3 f_usb30 3 26
- F_usb30 f_ u 26
- Gnd 14 gnd 26
- Head phone detection 26
- Head phone l 26
- Head phone r 26
- Header with usb 3 gen 2 support 26
- Mic detection 26
- No pin 26
- Pin no definition 26
- Pin no definition pin no definition 26
- Rx1 15 rx2 26
- Rx1 16 rx2 26
- S 3 b s s s 26
- S b_ b 26
- Sbu1 19 d 26
- Sbu2 20 cc2 26
- Sense_send 26
- Some chassis provide a front panel audio module that has separated connectors on each wire instead of a single plug for information about connecting the front panel audio module that has different wire assignments please contact the chassis manufacturer 26
- The front panel audio header supports high definition audio hd you may connect your chassis front panel audio module to this header make sure the wire assignments of the module connector match the pin assignments of the motherboard header incorrect connection between the module connector and the motherboard header will make the device unable to work or even damage it 26
- The header conforms to usb 3 gen 2 specification and can provide one usb port 26
- Tx1 12 tx2 26
- Tx1 13 tx2 26
- Usb 0_ b 26
- Vbus 11 vbus 26
- Vbus 17 gnd 26
- _ s f_ 26
- _ s s_ _ b 26
- _ u _ b 26
- D1 18 ssrx2 27
- D1 19 vbus 27
- Do not plug the ieee 1394 bracket 2x5 pin cable into the usb 2 1 header prior to installing the usb bracket be sure to turn off your computer and unplug the power cord 27
- F_u32 usb 3 gen 1 header 27
- F_usb1 f_usb2 usb 2 1 headers 27
- From the power outlet to prevent damage to the usb bracket 27
- Gnd 14 sstx2 27
- Gnd 17 ssrx2 27
- Nc 20 no pin 27
- No pin 27
- Pin no definition 27
- Pin no definition pin no definition 27
- Power 5v 27
- Ssrx1 12 d2 27
- Ssrx1 13 gnd 27
- Sstx1 15 sstx2 27
- Sstx1 16 gnd 27
- The header conforms to usb 3 gen 1 and usb 2 specification and can provide two usb ports for purchasing the optional 3 front panel that provides two usb 3 gen 1 ports please contact the local dealer 27
- The headers conform to usb 2 1 specification each usb header can provide two usb ports via an optional usb bracket for purchasing the optional usb bracket please contact the local dealer 27
- Usb dx 27
- Usb dy 27
- Vbus 11 d2 27
- Always turn off your computer and unplug the power cord before replacing the battery replace the battery with an equivalent one damage to your devices may occur if the battery is 28
- Bat battery 28
- Chip select 28
- Contact the place of purchase or local dealer if you are not able to replace the battery by yourself 28
- Data input 28
- Data output 28
- No pin 28
- Of the battery the positive side should face up 28
- Or uncertain about the battery model 28
- Or use a metal object like a screwdriver to touch the positive and negative terminals of the battery holder making them short for 5 seconds 28
- Pin no definition 28
- Power 3 v 28
- Replace the battery 4 plug in the power cord and restart your computer 28
- Replaced with an incorrect model 28
- Spi_tpm trusted platform module header 28
- The battery provides power to keep the values such as bios configurations date and time information in the cmos when the computer is turned off replace the battery when the battery voltage drops to a low level or the cmos values may not be accurate or may be lost 28
- Used batteries must be handled in accordance with local environmental regulations 28
- When installing the battery note the orientation of the positive side and the negative side 28
- You may clear the cmos values by removing the battery 1 turn off your computer and unplug the power cord 2 gently remove the battery from the battery holder and wait for one minute 28
- You may connect an spi tpm trusted platform module to this header 28
- Clr_cmos clear cmos jumper 29
- Rst_sw rst reset button reset jumper 29
- Cpu cpu status led dram memory status led vga graphics card status led boot operating system status led 30
- Cpu dram vga boot status leds 30
- Q flash plus allows you to update the bios when your system is off s5 shutdown state save the latest bios on a usb thumb drive and plug it into the dedicated port and then you can now flash the bios automatically by simply pressing the q flash plus button the qfled will flash when the bios matching and flashing activities start and will stop flashing when the main bios flashing is complete 30
- Qflash_plus q flash plus button 30
- The status leds show whether the cpu memory graphics card and operating system are working properly after system power on if the cpu dram vga led is on that means the corresponding device is not working normally if the boot led is on that means you haven t entered the operating system yet 30
- To enable the q flash plus function please navigate to the unique features page of gigabyte s website for more information 30
- Chapter 3 bios setup 31
- Function keys 32
- Startup screen 32
- 1 operating system installation 33
- Chapter 4 installing the operating system and drivers 33
- 2 drivers installation 34
- 1 configuring a raid set 35
- 1 configuringaraidset 35
- Before you begin please prepare the following items 35
- Chapter 5 appendix 35
- Raid levels 35
- Regulatory notices 36
