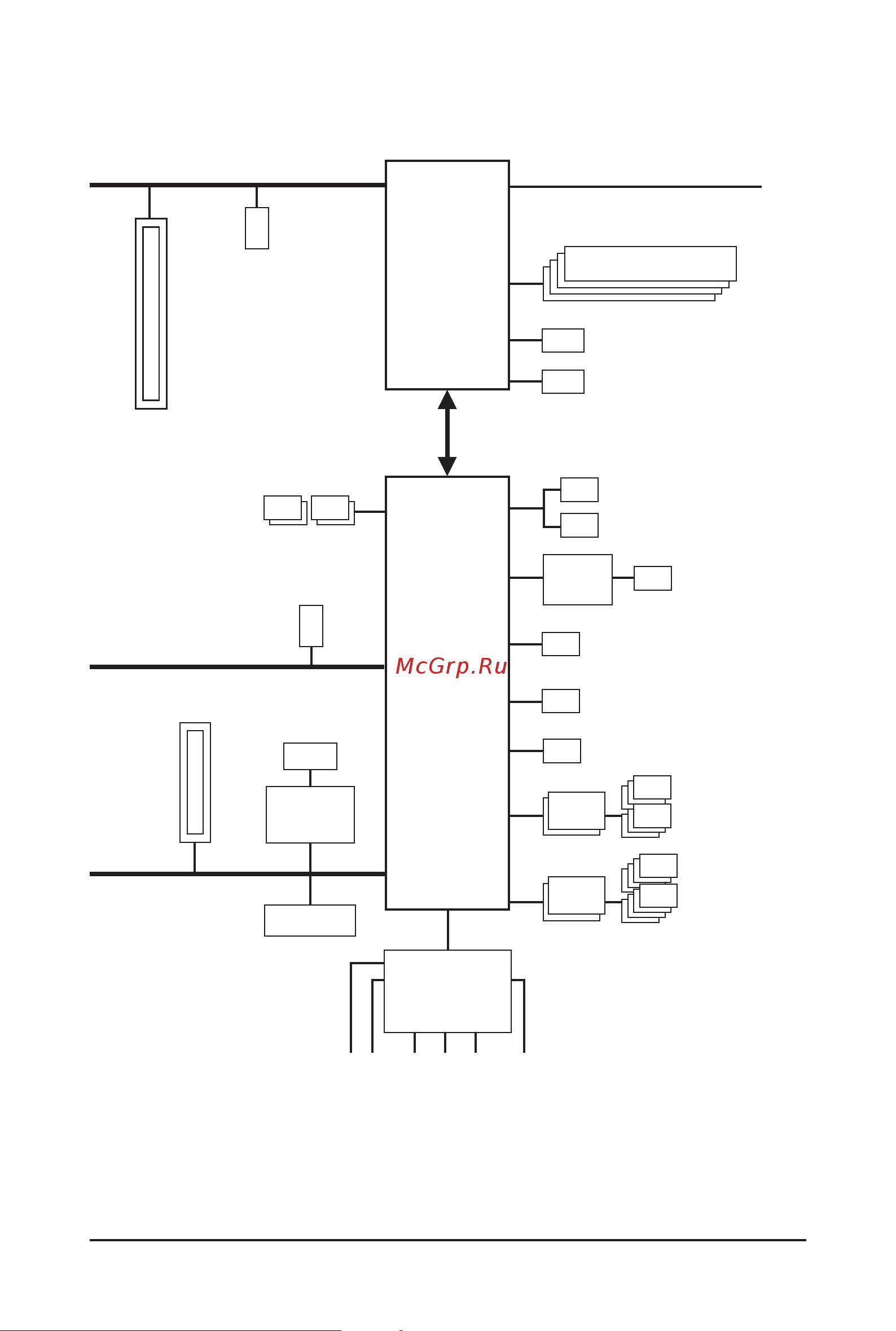

1-2 Motherboard Block Diagram
CPU CLK+/- (80~800 MHz)
DMI 4.0
eSPI
Bus
SPI
Bus
iTE
®
Super I/O
6 USB 3.2 Gen 1
8 USB 2.0/1.1
1 USB 3.2 Gen 2 Type-A
Intel
®
B660
DDI
DisplayPort
USB 3.2
Gen 1 Hub
BIOS
TPM
USB 2.0
Hub
LGA1700 CPU
PCI Express 4.0 Bus
LAN
RJ45
PCI Express 3.0 Bus
x4 x1
PCI Express x4
Intel
®
2.5GbE LAN
DDI
HDMI 2.0
1 M.2 Socket 3
(M2P_SB)
Center/Subwoofer
Speaker Out
Line Out
MIC
Line In
S/PDIF Out
Rear Speaker Out
CODEC
1 USB Type-C
®
,
with USB 3.2 Gen 2x2 support
1 USB Type-C
®
,
with USB 3.2 Gen 2 support
COM
x1
M.2 WIFIjl
DDR5 4800/4000 MHzjk
DDR4 3200/3000/2933/2666/2400/2133 MHzlm
4 SATA 6Gb/s
(SATA3 4~7)
PCI Express 4.0 Bus
1 PCI Express x16
x16
1 M.2 Socket 3
(M2A_CPU)
j Only for B660M AORUS PRO AX. k Only for B660M AORUS PRO.
l Only for B660M A PRO AX DDR4. m Only for B660M AORUS PRO DDR4.
