Gigabyte B660M D2H DDR4 [31/34] 2 drivers installation
![Gigabyte B660M D2H DDR4 [31/34] 2 drivers installation](/views2/1919671/page31/bg1f.png)
- 31 -
Please visit GIGABYTE's website for
more software information.
Please visit GIGABYTE's website for
more troubleshooting information.

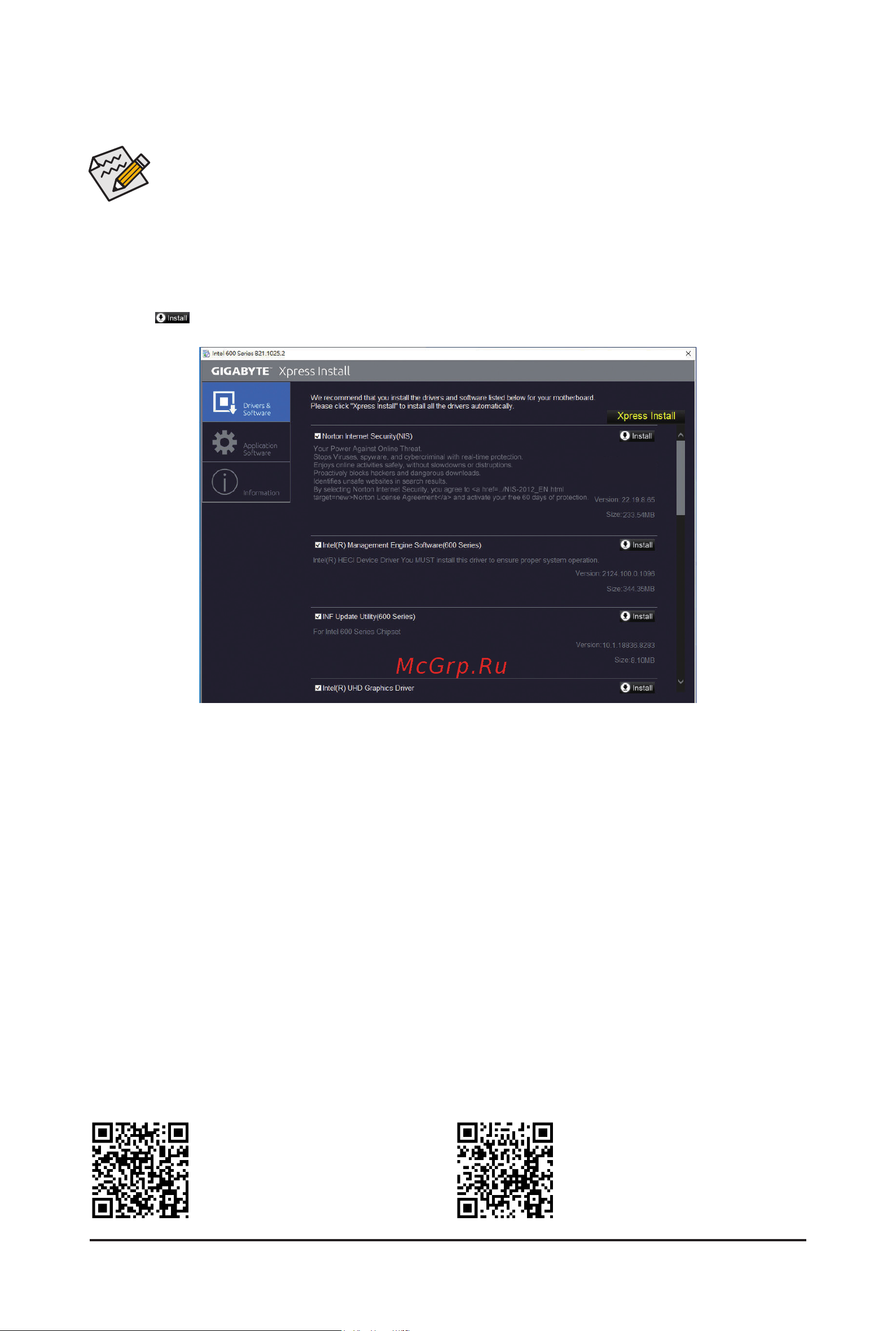

After installing the operating system, insert the motherboard driver disc into your optical drive. Click
on the message "Tap to choose what happens with this disc" on the top-right corner of the screen
and select "Run Run.exe." (Or go to My Computer, double-click the optical drive and execute the
Run.exe program.)
"Xpress Install" will automatically scan your system and then list all of the drivers that are recommended to
install. You can click the Xpress Install button and "Xpress Install" will install all of the selected drivers. Or click
the arrow icon to individually install the drivers you need.
4-2 Drivers Installation
