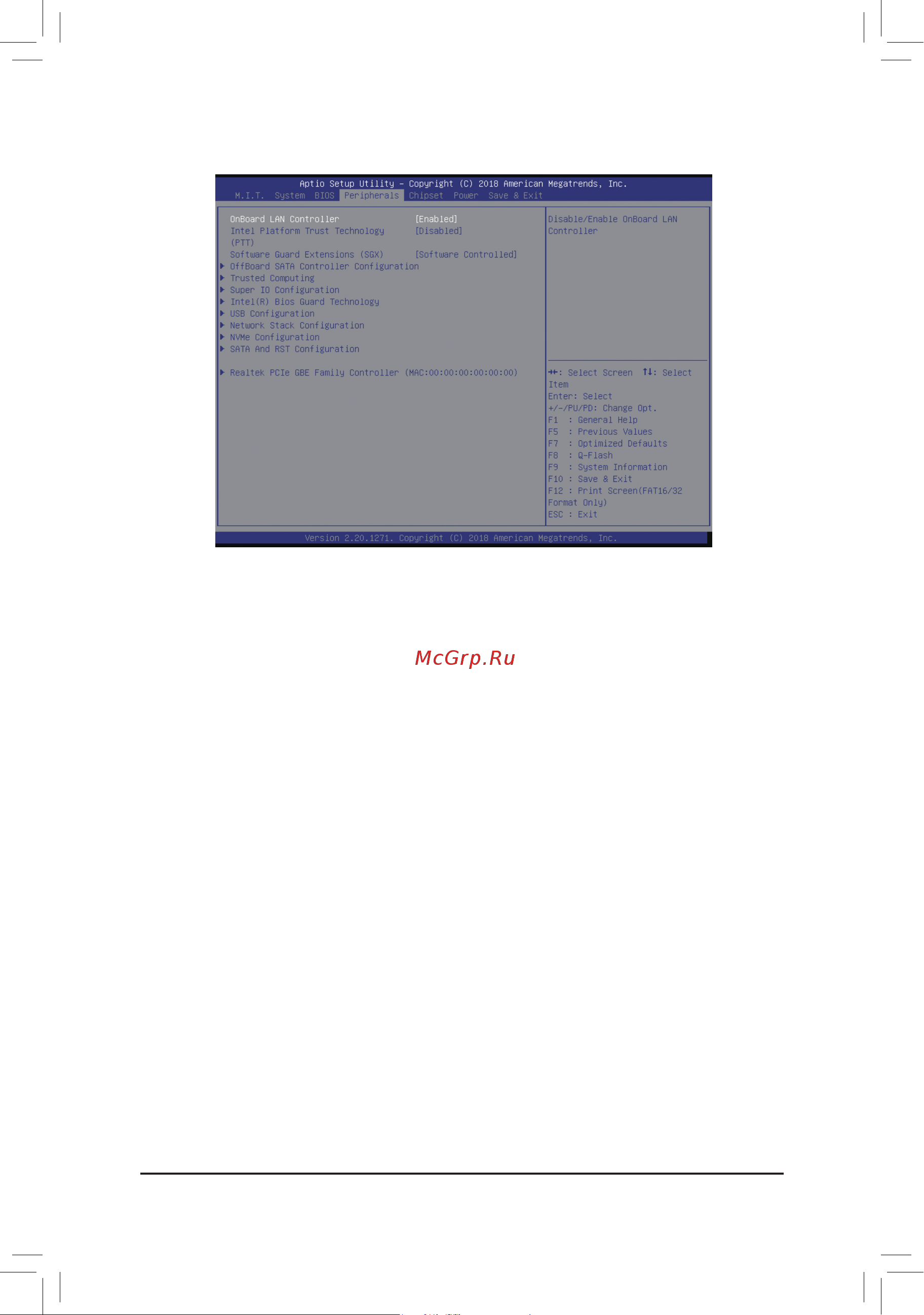

2-6 Peripherals
& OnBoard LAN Controller
Enables or disables the onboard LAN function. (Default: Enabled)
If you wish to install a 3rd party add-in network card instead of using the onboard LAN, set this item to
Disabled.
& Intel Platform Trust Technology (PTT)
Enables or disables Intel
®
PTT Technology. (Default: Disabled)
& Software Guard Extensions (SGX)
Enables or disables the Intel
®
Software Guard Extensions technology. This feature allows legal software
to operate in a safe environment and protects the software against attacks from malicious software. The
Software Controlled option allows you to enable or disable this feature with an Intel-provided application.
(Default: Software Controlled)
` OffBoardSATAControllerConguration
Displays information on your M.2 PCIe SSD if installed.
` Trusted Computing
Enables or disables Trusted Platform Module (TPM).
` SuperIOConguration
& Serial Port 1/2
Enables or disables the onboard serial port.
` Intel(R) Bios Guard Technology
Enables or disables the Intel
®
BIOS Guard feature, which protects the BIOS from malicious attacks.
- 31 -
