PRIME Z690M-PLUS D4
1-5
Chapter 1

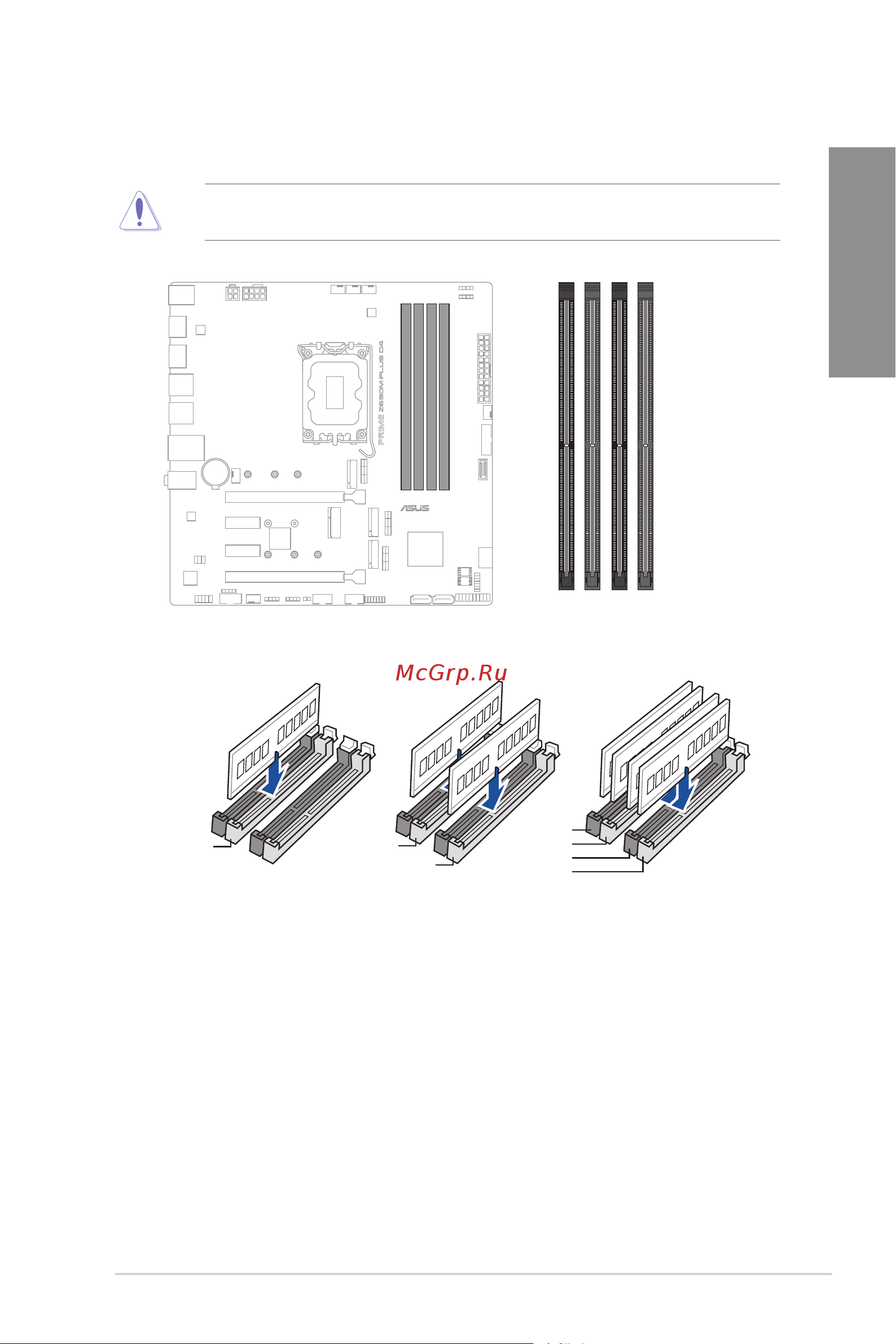

2. DIMM slots
The motherboard comes with Dual Inline Memory Modules (DIMM) slots designed for DDR4
(Double Data Rate 4) memory modules.
A DDR4 memory module is notched differently from a DDR, DDR2, or DDR3 module. DO
NOT install a DDR, DDR2, or DDR3 memory module to the DDR4 slot.
DIMM_B1
DIMM_B2
DIMM_A1
DIMM_A2
Recommended memory configurations
DIMM_A2
DIMM_A1
DIMM_A2
DIMM_B2
DIMM_A2
DIMM_B1
DIMM_B2
