9
Z790 Pro RS

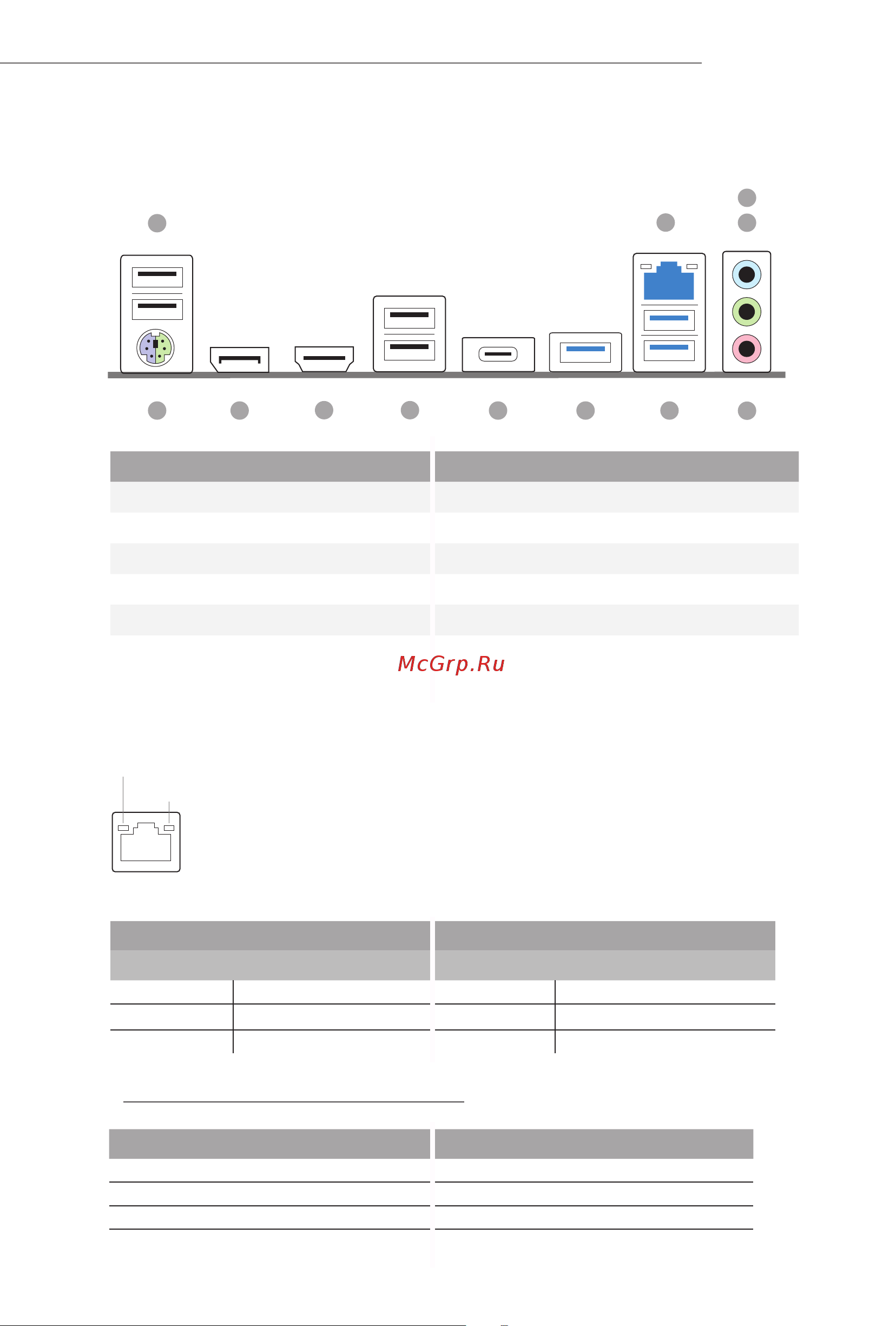

1.4 I/O Panel
ACT/LINK LED
SPEED LED
LAN Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection
On Link Green 2.5Gbps connection
No. Description No. Description
1 USB 2.0 Ports (USB_12) 7 USB 3.2 Gen2 Type-A Port (USB32_1)
2 2.5G LAN RJ-45 Port* 8 USB 3.2 Gen2 Type-C Port (USB32_TC2)
3 Line In (Light Blue)** 9 USB 2.0 Ports (USB_34)
4 Front Speaker (Lime)** 10 HDMI Port
5 Microphone (Pink)** 11 DisplayPort 1.4
6 USB 3.2 Gen1 Ports (USB32_23) 12 PS/2 Mouse/Keyboard Port
** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out
1
12
11
678
2
5
4
3
910
