English
41
Z690 PG Riptide
2.12 M.2_SSD (NGFF) Module Installation Guide (M2_3)
e M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. e Ultra M.2
Socket (M2_3, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen3x4 (32
Gb/s) modes.
* If M2_3 is occupied by a SATA-type M.2 device, SATA3_7 will be disabled.
Installing the M.2_SSD (NGFF) Module

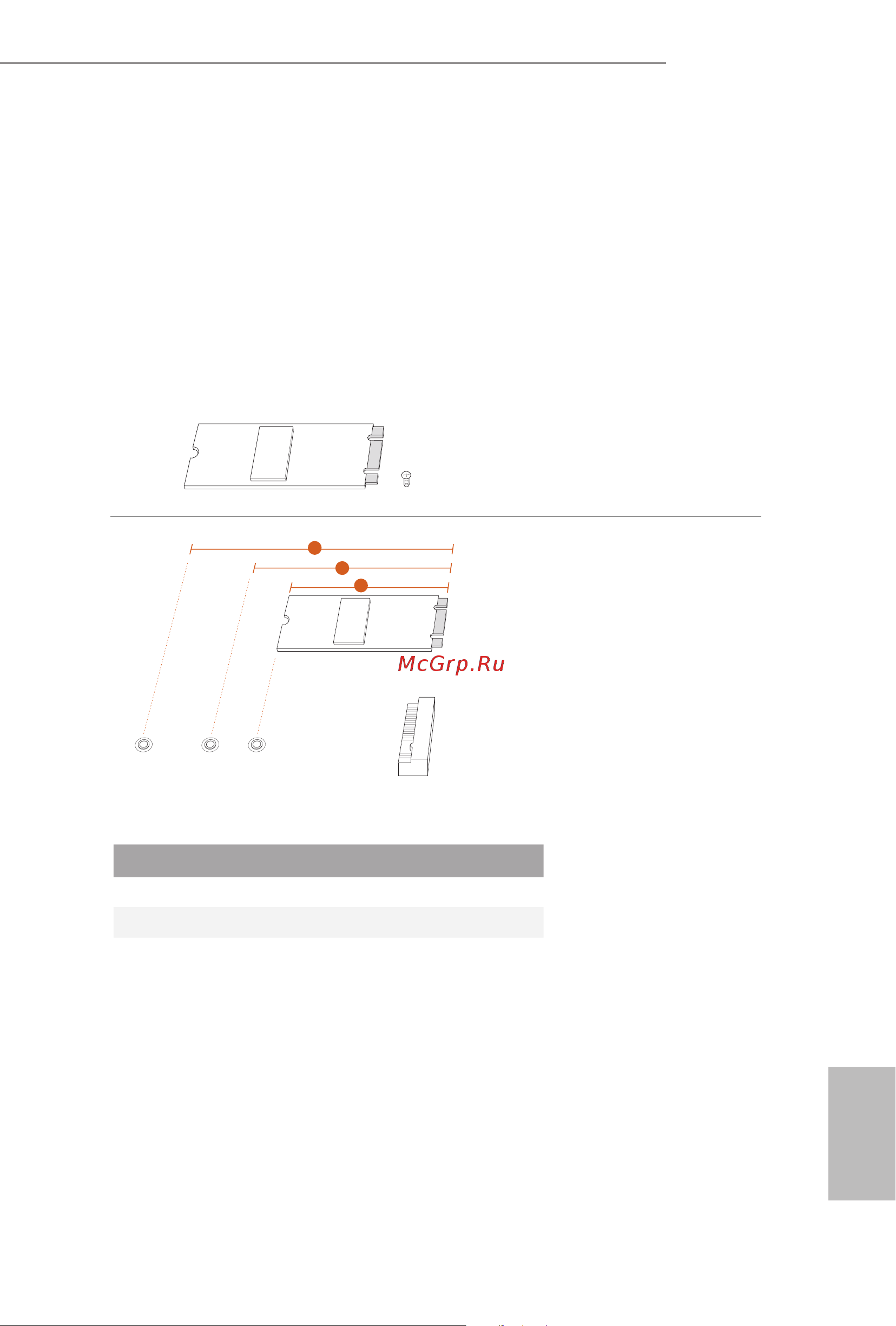

Step 1
Prepare a M.2_SSD (NGFF) module
and the screw.
1
2
3
ABC
Step 2
Depending on the PCB type and
length of your M.2_SSD (NGFF)
module, nd the corresponding nut
location to be used.
No. 1 2 3
Nut Location A B C
PCB Length 6cm 8cm 11cm
Module Type Type 2260 Type 2280 Type 22110
