ASRock B660 Pro RS [64/104] Main screen
![ASRock B660 Pro RS [64/104] Main screen](/views2/1921039/page64/bg40.png)
57
English
B660 Pro RS

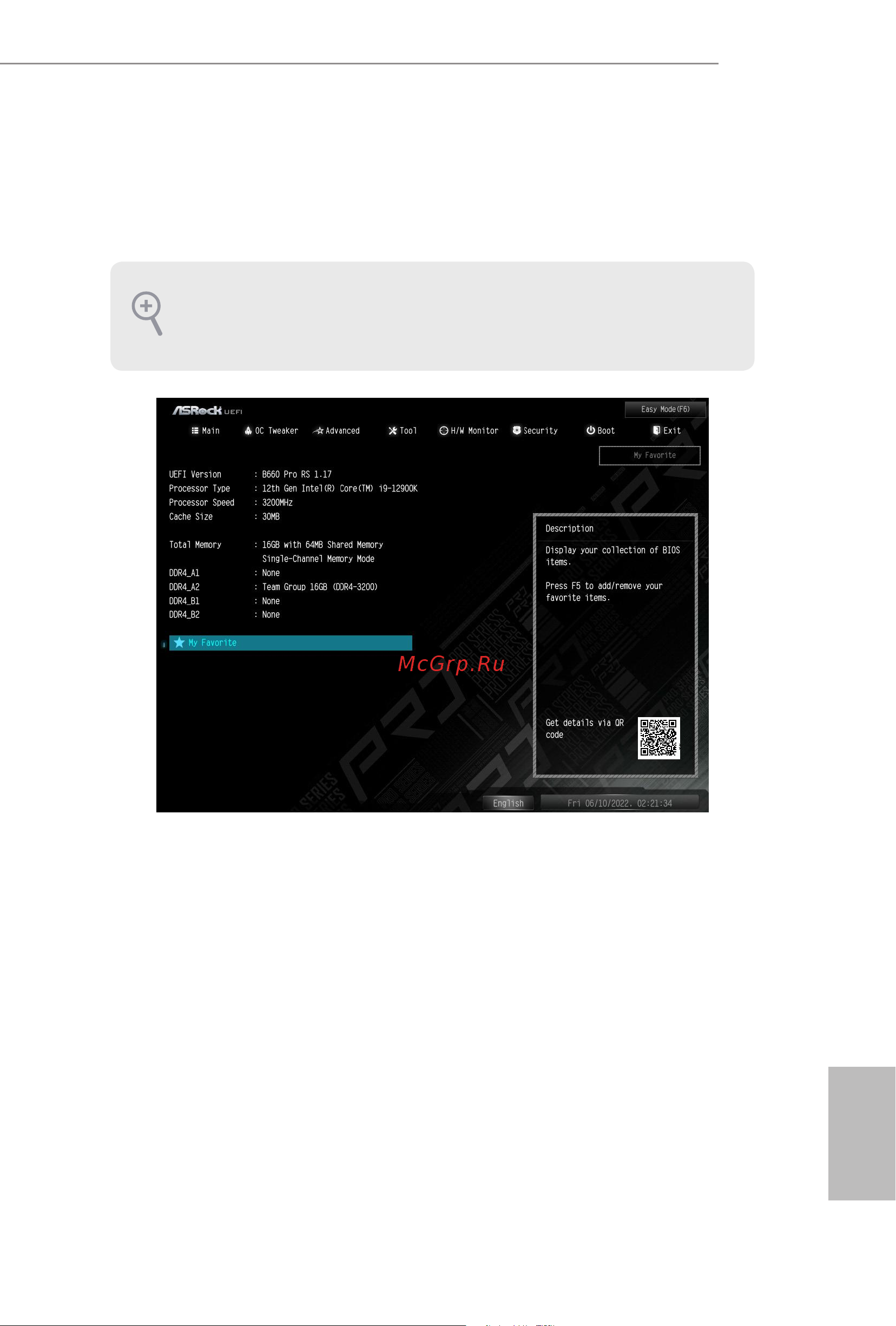

4.4 Main Screen
When you enter the UEFI SETUP UTILITY, the Main screen will appear and
display the system overview.
My Favorite
Display your collection of BIOS items. Press F5 to add/remove your favorite items.
e availability and location of BIOS settings can be dierent for dierent models
and BIOS versions.
