ASRock Z590 Pro4 [64/108] Connecting the addressable rgb led strip
![ASRock Z590 Pro4 [64/108] Connecting the addressable rgb led strip](/views2/1921062/page64/bg40.png)
56
English
DRAM
BOOT
VGA
CP
U

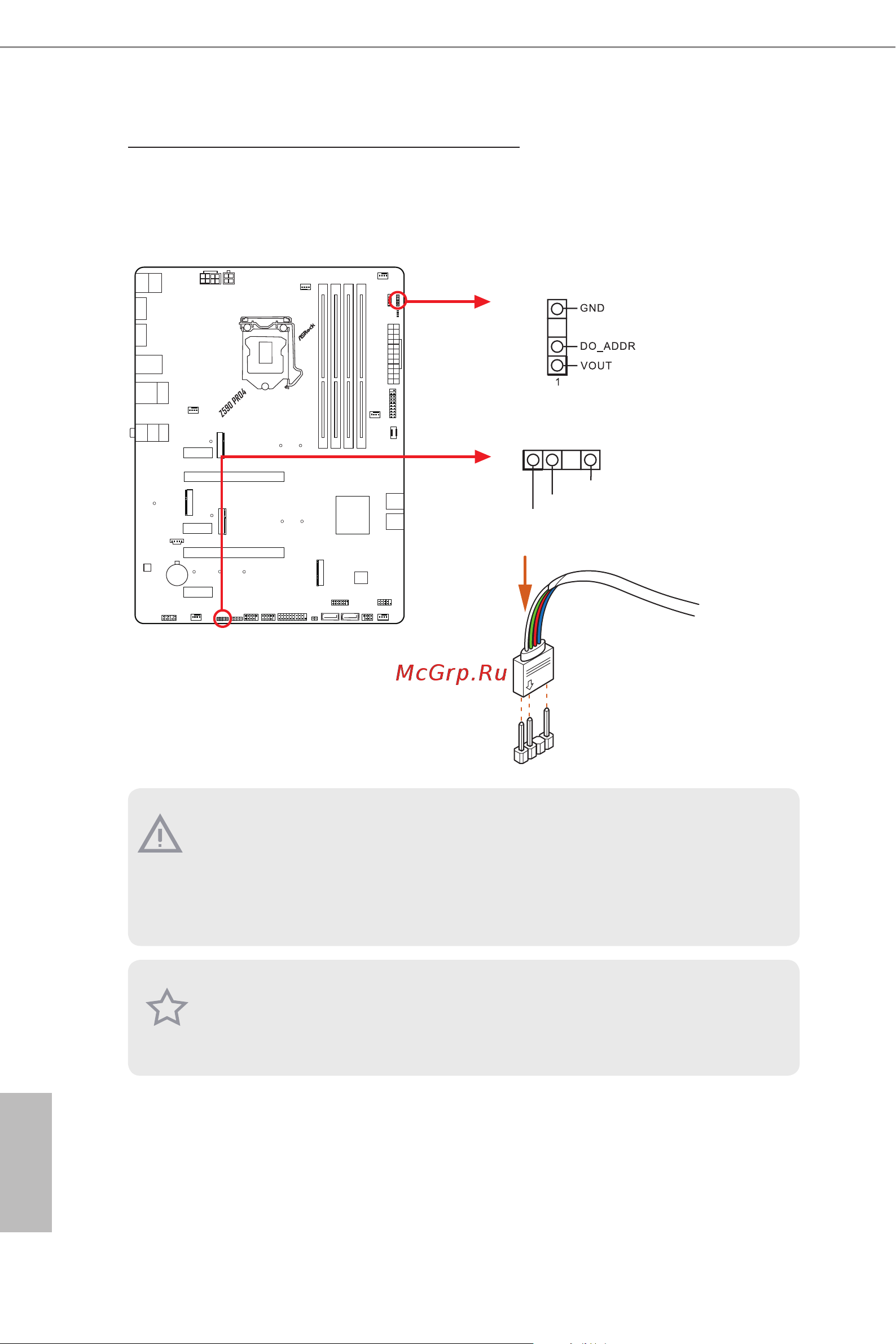

Connecting the Addressable RGB LED Strip
Connect your
Addressable RGB LED
strips to the
Addressable LED Headers (ADDR_LED1 /
ADDR_LED2)
on the motherboard.
1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be
damaged.
2. Before installing or removing your RGB LED cable, please power o your system and
unplug the power cord from the power supply. Failure to do so may cause damages to
motherboard components.
1. Please note that the RGB LED strips do not come with the package.
2. e RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/
GND), with a maximum power rating of 3A (5V) and length within 2 meters.
1
VOUT
DO_ADDR
GND
1
ADDR_LED2
ADDR_LED1
