8

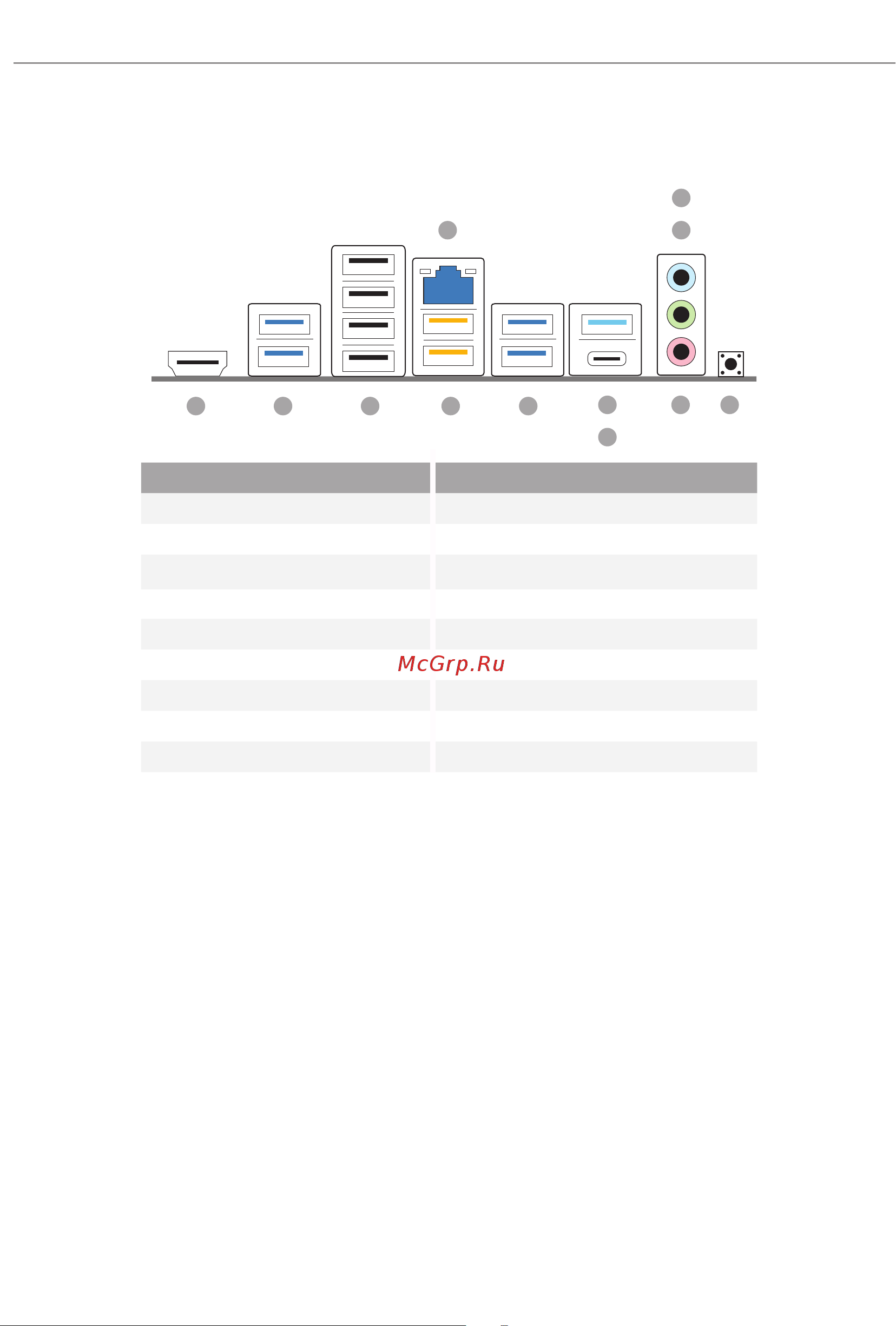

1.4 I/O Panel
No. Description No. Description
1 2.5G LAN RJ-45 Port* 8 USB 3.2 Gen1 Type-A Ports
2 Line In (Light Blue)** (USB32_56)
3 Front Speaker (Lime)** 9 USB 3.2 Gen1 Type-A Ports
4 BIOS Flashback Button (USB32_34)***
5 Microphone (Pink)** 10 USB 2.0 Ports (USB1234)
6 USB 3.2 Gen1 Type-A Port 11 USB 3.2 Gen1 Type-A Ports
(USB32_7) (USB32_12)
7 USB 3.2 Gen2x2 Type-C Port 12 HDMI Port
(USB32_TC1)
12 11 10
5 4
2
3
9
1
6
7
8
