7
AMD X670/B650 Series
2.2 ASRock Live Update & APP Shop
e ASRock Live Update & APP Shop is an online store for purchasing and
downloading soware applications for your ASRock computer. You can quickly and
easily install various apps and support utilities. With ASRock Live Update & APP
Shop, you can optimize your system and keep your motherboard up to date simply
with a few clicks.
2.2.1 Installing ASRock Live Update & APP Shop

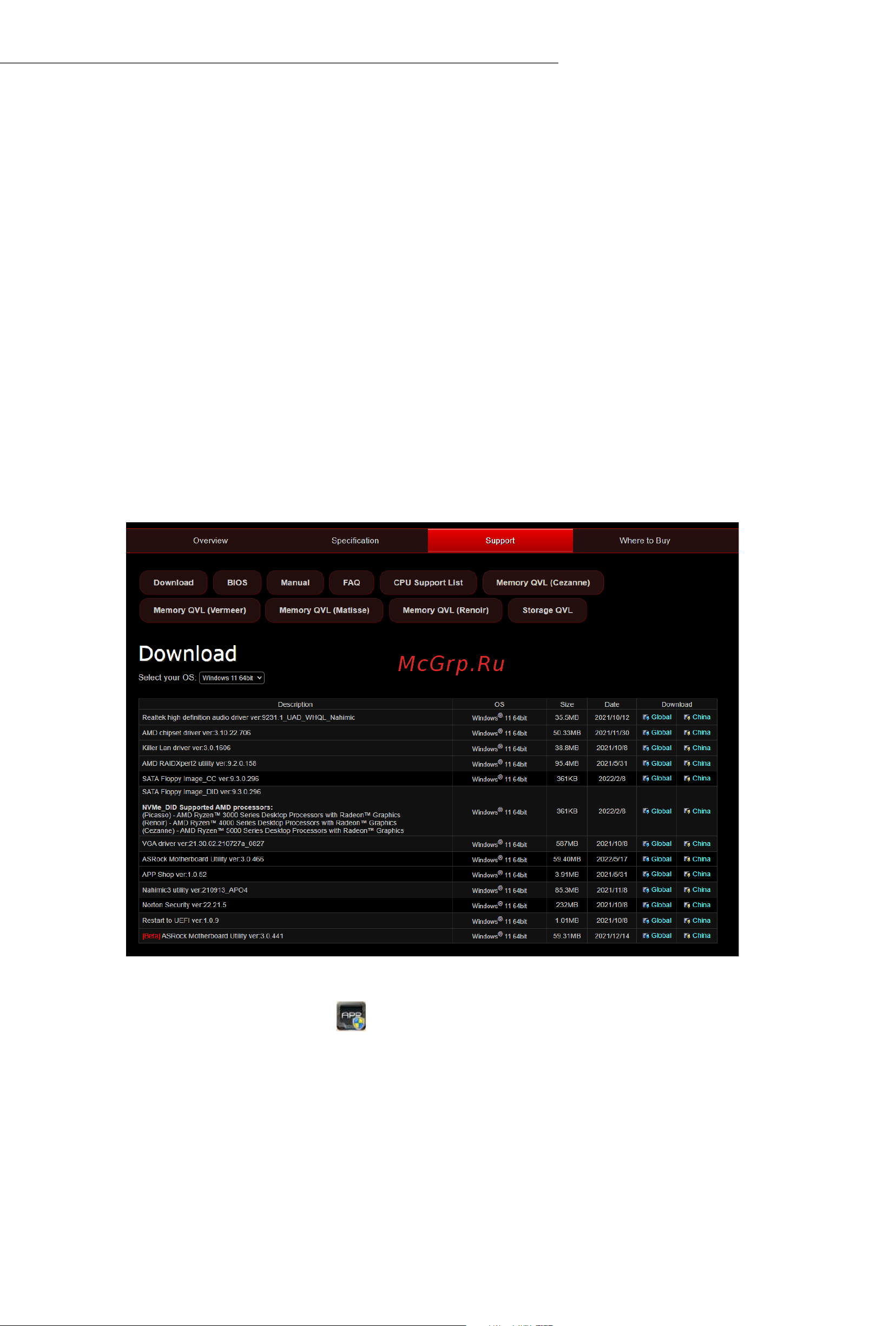

Please download the ASRock Live Update & APP Shop utility from the ASRock's
website: "https://ww w.asrock.com".
Go to the product page of your motherboard, select "Support" > "Download" to
download the APP Shop.
Aer installation, double-click on your desktop to access ASRock Live Update
& APP Shop utility.
*You need to be connected to the Internet to download apps from the ASRock Live Update & APP Shop.
