English
44
2.15 M.2 WiFi/BT PCIe WiFi Module Installation Guide
e M.2 is a small size and versatile card edge connector that aims to replace mPCIe and
mSATA. e M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module.
* e M.2 socket does not support SATA M.2 SSDs.

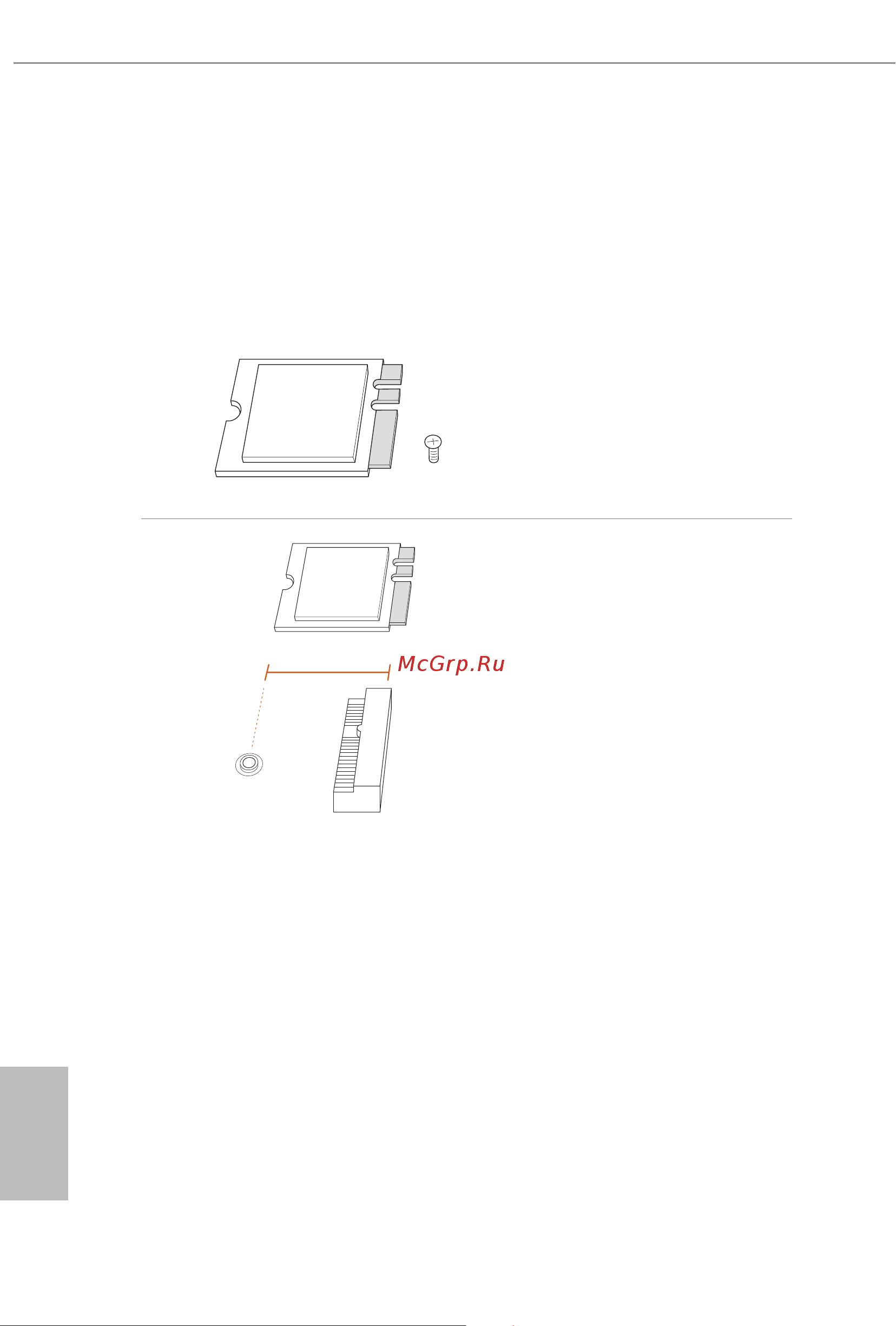

Installing the WiFi/BT module
Step 1
Prepare a type 2230 WiFi/BT PCIe
WiFi module and the screw.
PCB Length: 3cm
Module Type: Type2230
A
Step 2
Find the nut location to be used.
