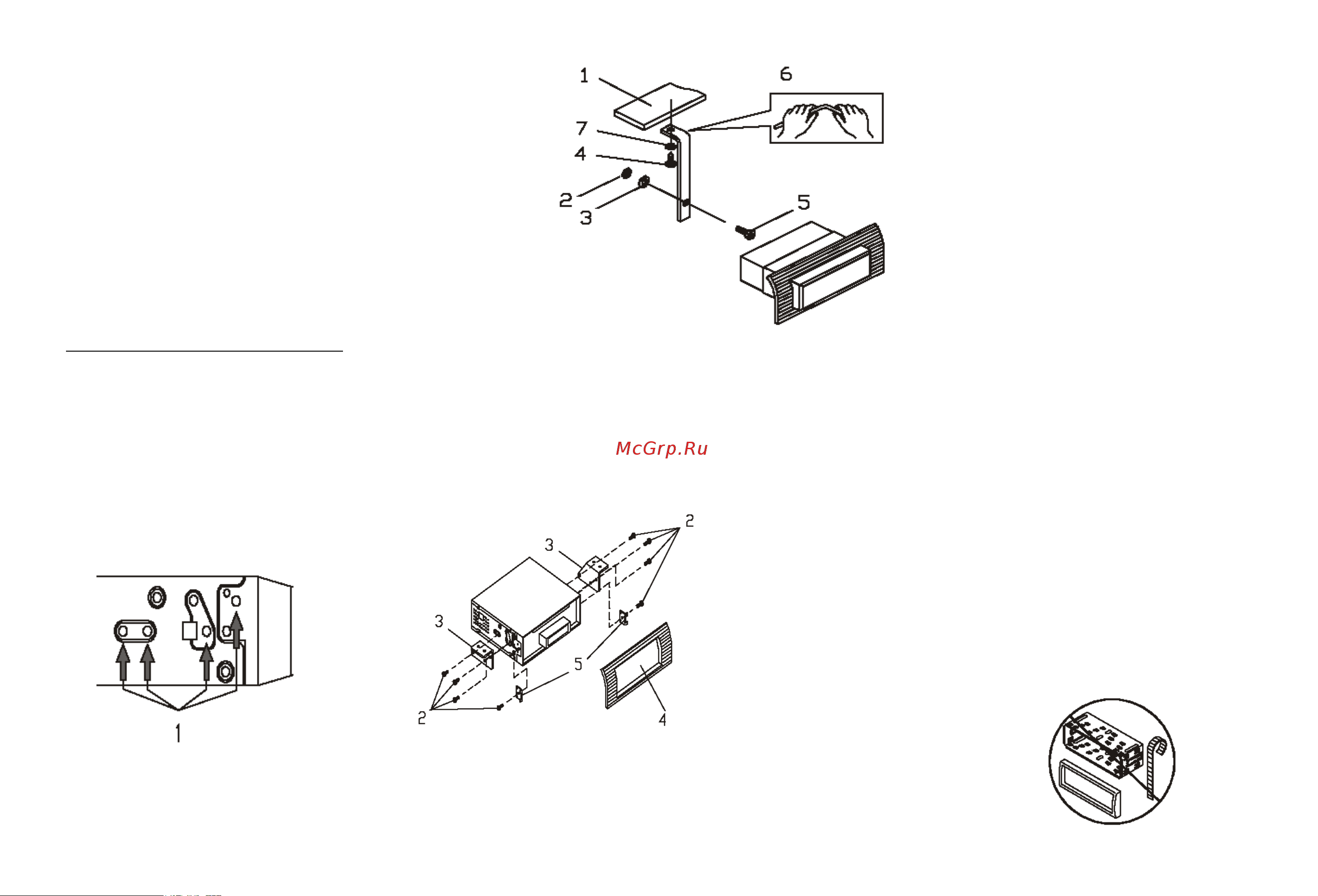

HYUNDAI ELECTRONICS H-CCR8080 [5/32] Din rear mount method 2

1. Dashboard

2. Nut (5mm)

3. Spring washer

4. Screw (5 x 25mm)

7. Plain washer

Din rear-mount (method 2)

Installation using the screw holes at both sides of the unit.

1. Select a position where the screw holes of the main unit are fitted for aligned, and tighten the screws at 2 positions at each sides.

Use either truss screws (5 x 8mm) or flush surface screws (4 x 8mm),depending on the shape of the screw holes in the bracket.

3. Factory radio mounting bracket.

4. Dashboard or Console

5. Hook (Remove this parts)

Note: The mounting box, outer trim ring, and the Half-sleeve are not used for this method of installation.
