Installation/Connection

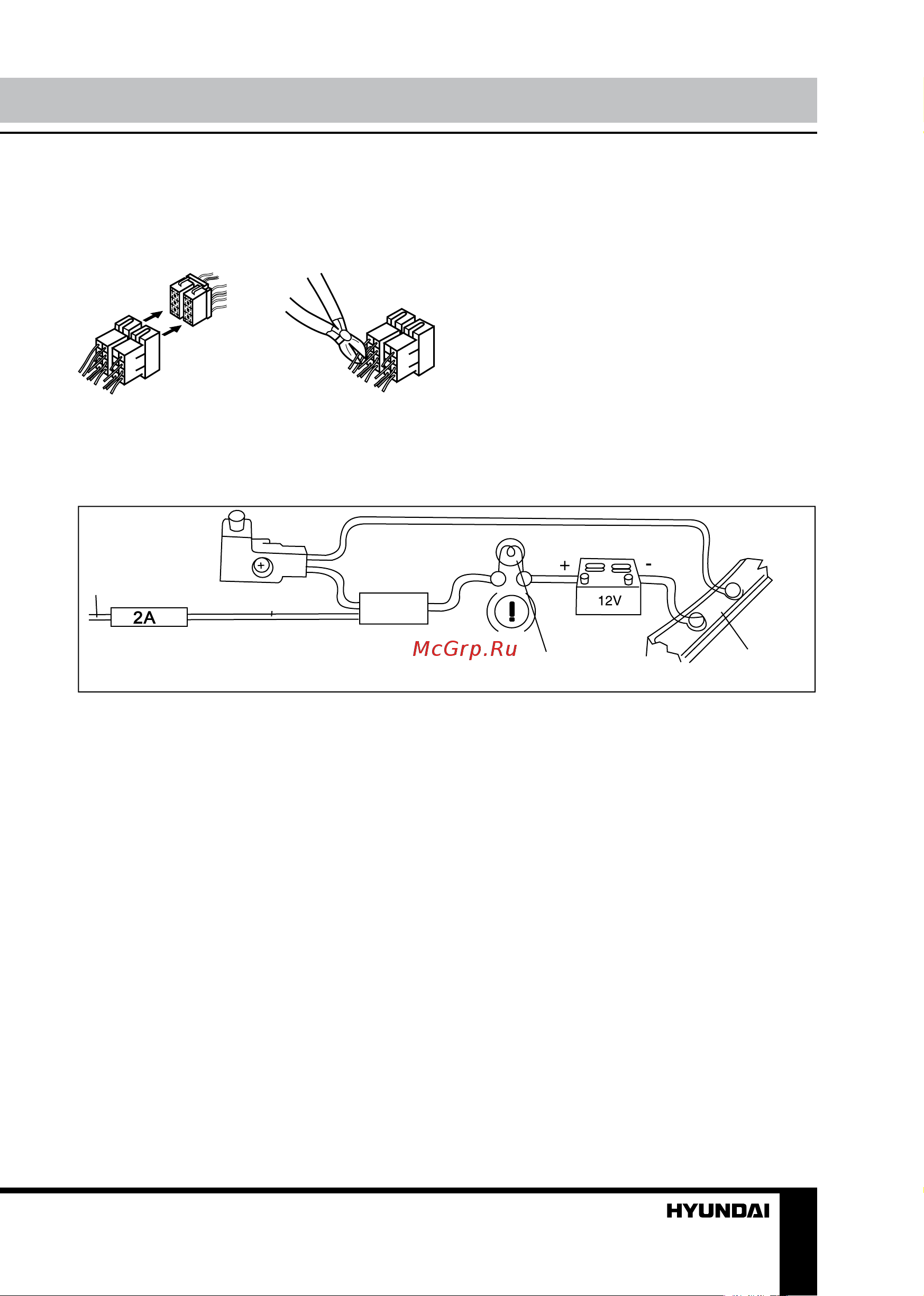

Using the ISO Connector

1. If your car is equipped with the ISO

connector, then connect the ISO connectors as

illustrated.

2. For connections without the ISO

connectors, check the wiring in the vehicle

carefully before connecting, incorrect connection

may cause serious damage to this unit.

Cut the connector, connect the colored leads

of the power cord to the car battery as shown

in the colour code table above for speaker and

power cable connections.

Parking wire connection

Parking brake lead

Brake light

Car frame

Battery

Brown Wire

If Parking cable is connected to hand brake switch, the video display of the TFT monitor will be

controlled by driving status. When the car is moving ahead, if the video is played, the screen shows

warning and blank screen. The warning screen will prevent the driver from watching images.
