Installation/Connection
4
Installation
General notes
• Choose the mounting location
where the unit will not interfere with
the normal function of the driver.
• Before finally installing the unit,
connect the wiring and make sure that
the unit works properly.
• Consult with your dealer if
installation requires drilling of holes or
other modifications of the vehicle.
• Install the unit where it does not
get in the driver’s way and cannot
injure the passenger if there is a
sudden stop, like an emergency stop.
• If installation angle exceeds
30° from horizontal, the unit may not
perform properly.
• Avoid installing the unit where it
would be subject to high temperature,
such as from direct sunlight, or from
hot air, from the heater, or where
it would be subject to dust, dirt or
excessive vibration.

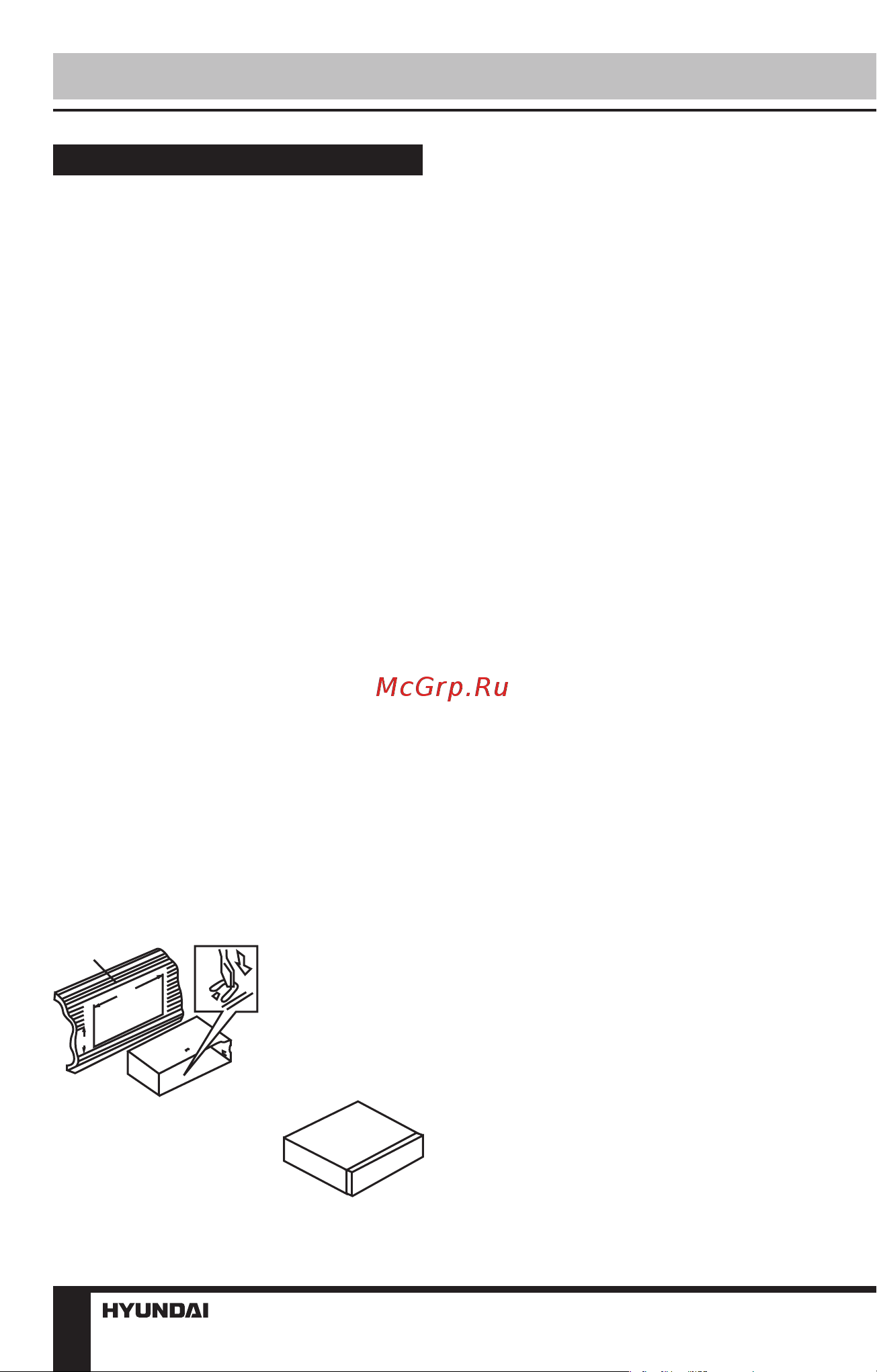

1.DIN front-mount
1. Car dashboard
2. Sleeve
2
1
182
53
1. Install the sleeve into the
dashboard; ensure it is installed with
the correct side and there are no
obstacles (wires, dashboard elements,
etc) for the unit installation.
2. After installing the sleeve into the
dashboard, bend tabs fitting to the
size of the dashboard to fix the sleeve
in place.
3. Make the necessary wire
connections. Ensure the connections
are correct.
4. Install the unit into the sleeve until
the side locks are fixed.
