Detachable control panel

Detaching the control panel

Turn the Power off.

Press button to flip down the panel.

Gently press the right side of the panel.

Pull the panel out (see the picture 1).

Attaching the control panel

Insert the right side of the control panel into the main unit.

Press the control panel left side until the click sound is heard.

Caution:

DO NOT insert the control panel from the left side. It can damage the control panel.

The control panel can easily be damaged by shocks. After removing it, place it in a protective case and be careful

not to drop it or subject it to strong shocks.

The rear connector that connects the main unit and the control panel is an extremely important part. Be careful not

to damage it by pressing on it with fingernails, pens, screwdrivers, etc.

Note:

If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton

swab soaked in isopropyl alcohol to clean the socket on the back of the control panel.

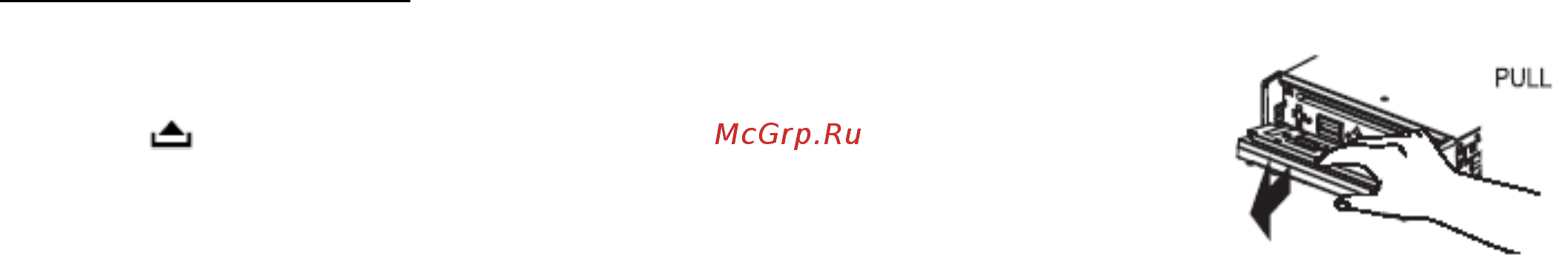

Pic. 1
