HYUNDAI ELECTRONICS H-CMD4008 [4/76] Installation connection

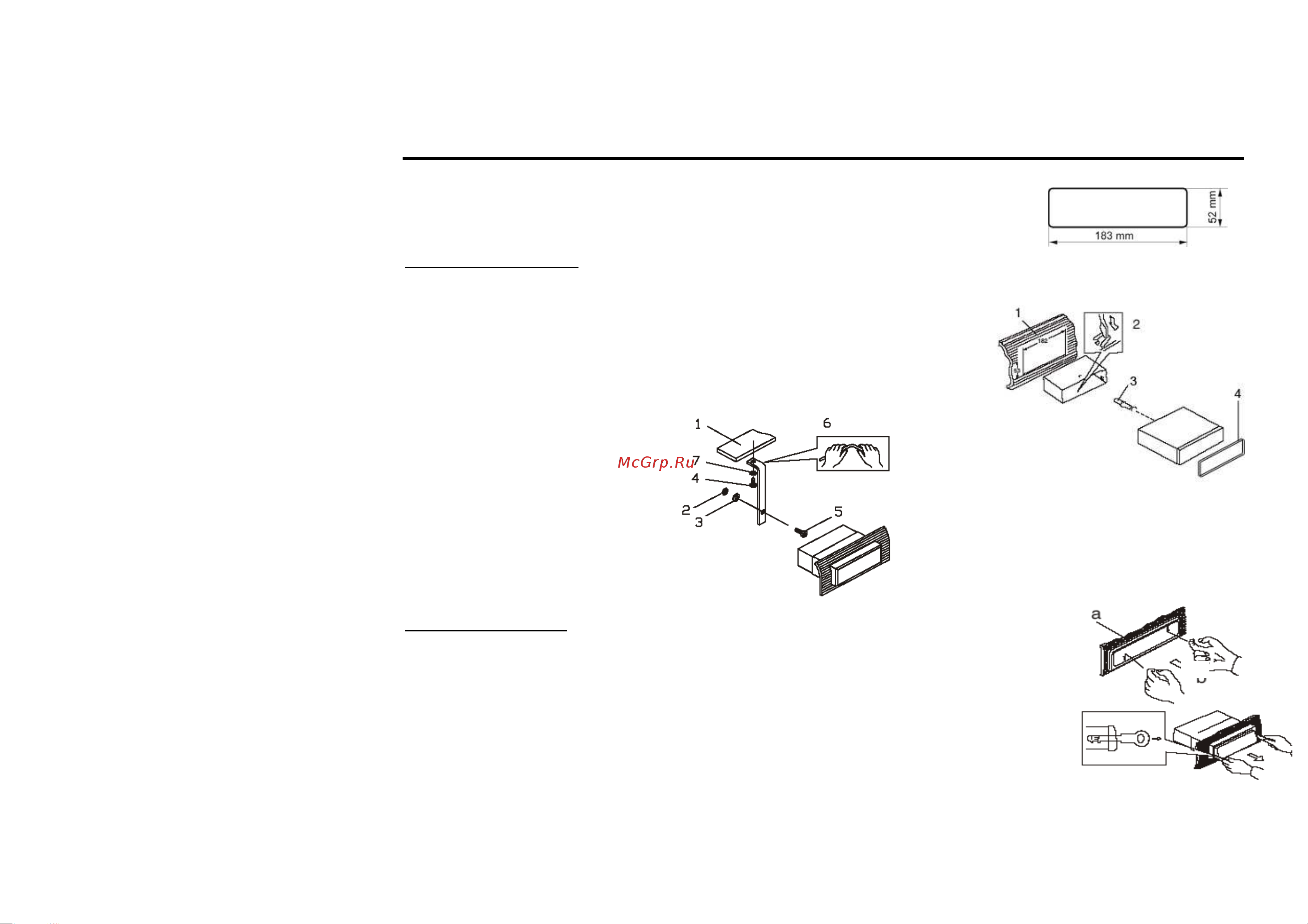

Installation/ connection

This unit can be installed in any dashboard having an opening as shown on the picture.

The dashboard should be ~ 4.5 – 5.5 mm thick in order to be able to support the unit.

First complete the electrical connections, and then check them for correctness.

Installation opening

1. Insert the unit holder into the dashboard.

2. Select the appropriate tabs and bend them the tabs 90 degrees to secure

the holder in place.

3. Secure the rear of the unit. Fix the rear of the unit to the car body by

rubber cushion.

1. Dashboard

2. Nut (5 mm)

3. Spring washer

4. Screw (5 x 25 mm)

5. Screw

6. Strap

7. Plain washer

4. Insert frame.

Removing the unit

Insert fingers into the groove in the front of frame and pull out to remove the frame.

(When reattaching the frame, point the side with a groove down wards and attach it.)

Insert the levers supplied with the unit into the grooves at both sides of the unit as

shown in figure until they click. Pulling the levers makes it possible to remove the unit

from the dashboard.

frame

lever
