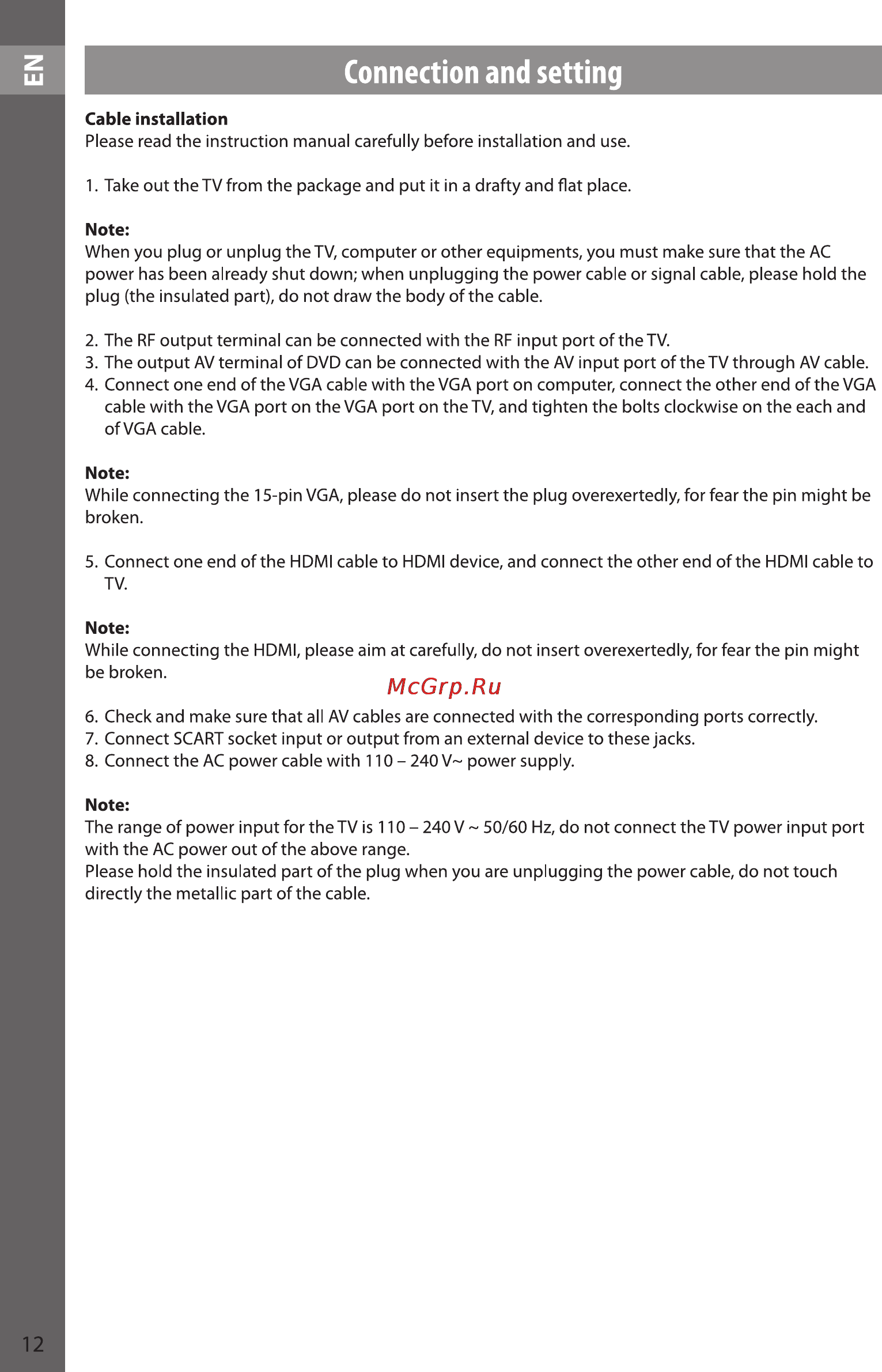

Connection and setting Cable installation Please read the instruction manual carefully before installation and use 1 Take out the TV from the package and put it in a drafty and flat place Note When you plug or unplug the TV computer or other equipments you must make sure that the AC power has been already shut down when unplugging the power cable or signal cable please hold the plug the insulated part do not draw the body of the cable 2 The RF output terminal can be connected with the RF input port of the TV 3 The output AV terminal of DVD can be connected with the AV input port of the TV through AV cable 4 Connect one end of the VGA cable with the VGA port on computer connect the other end of the VGA cable with the VGA port on the VGA port on the TV and tighten the bolts clockwise on the each and of VGA cable Note While connecting the 15 pin VGA please do not insert the plug overexertedly for fear the pin might be broken 5 Connect one end of the HDMI cable to HDMI device and connect the other end of the HDMI cable to TV Note While connecting the HDMI please aim at carefully do not insert overexertedly for fear the pin might be broken 6 Check and make sure that all AV cables are connected with the corresponding ports correctly 7 Connect SCART socket input or output from an external device to these jacks 8 Connect the AC power cable with 110 240 V power supply Note The range of power input for the TV is 110 240 V 50 60 Hz do not connect the TV power input port with the AC power out of the above range Please hold the insulated part of the plug when you are unplugging the power cable do not touch directly the metallic part of the cable 12
