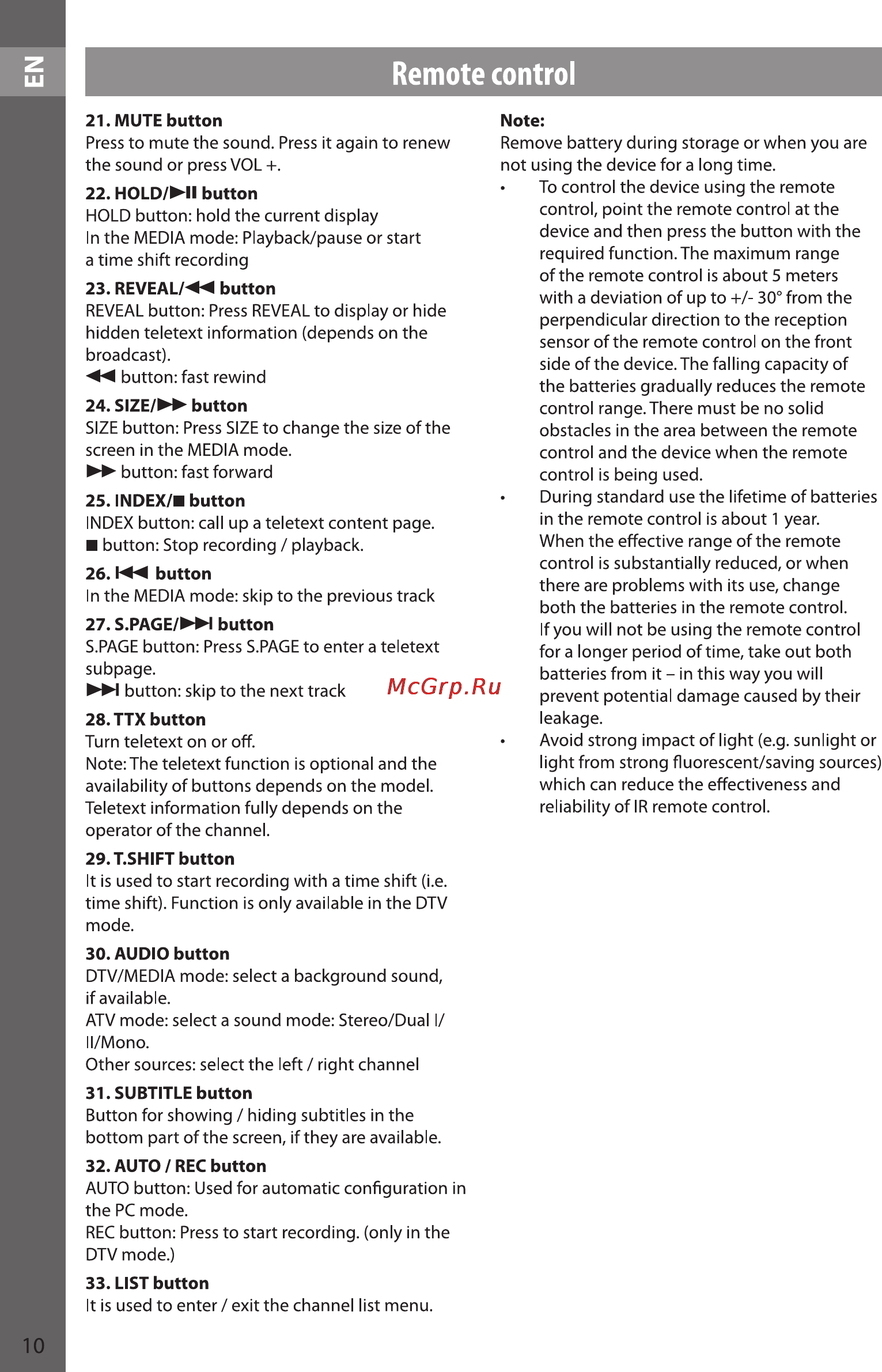

z LU Remote control 21 MUTE button Note Press to mute the sound Press it again to renew the sound or press VOL Remove battery during storage or when you are not using the device for a long time To control the device using the remote control point the remote control at the device and then press the button with the required function The maximum range of the remote control is about 5 meters with a deviation of up to 30 from the perpendicular direction to the reception sensor of the remote control on the front side of the device The falling capacity of the batteries gradually reduces the remote control range There must be no solid obstacles in the area between the remote control and the device when the remote control is being used During standard use the lifetime of batteries in the remote control is about 1 year When the effective range of the remote control is substantially reduced or when there are problems with its use change both the batteries in the remote control If you will not be using the remote control fora longer period of time take out both batteries from it in this way you will prevent potential damage caused by their leakage Avoid strong impact of light e g sunlight or light from strong fluorescent saving sources which can reduce the effectiveness and reliability of IR remote control 22 HOLD MI button HOLD button hold the current display In the MEDIA mode Playback pause or start a time shift recording 23 REVEAL button REVEAL button Press REVEAL to display or hide hidden teletext information depends on the broadcast button fast rewind 24 SIZE k button SIZE button Press SIZE to change the size of the screen in the MEDIA mode button fast forward 25 INDEX button INDEX button call up a teletext content page B button Stop recording playback 26 I button In the MEDIA mode skip to the previous track 27 S PAGE M button S PAGE button Press S PAGE to enter a teletext subpage I button skip to the next track 28 TTX button Turn teletext on or off Note The teletext function is optional and the availability of buttons depends on the model Teletext information fully depends on the operator of the channel 29 T SHIFT button It is used to start recording with a time shift i e time shift Function is only available in the DTV mode 30 AUDIO button DTV MEDIA mode select a background sound if available ATV mode select a sound mode Stereo Dual 1 ll Mono Other sources select the left right channel 31 SUBTITLE button Button for showing I hiding subtitles in the bottom part of the screen if they are available 32 AUTO REC button AUTO button Used for automatic configuration in the PC mode REC button Press to start recording only in the DTV mode 33 LIST button It is used to enter exit the channel list menu
