Telefunken TF-LED65S37T2SU [7/50] Operation

Operation

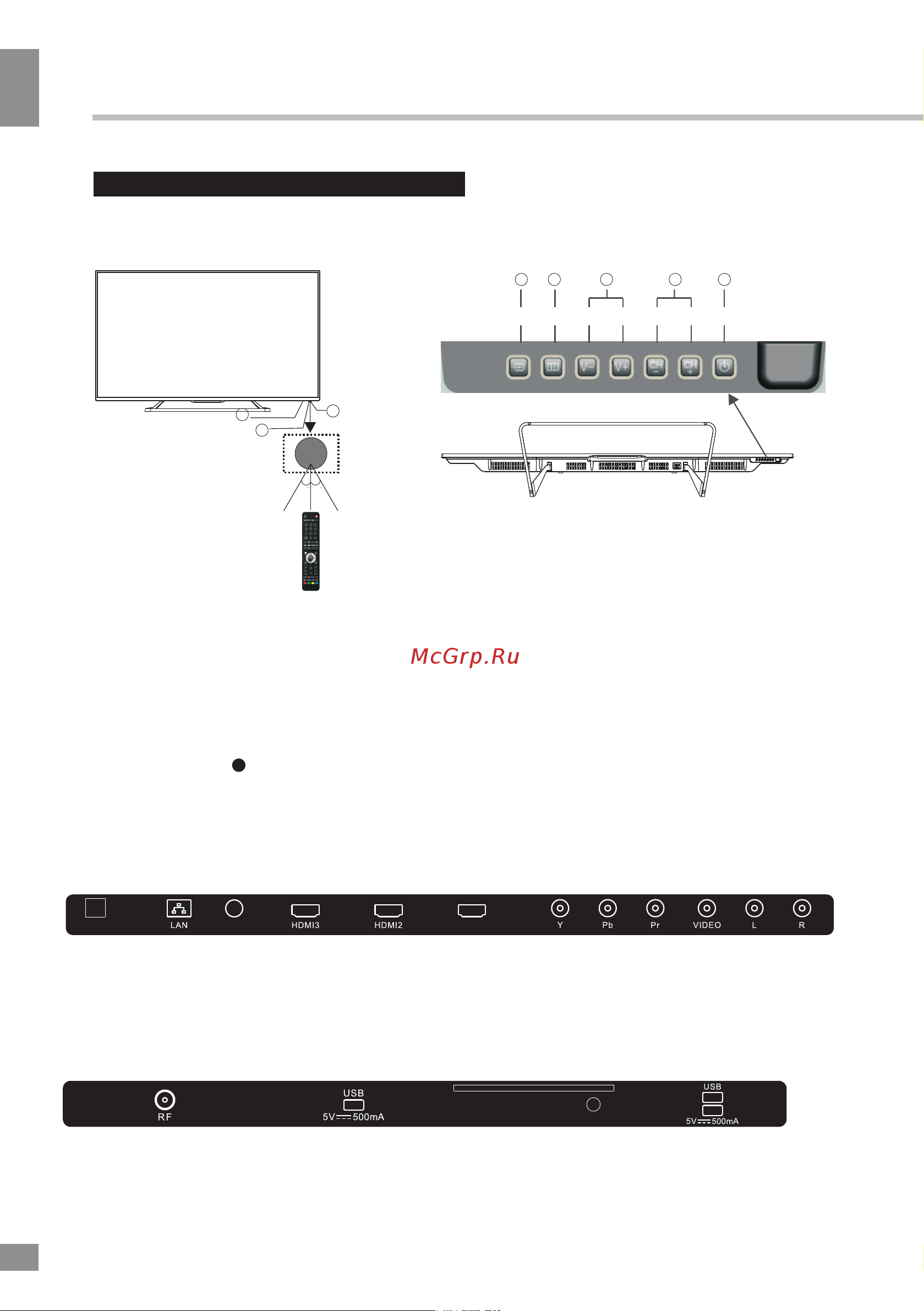

Front panel

Control elements

1. Remote control sensor

2. Indicator LED: RED STAN

DBY

3. Key board

1．SOURCE：

Display the input source menu.

2．MENU：

Display main MENU.

3．V-/V+

Adjust sound level.

In MENU mode, press“V+”or“V-”to

adjust the item that you selected.

4．CH+/CH-

In TV mode，press“CH+”or“CH-”to change

the channel up and down.

In MENU mode, press “CH+”or“CH-”to select

items.

5. STANDBY

Press this button to turn the unit ON from

STANDBY mode.

Press it again to turn the set back to STANDBY.

REAR AV Connections

REAR AV Connections(SIDE)

30 30

SOURCE MENU V- V+ CH- CH+ Standby

1 2 3 4 5

AC-INPUT

100-240V~50Hz

HDMI1

COAXIAL

COMMON INTERFACE (CI)

HEADPHONE

All the terminals are(from left to right):

, HDMI3, HDMI2, HDMI1, YPbPr, VIDEO, AUDIO INPUT.

Note: VIDEO and YPbPr share one audio channel.

AC POWER SOURCE, LAN, COAXIAL

All the terminals are (from left to right):

RF, USB, CI, HEADPHONE, USB.
