LG GR-B207FLCA [13/71] Door replacement

Содержание

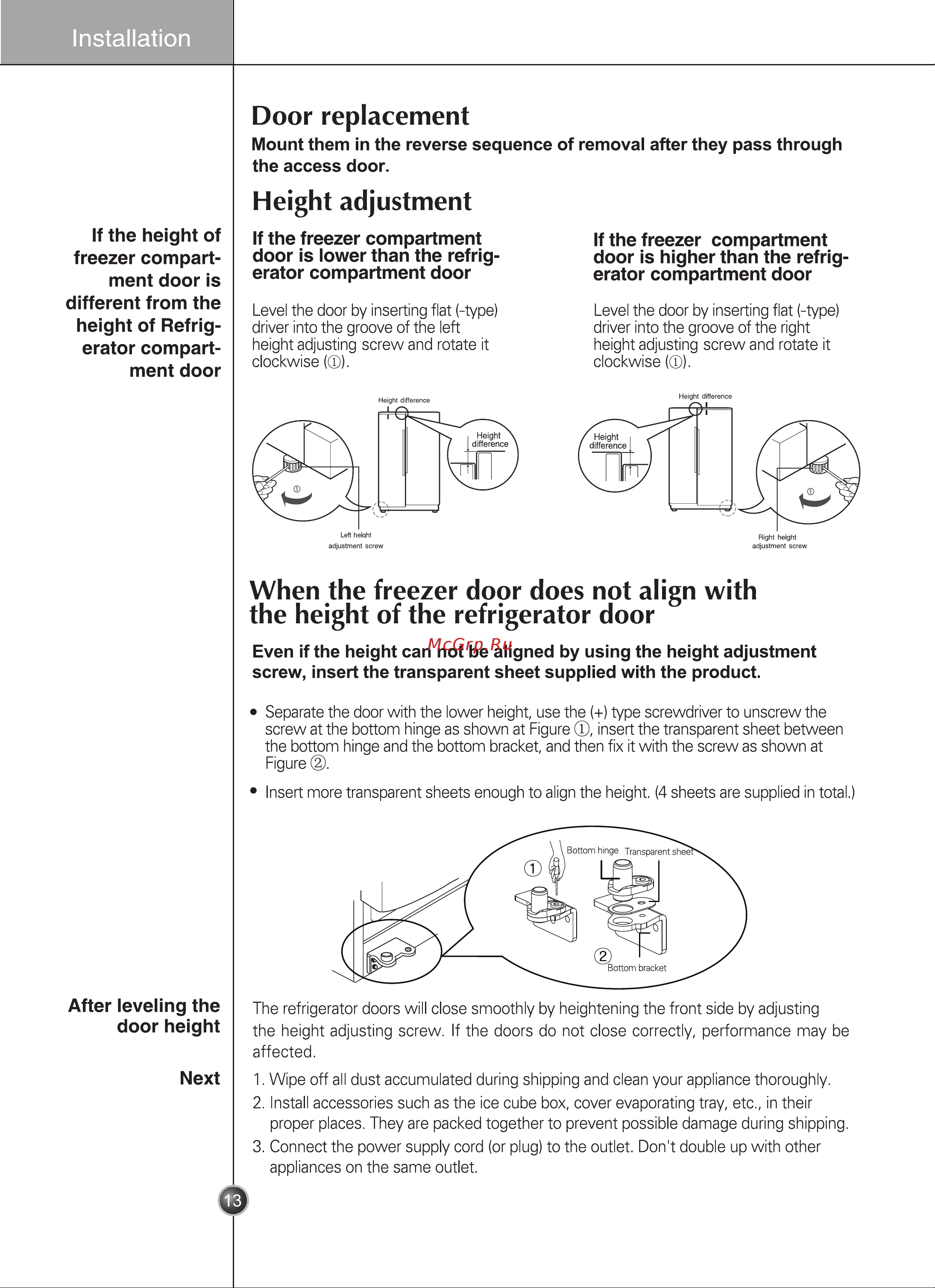

Installation Door replacement Mount them in the reverse sequence the access door of removal after they pass through Height adjustment If the height of freezer compart ment door is different from the height of Refrig erator compart ment door If the freezer compartment door is lower than the refrig erator compartment door If the freezer compartment door is higher than the refrig erator compartment door Level the door by inserting flat type driver into the groove of the left height adjusting screw and rotate it clockwise Level the door by inserting flat type driver into the groove of the right height adjusting screw and rotate it clockwise adjustment screw When the freezer door does not align with the height of the refrigerator door Even if the height can not be aligned by using the height adjustment screw insert the transparent sheet supplied with the product Separate the door with the lower height use the type screwdriver to unscrew the screw at the bottom hinge as shown at Figure insert the transparent sheet between the bottom hinge and the bottom bracket and then fix it with the screw as shown at Figure Insert more transparent sheets enough to align the height 4 sheets are supplied in total After leveling the door height The refrigerator doors will close smoothly by heightening the front side by adjusting the height adjusting screw If the doors do not close correctly performance may be affected Next 1 Wipe off all dust accumulated during shipping and clean your appliance thoroughly 2 Install accessories such as the ice cube box cover evaporating tray etc in their proper places They are packed together to prevent possible damage during shipping 3 Connect the power supply cord or plug to the outlet Don t double up with other appliances on the same outlet
