IM2019

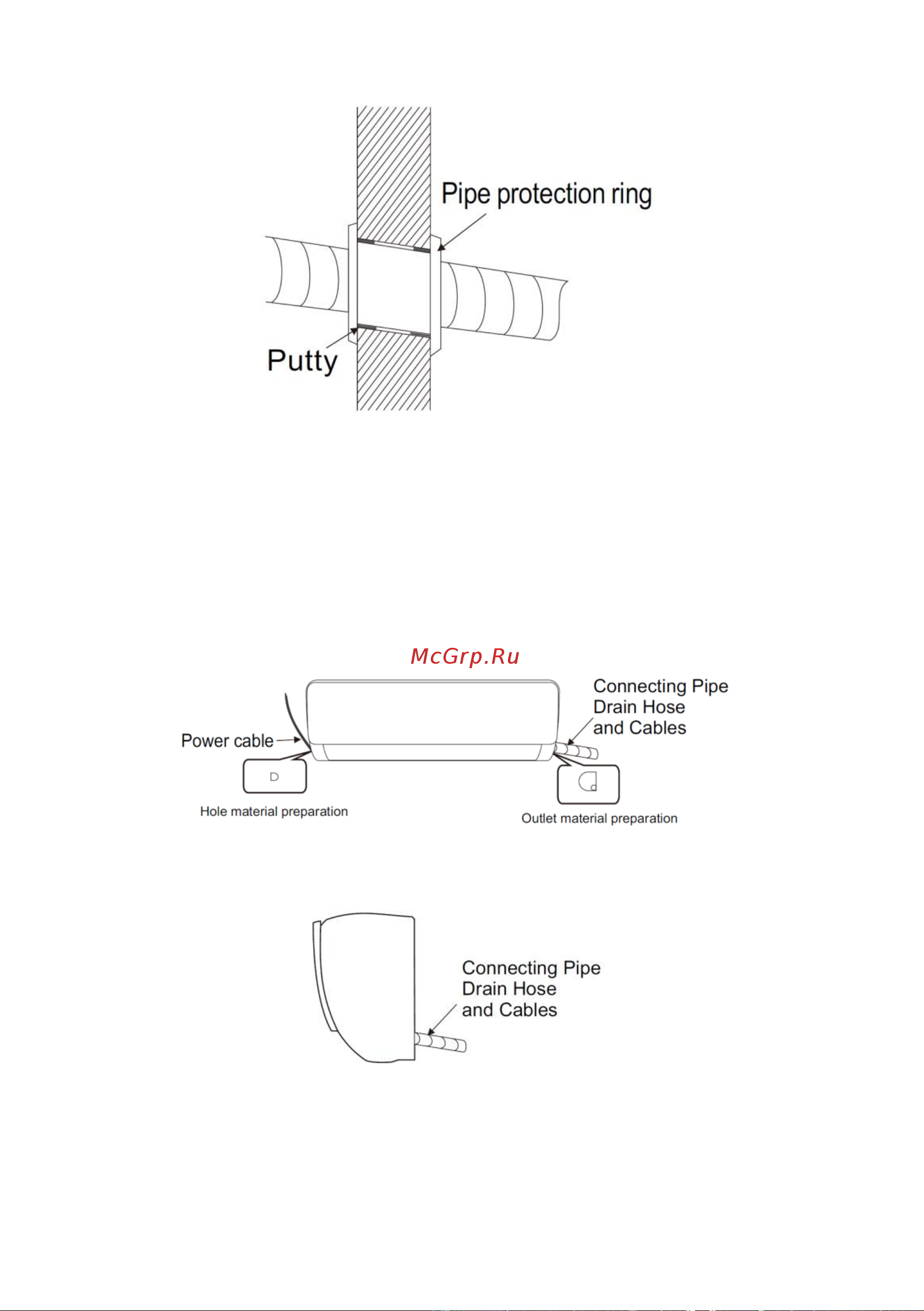

Note: Usually, the wall hole is Φ60mm~Φ80mm. Avoid pre-buried power wire and hard wall

when making the hole

Fig. 4

Route of Pipeline

1. Depending on the position of the unit, the piping may be routed sideway from the left or the

right (Fig. 5), or horizontally from the back (Fig. 6) (depending on the pipe length of the indoor

unit). In the case of sideway routing, cut off the outlet cutting stock of the opposite side.

2. The power cable may be routed separately from the piping. Cut off the outlet cutting stock and

then run the power cable through the hole.

Fig. 5

Fig. 6

Pipes connection

1. Remove the mountings and pull the indoor unit pipe out of the housing.

2. Connect the connecting pipe to the indoor unit: Aim at the pipe center, tighten the Taper nut
