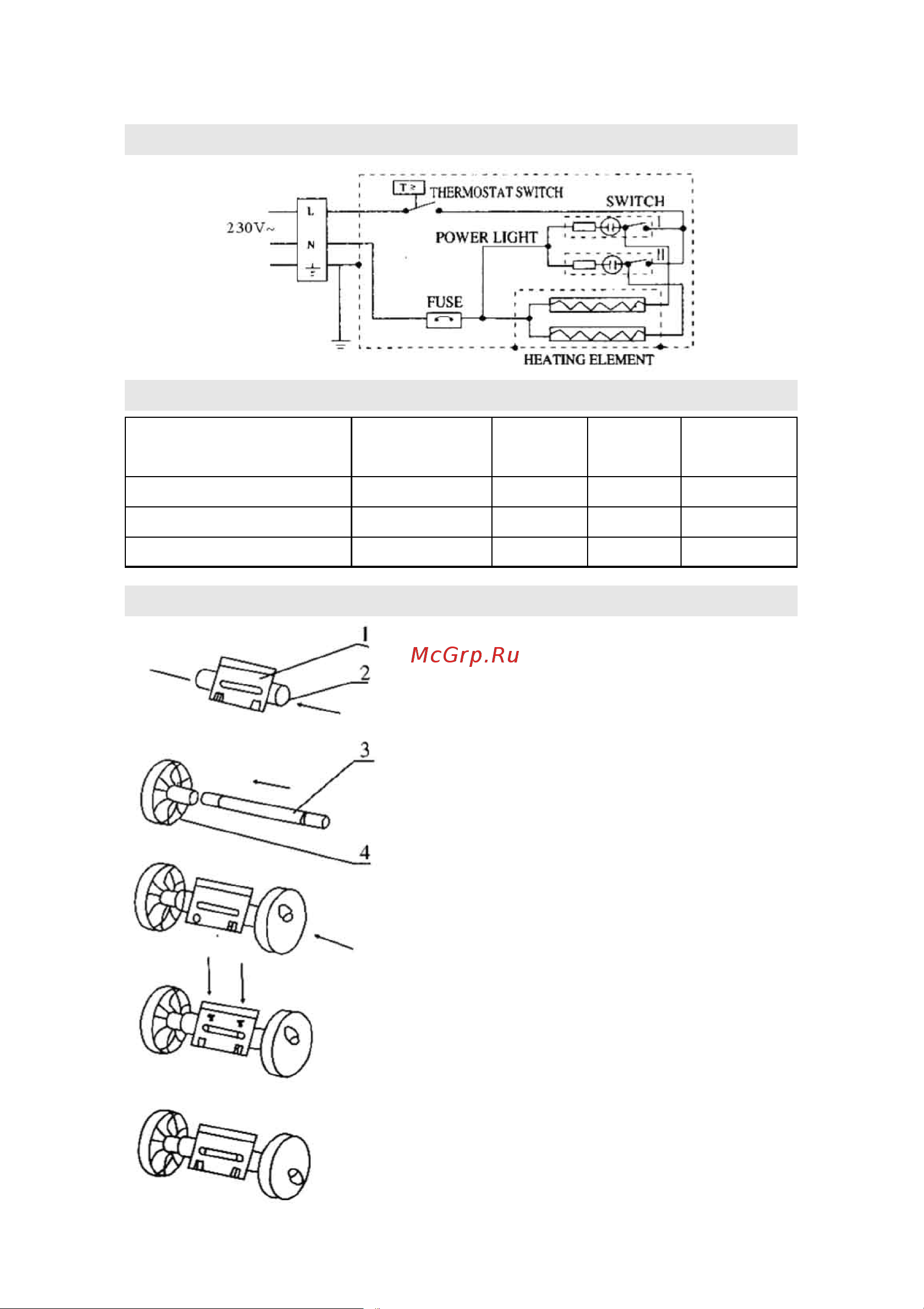

Elenberg HC-150920 [4/12] Electrical circuit diagram

MAIN DATA

Appliance name Style Rated Rated Rated

power voltage Frequency

B type oil filled radiator Ndm500wb 1500w 220-230v 50hz

B type oil filled radiator Iwy.1500wb I500w 220-230v 50hz

B type oil filled radiator Ndt-2000wb 2000w 220-230v 50hz

ELECTRICAL CIRCUIT DIAGRAM

INSTALLATION

1) Fit part 1 into the two holes of part2

2) Insert part 3 into one wheel

3) Insert part 3 into part 2, then fit on

another wheel

4) Fastern them with two screws

(m4x8)

5) Wheel set is finished. Then fit them

onto the body of oil filled radiator.
