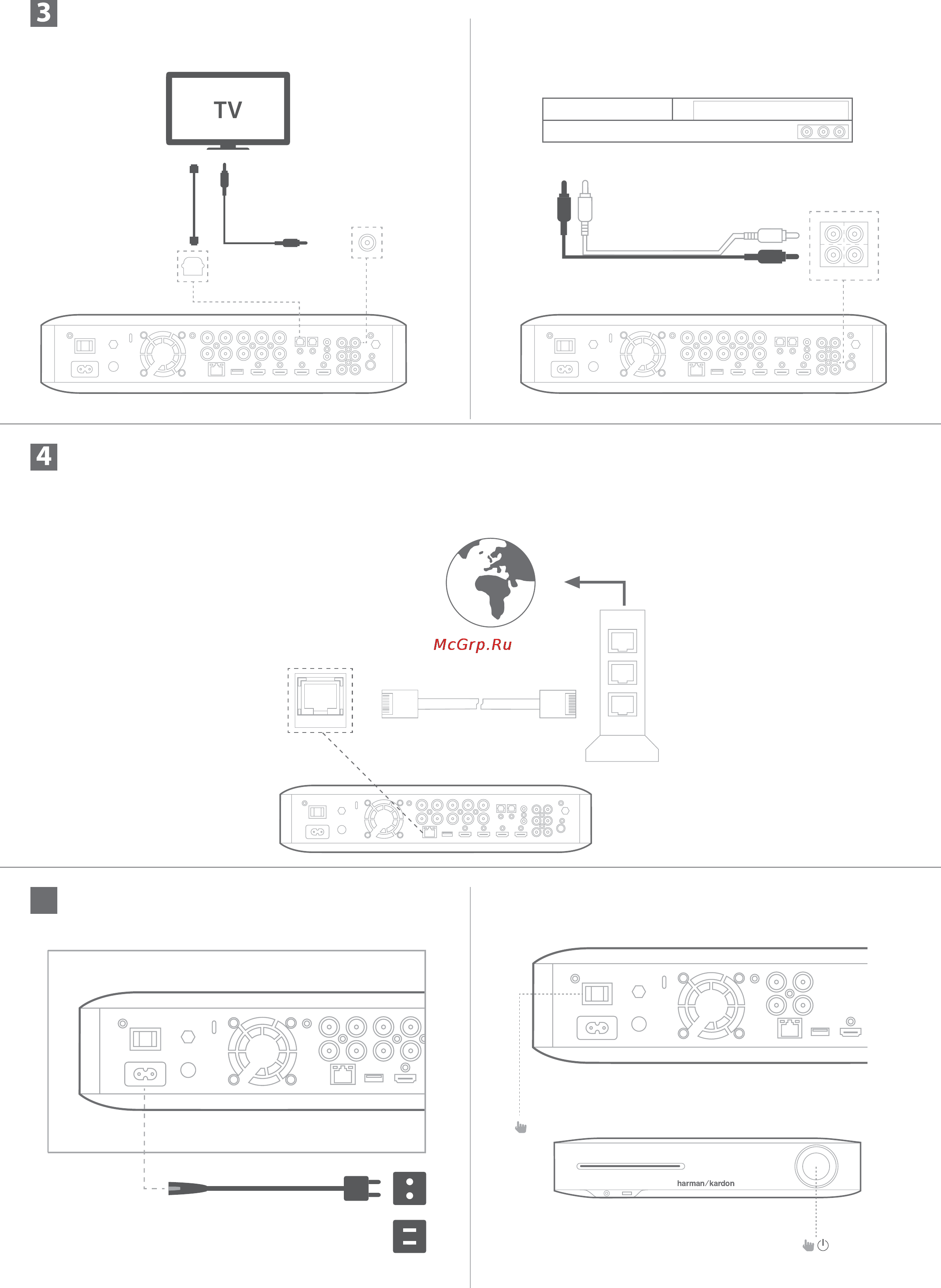

Connecting a digital audio source device Connecting an analog audio source device
Connecting to a wired network
To Internet
Network Modem
5
Connecting to AC power
AC Power Cord
Powering on the BDS
NOTE: if you will connect to your home network wirelessly, skip this step for now. You will use the BDS settings menus to connect to it once
you complete other connections and power on the system.
Содержание
- B d s 2 8 0 1
- B d s 2 8 0 b d s 5 8 0 1
- B d s 5 8 0 1
- Main power switch 2 antenna air 3 speaker outputs 4 optical digital audio s pdif inputs 5 trigger output 6 aux 1 input and aux 2 input 7 subwoofer output 8 antenna wi fi 9 fm radio antenna input 10 coaxial digital audio s pdif input 11 ir remote input 12 hdmi output arc 13 hdmi 1 mhl input 14 hdmi 2 input 15 hdmi 3 apple input 16 usb input 17 wired network rj 45 input 18 wps button 19 ac power input 20 disc slot 21 headphone output ezset eq mic input 22 usb ipad ipod iphone input 1
- Quick start guide 1
- B d s 2 8 0 b d s 5 8 0 2
- Caution before making any connections to the bds system ensure that the system s ac cord is unplugged from the system and the ac outlet making speaker connections with the system plugged in and turned on could damage your speakers 2
- Connecting fm radio connecting a source by hdmi including mhl 2
- Important make sure the and bare wires do not touch each other or any metal object on bds receivers rear panel touching wires can cause a short circuit that can damage bds receiver 2
- Note if your tv supports hdmi audio return channel arc and you access digital channels from your tv s built in tuner or you have other sources such as a component video source already connected directly to your tv you can feed their sound to the bds system via the hdmi monitor out connector s audio return channel and they will not require additional connections to the system 2
- Subwoofer 2
- Battery installation 4
- For complete information about using all of your bds system s features download the bds 280 bds580 blu ray disc system owner s manual from www harmankardon com 4
- How to use the bds home menu explanation 4
- Initial setup 4
- Note there are two pages of available sources to access more sources press the cursor down button while highlighting any bottom row source icons 4
- Press the remote control home button to display the home menu screen the available sources are shown in a grid to select a source from the grid use the cursor up down left right buttons to highlight the desired source then press the ok button 4
- Using the remote control 4
- Before you use your bds you need to configure it to work with your particular speaker system harman kardon s ezset eq system uses the supplied ezset eq microphone to perform this important step automatically 5
- Connecting to a wireless home network 5
- Configuring bds for your speaker system 5
- Ezset eq microphone 5
- Important press the remote control disc button before performing the ezset eq procedure the ezset eq procedure is only available when the disc input is selected 5
- Note if the test fails the testing message on the screen will change to ezset eq failed make sure all speakers are connected and the room is quiet press the back button make sure all speakers are correctly connected and perform the test again from step 5 5
- Plug the supplied ezset eq microphone into the bds s front panel headphone connector 2 place the microphone at ear height in your main listening position 3 press the remote control s home button the system s home menu screen will appear on the tv 4 use the cursor to highlight settings then press ok to select it the system settings menu will appear 5 use the down cursor button to select sound and press ok use the cursor to select ezset eq and press ok 6 remain silent while the test noise plays through the speakers as the test noise circulates among the speakers the screen will show which speaker is being tested 7 when the testing process is complete the testing message on the screen will change to all tests done 8 press the back button to exit the ezset eq test procedure 5
