BDS280 BDS580
Subwoofer

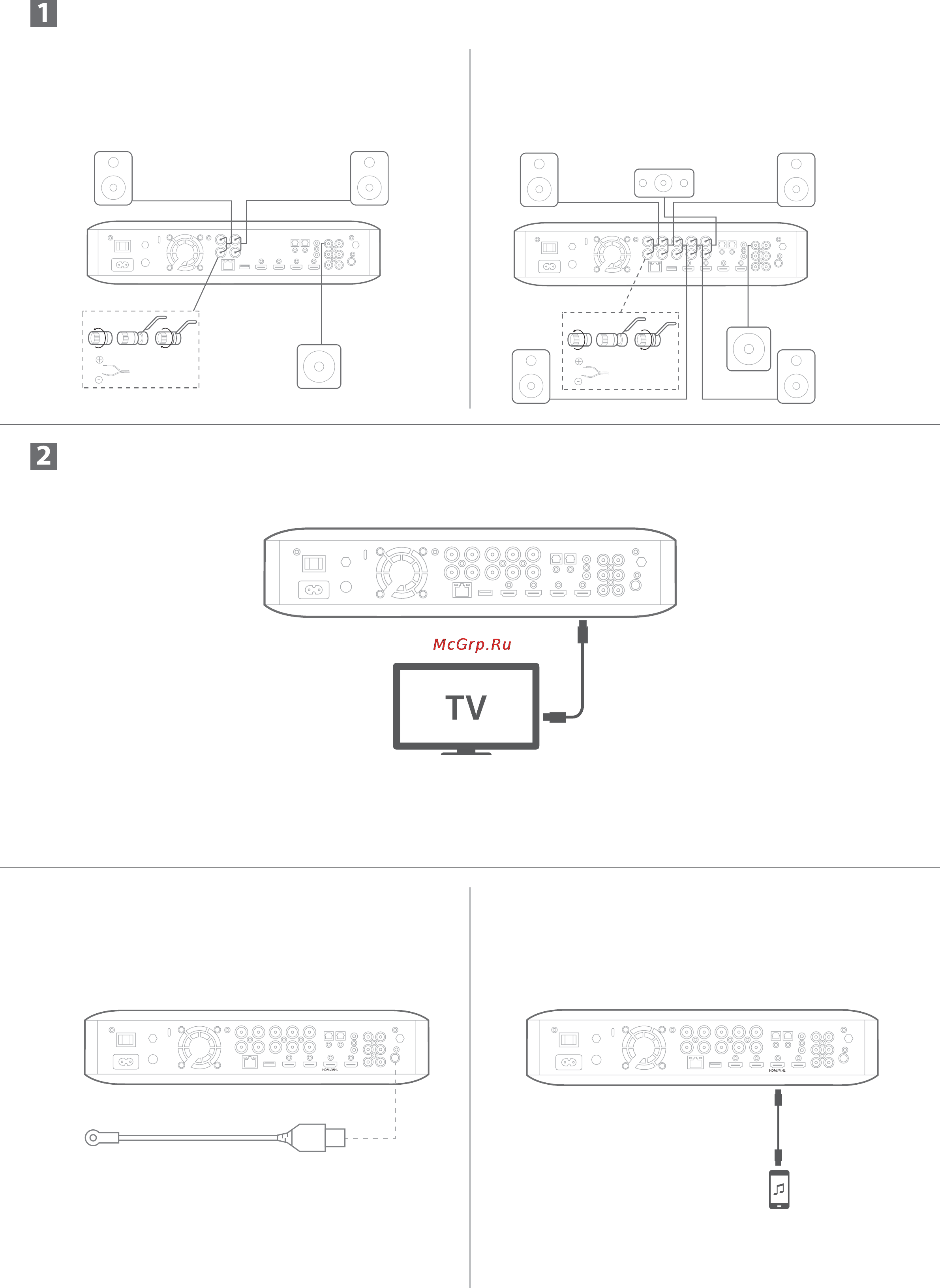

Connecting your speakers
Front left
speaker
Front right
speaker
Wire with black
stripe is ‘
_
’
terminal
Subwoofer
Connecting your speakers
Front left
speaker
Front right
speaker
Surround
right
speaker
Wire with black
stripe is ‘
_
’
terminal
Surround
left
speaker
Centre
speaker
CAUTION: Before making any connections to the BDS system, ensure that the system’s AC cord is unplugged from the system and the
AC outlet. Making speaker connections with the system plugged in and turned on could damage your speakers.
HDMI-equipped TV
HDMI ARC
Connecting FM radio Connecting a source by HDMI, including MHL
Compatible with the Roku Streaming Stick and mobile
devices equipped with MHL.
IMPORTANT: Make sure the (+) and (-) bare wires do not touch each other or any metal object on BDS receivers rear panel. Touching wires
can cause a short circuit that can damage BDS receiver.
NOTE: If your TV supports HDMI Audio Return Channel (ARC) and you access digital channels from your TV’s built-in tuner or you have other
sources (such as a component video source) already connected directly to your TV, you can feed their sound to the BDS system via the HDMI
Monitor Out connector’s Audio Return Channel, and they will not require additional connections to the system.
