Erisson DVD-1110 [6/44] Power 2 open close 3 r l 4 usb 5 sd mmc ms 6 stop 7 play pause

3 4 5

6 7

POWER

USB

SD/ MMC/MS

F- L CE N S- L M- L G/ Y

Pb /C b

Pr /C r

F- R SU B S-R M- R C OA X IA L V ID E O S -V I DE O O PT I CA L

SC ART O UT

220V~ 50Hz

CLA SS 1

LAS ER PROD UCT

CAUTION

RIS K OF ELEC TRIC SH OCK

DO NO T OPEN

DVD-1110

MIC 2

MIC VOL

1 2 3 4

5 6 7 8 9 10

12 13

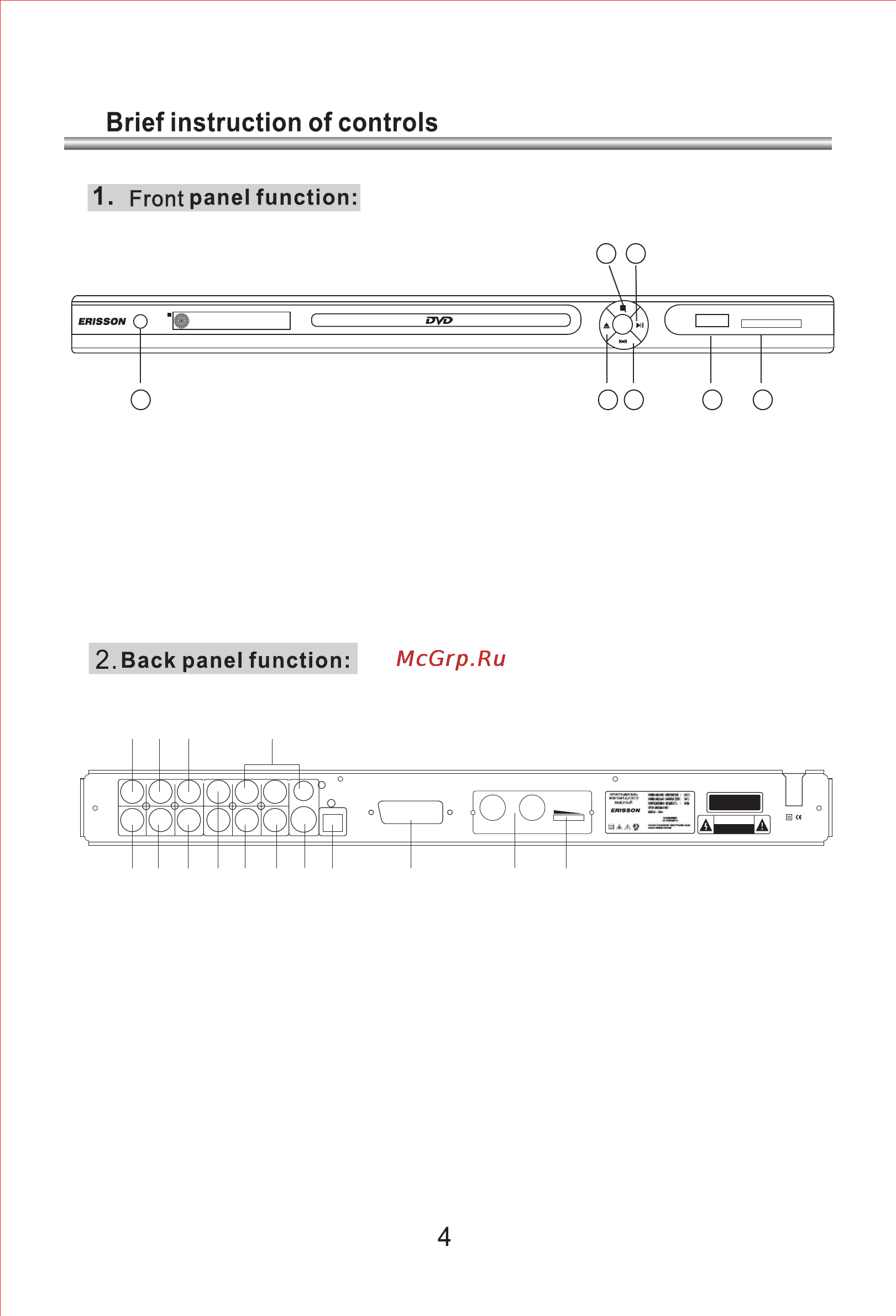

1. 5.1CH FL output jack

2. 5.1CH CENTER output jack

3. 5.1CH SL output jack

4. Y Cb Cr output jack

5. 5.1CH F-R output jack

6. 5.1CH SUB output jack

7. 5.1CH S-R output jack

8. 5.1CH M-L/M-R output jack

9. Digital signal COAXIAL output jack

10. VIDEO output jack

11. S-VIDEO output jack

12. Digital signal OPTICAL output jack

13. SCART OUT output jack

14. MIC 1-2

15. MIC VOL

1. POWER

2. OPEN / CLOSE

3. R/L

4. USB

5. SD / MMC / MS

6. STOP

7. PLAY / PAUSE
