TECHNICAL PASSPORT ENGLISH
Extractor hood
А – Hood motor On/Off
В – Motor rotation speed decrease
(suction power reducing)
С – Motor rotation speed increase
(suction power increasing)
D – When you press on the Timer,
the motor will automatically be shut
down after 15 minutes. To activate the
function, press and hold the Timer for
3 seconds (rotation speed level starts
to  ash on the display). To cancel, press
once on the Timer.
E – Lighting On/Off

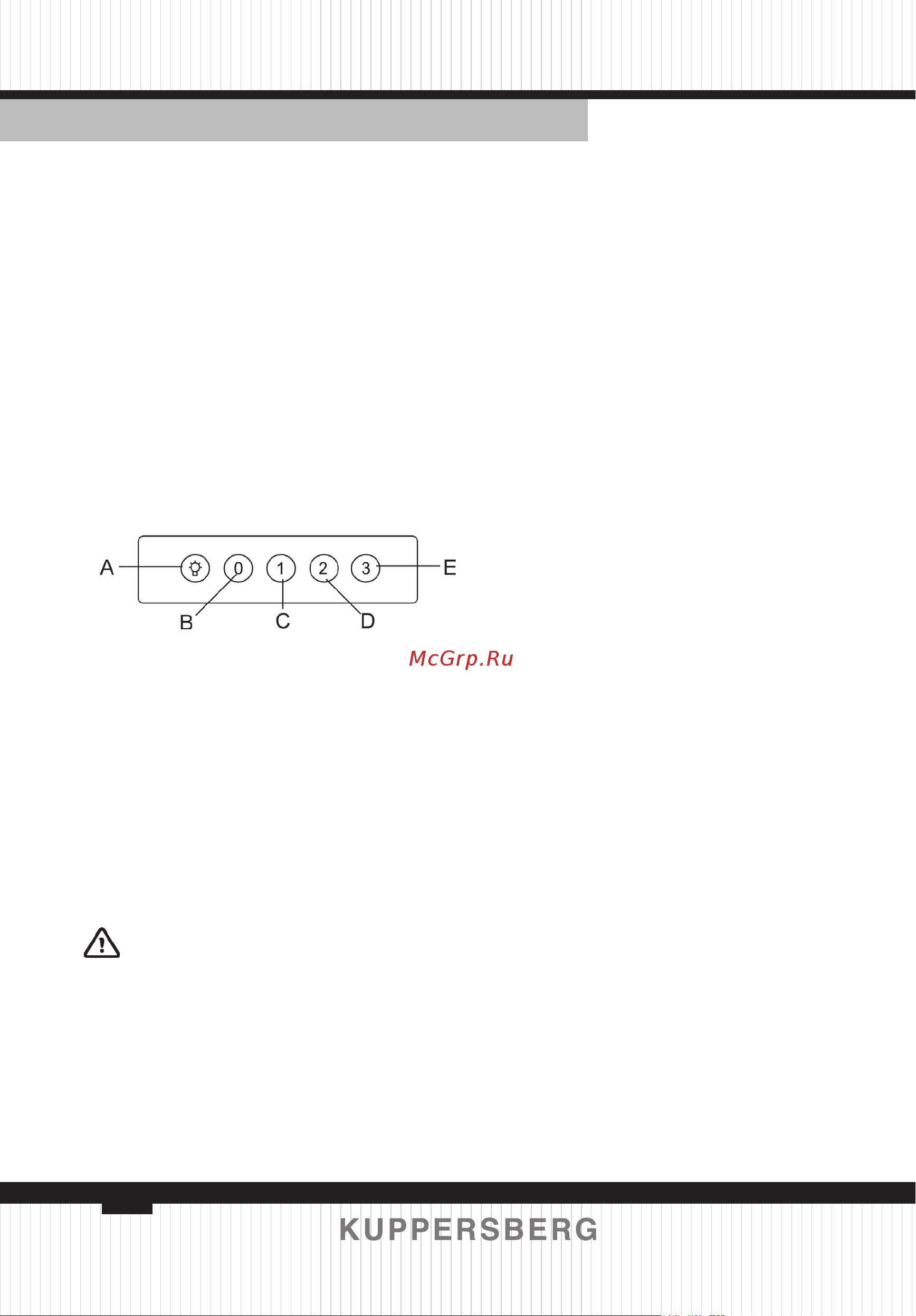

Mechanical control (buttons)
А – «Lighting» button
В – «0» button
С – «1» button
D – «2» button
E – «3» button
«Lighting» button – Lighting On/Off
«0» button - hood motor On/Off
«1» button - motor rotation speed 1
(initial level)
«2» button - motor rotation speed 2
«3» button - motor rotation speed 3
1. To install the air cleaner above the
stove, draw a vertical line on the wall
from the center of the stove vertically
to the ceiling. To comply with safety
regulations, the distance between the
cooking surface and the air cleaner
should be 700 mm. Accordingly, make
a mark with a pencil on the vertical
line at a height of 700+426=1126 mm
from the surface of the stove. Draw a
horizontal line through this point on
the wall. Measure 100 mm on this line
to the right and left from the point
of intersection of the vertical and
horizontal lines and make marks with
a pencil. Using a 6-mm drill bit, drill
holes in these marks. Insert dowels in
the holes just drilled and fi x the hooks.
2. Installation of decorative cover
Draw a horizontal line on a wall, at
a distance of 75 mm from the ceiling.
Measure 50 mm on this line to the right
and left from the point of intersection
with the vertical line and make marks
with a pencil. On these marks, drill the
holes, insert the 8-mm dowels in them
and tighten 2.5-mm screws which must
protrude 2 mm from the wall.
Step 1: Installation of hooks
Step 2: Installation of mounting
bracket
Step 3: Installation of housing
Step 4: Installation of external part
of decorative cover
Step 5: Installation of internal part
of decorative cover
1- Ø8 dowel
2- Mounting bracket
3- Hook
4- Internal part of decorative cover
5- External part of decorative cover
6- Air cleaner housing
7- Bushing adapter
8- Ø 2.5 screw
SECTION 5.
Mounting and dimensions
Please unpack and inspect the
appliance! Before starting installation,
make sure that the hood has no obvious
transport damages. If such defects are
detected, do not install or connect the
appliance to the mains.
