18 Room Air Conditioner
Maintenance and Service
Don't touch this plasma filter within 10 seconds after opening the inlet grille, it may cause an electric shock.

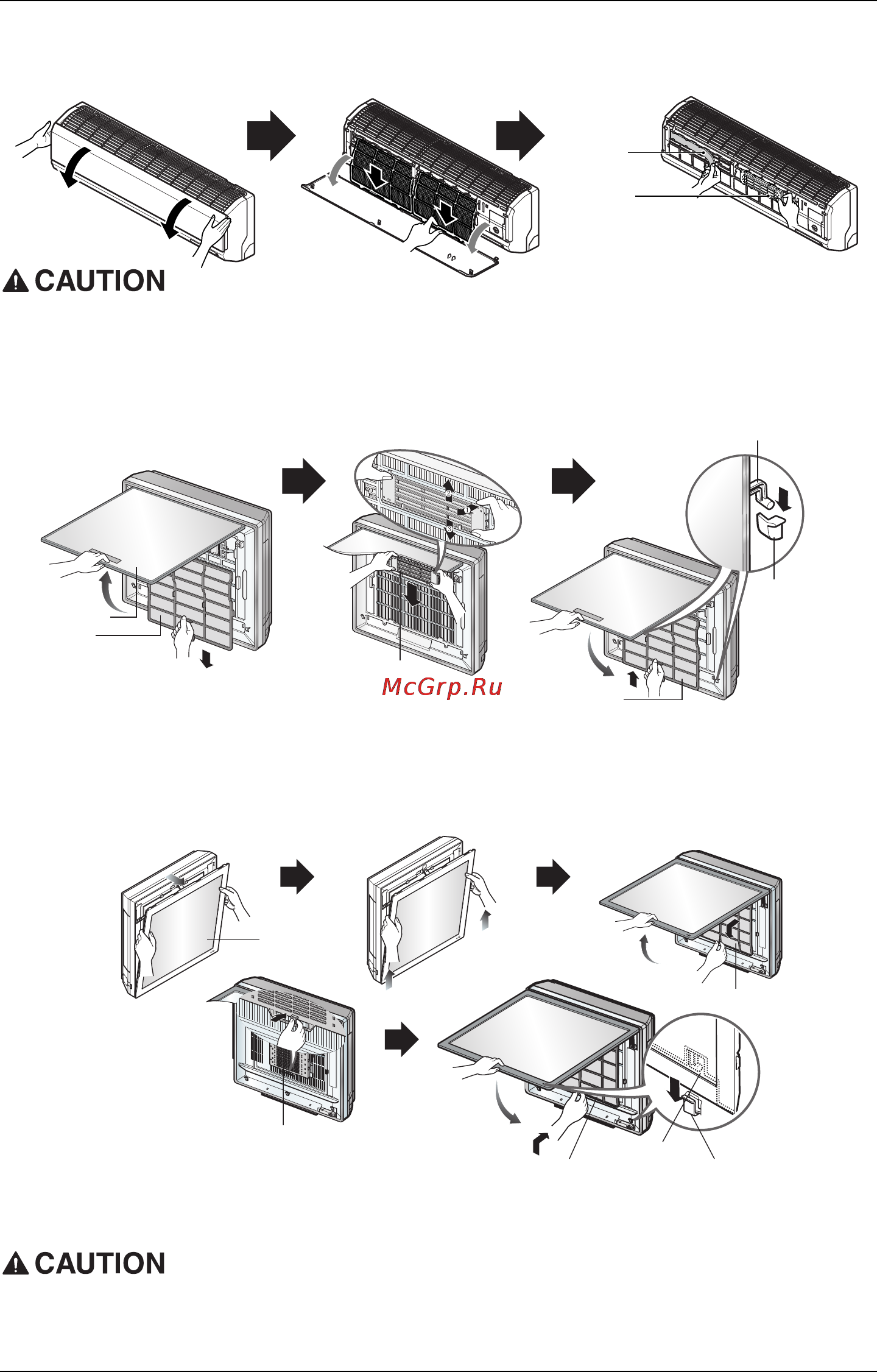

Type 2: Pull the front panel from both sides as shown.
Then pull the filter tab slightly forward to remove the filter. After removing the air filter remove
the plasma and triple deodorizer filter by slightly pulling forward.
Plasma filter
Deodorizer
filter
3. Art Cool (Type 2) :
Pull out the upper section of front panel and lift it up. Take out a filter with front panel held.
With PUSH button pressed, pull out grip to take out a plasma filter. Dry it completely in the shade after cleaning.
Then set a plasma filter and a filter orderly. Put the hook of front panel onto the hanger, in order to close the front
panel.
4. Art Cool Type Wide :
The procedure of removal of filters is same as in Art Cool Type1 model as shown above.
Don't touch this plasma filter within 10 seconds after opening the inlet grille, it may cause an electric shock.
Front panel
Plasma filter
Front panel hook
Hook-hanger
Air filter
Air filter
2. Art Cool (Type 1) :
Pull down the grille bottom, after lifting out the filter tab a bit and take the filter out slowly. Remove the
plasma filter as shown. After cleaning and drying well reinstall the filter and grille by matching the hook.
Air filter
Front panel hook
Hook-
hanger
Air filter
Plasma
filter
Front panel
