14 Room Air Conditioner
Operating Instructions
Controls
ON
OFF
CANCEL
AUTO CLEAN
SET
1
3
5
4
9
10
12
14
16
7
2
8
13
15
11
6
Cooling Operation
Auto Operation or Auto Changeover
Healthy Dehumidification Operation
Flip-up door
(opened)
Heating Operation
Signal transmitter
•
Cooling Model( ), Heat Pump Model( )
17
18

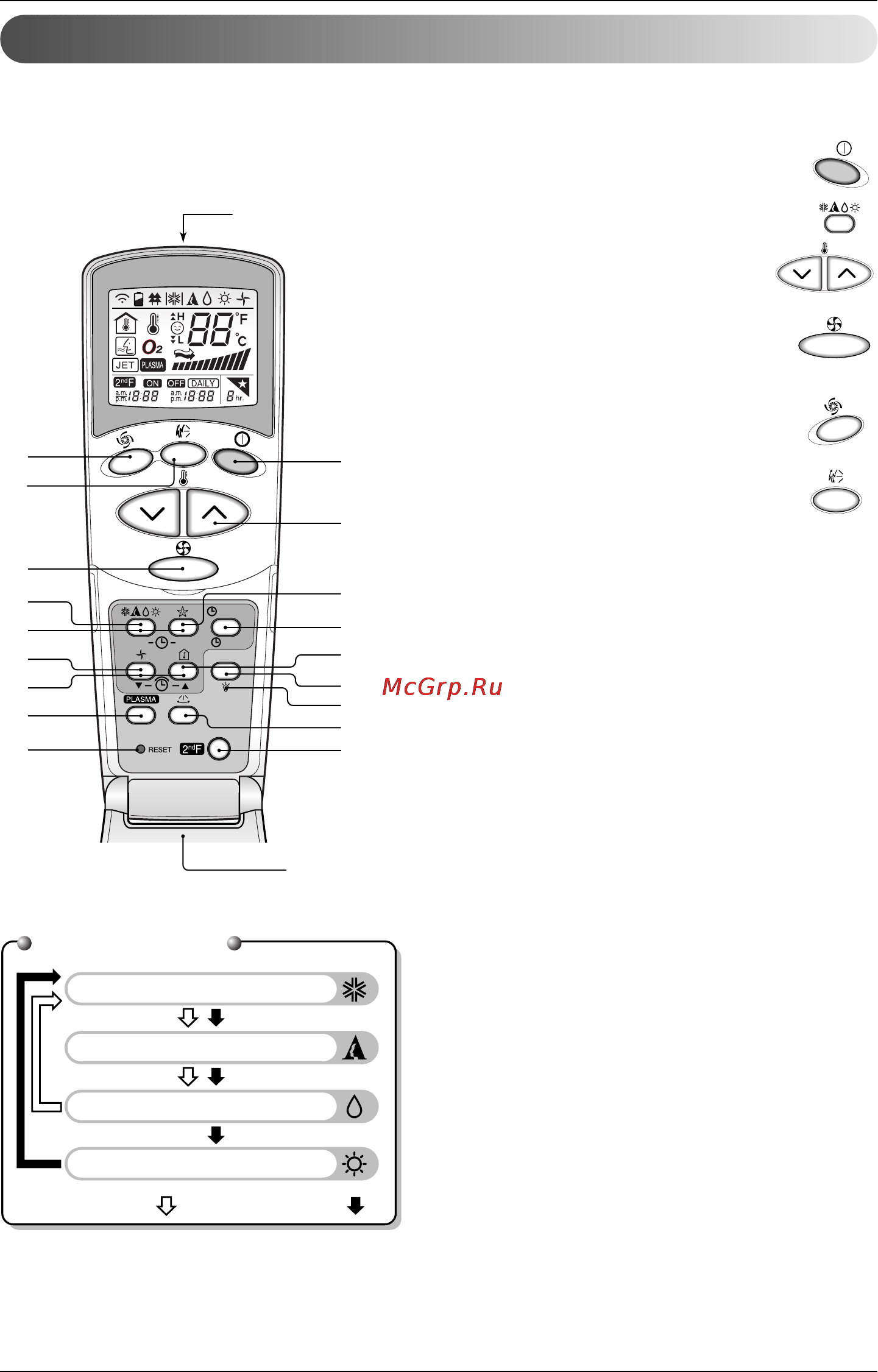

Operation Mode
The controls will look like the following.
Remote Control Operations
1. START/STOP BUTTON
Operation starts when this button is pressed
and stops when the button is pressed again.
2. OPERATION MODE SELECTION BUTTON
Used to select the operation mode.
3. ROOM TEMPERATURE SETTING
BUTTONS
Used to select the room temperature.
4. INDOOR FAN SPEED SELECTOR
Used to select fan speed in four steps
low, medium, high and CHAOS.
5.
JET COOL
Used to start or stop the speed cooling.(speed
cooling operates super high fan speed in
cooling mode.)
6. CHAOS SWING BUTTON
Used to stop or start louver movement and
set the desired up/down airflow direction.
7. ON/OFF TIMER BUTTONS
Used to set the time of starting and stopping
operation. (See page 23)
8. TIME SETTING BUTTONS
Used to adjust the time. (See page 23)
9. TIMER SET/CANCEL BUTTON
Used to set the timer when the desired time
is obtained and to cancel the Timer
operation. (See page 23)
10. SLEEP MODE AUTO BUTTON
Used to set Sleep Mode Auto operation.
(See page 23)
11. AIR CIRCULATION BUTTON
Used to circulate the room air without
cooling or heating. (See page 24)
12. ROOM TEMPERATURE CHECKING
BUTTON
Used to check the room temperature.
13. NEO PLASMA(OPTIONAL)
Used to start or stop the
plasma-purification function. (See page 21)
14. HORIZONTAL AIRFLOW DIRECTION
CONTROL BUTTON (OPTIONAL)
Used to set the desired horizontal airflow
direction.
15. RESET BUTTON
Used prior to resetting time.
16. 2nd F Button
Used prior to using modes printed in blue
at the bottom of buttons. (See page 22)
17. AUTO CLEAN (OPTIONAL)
Used to set Auto Clean mode.
18. LED LUMINOSITY (OPTIONAL)
Used to adjust LED luminosity.
