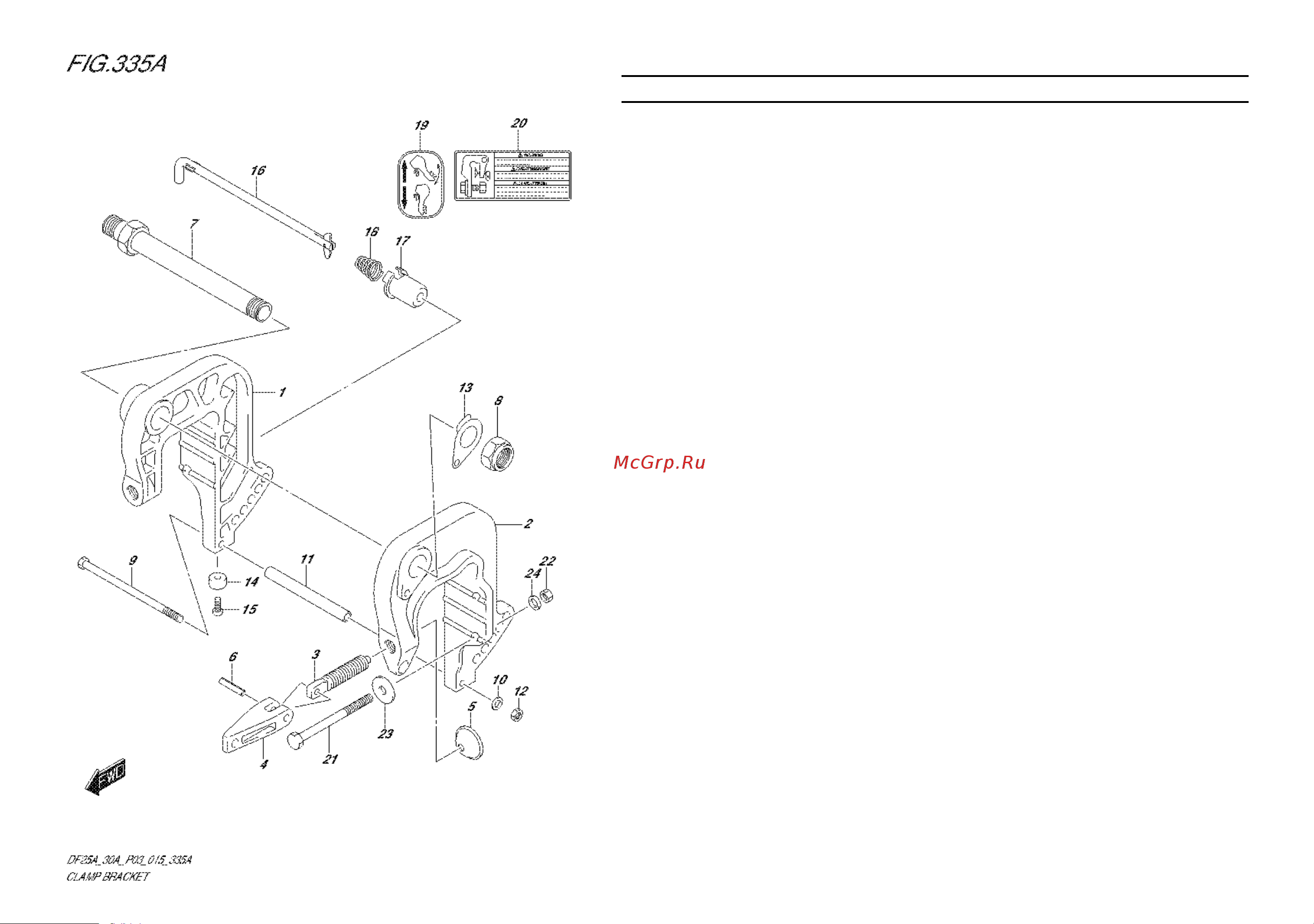

FIG.335A (1-D-5) CLAMP BRACKET
REF NO. PART NO. DESCRIPTION
Q'TY
REMARKS
1 41111-94L00-0EP BRACKET, CLAMP STBD (BLACK) 1
2 41121-94L00-0EP BRACKET, CLAMP PORT (BLACK) 1
3 41211-94L00 SCREW, CLAMP 2
4 41212-91J00 HANDLE, CLAMP 2
5 41213-94J01 PLATE, CLAMP 2
6 09205-06021 PIN, SPRING (6X25) 2
7 41130-91L00 SHAFT, CLAMP BRACKET 1
8 09159-22006 NUT 1
9 09100-06165 BOLT (6X180) 1
10 09160-06082 WASHER (6.5X13X1.0) 1
11 09180-06342 SPACER (6.1X9X138) 1
12 29141-93J00 NUT 1
13 41135-93J11 WASHER, CLAMP BRACKET SHAFT 1
14-1 55321-87J00 ANODE, PROTECTION 2
14-2 55321-87J10 ANODE, MAGNESIUM 1 OPT
15 09103-06281 BOLT (6X14) 2
16 45420-94L00 PIN, TILT LOCK 1
17 45425-94J01 STOPPER, TILT LOCK PIN 1
18 59442-94L00 SPRING 1
19 45269-89L00 MARK, REVERSE LOCK 1
20 69911-91J00 MARK, CLAMP BRACKET 1
21 09100-10309 BOLT (10X110) 2
22 09159-10050 NUT 2
23 09160-10139 WASHER (10.5X35X3) 2
24 09160-10140 WASHER (10.5X18X3) 2
