Before you start

5

5

Before you start

Connection

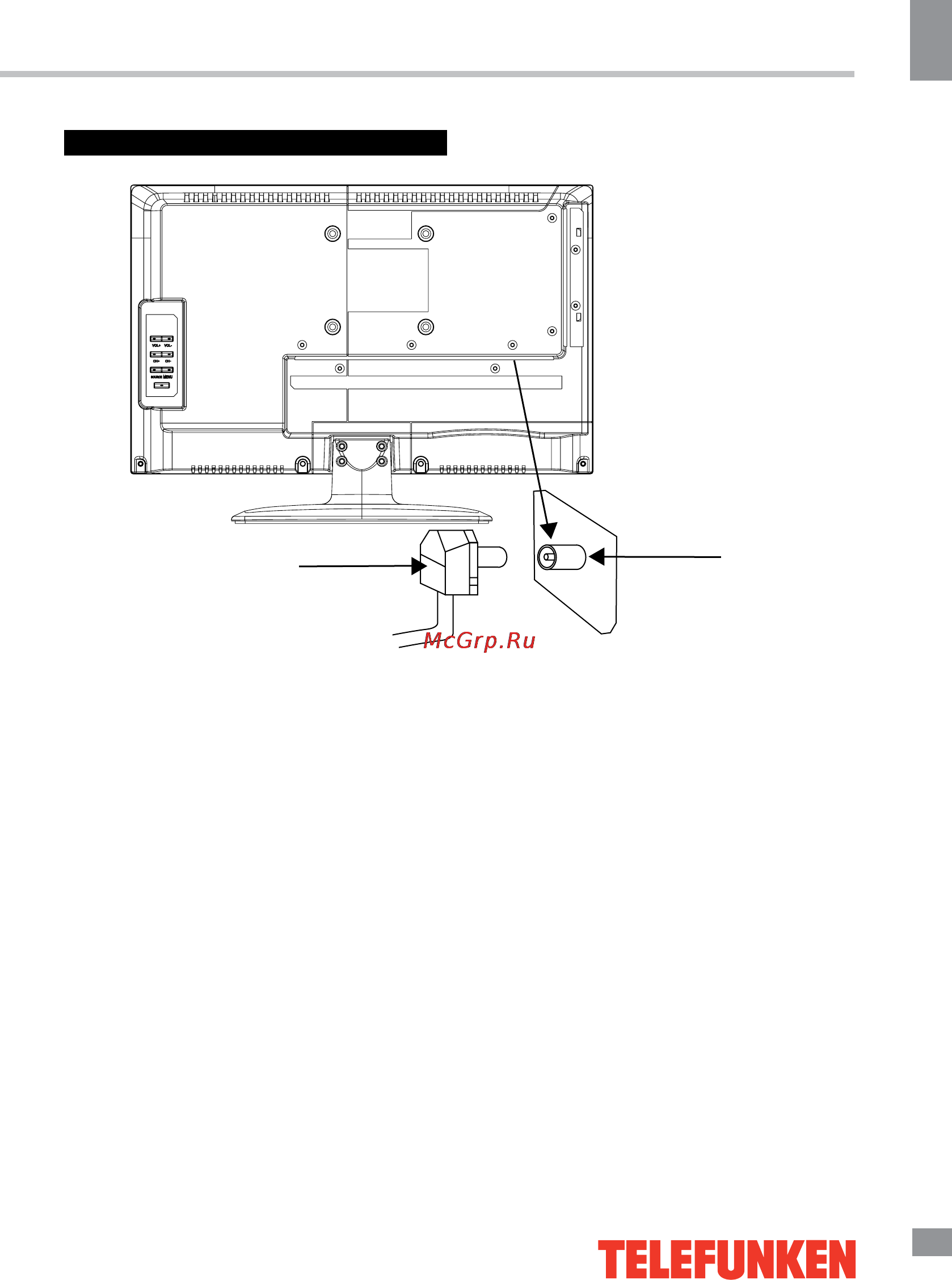

Outdoor Antenna Connection

Use 75Ω coaxial cable plug or 300-75Ω

impedance converter to plug in antenna input

terminal on the rear of the cabinet.

Other connections

• Connect the audio sources (Including

DVD, VCDR, CAMCORDER and PC) to the

proper Audio input jacks ‘L’ and ‘R’.

• Connect the video source to the

Composite video jack by RCA cable.

• Component input Y/Pb/Pr is intended

to receive component video signal from the

external device.

• Connect the power cord to the DC

adaptor, then connect the adaptor to the DC

power jack of this unit.

• When using the LED as a computer

screen, connect the PC to the VGA jack from

the monitor by the relevant cable (not included).

• This unit has PC audio in jack. Connect

this jack to PC main unit with related audio

cable in PC mode and adjust the volume to

what you want.

• If the video source has a HDMI output

jack, you can connect the signal to the monitor

by the HDMI cable (not included).

• Connect your headphones or earphones

(not included) to the headphone socket of

this unit. When earphones are connected, the

sound output through the built-in speakers of

this unit is mute.

75 Ohm co-axis cable

TVRF antenna jack

Antenna cable connector

ST AN DB Y
