Chapter 1. 1-6

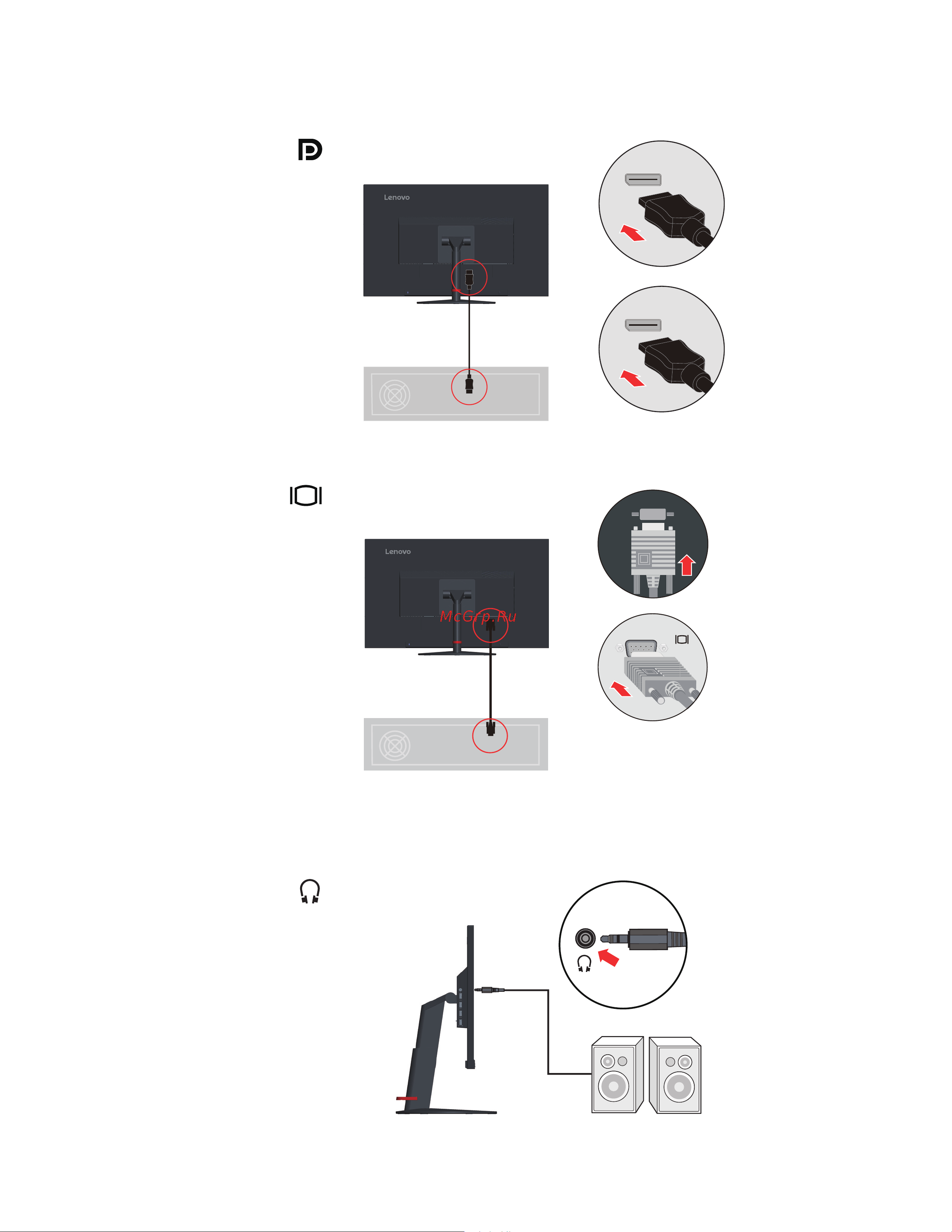

4. Connect one end of the DP cable to the DP connector on the back of the computer, and the

other end to the DP connector on the monitor.

5. Connect one end of the analog signal cable to the monitor VGA (Analog) connector and

the other end to the computer.

6. Connect the speaker’s audio cable and audio jack of monitor to transfer audio source from

Display Port, or HDMI.

Note: The audio output in HDMI/DP modes.
