Lenovo ThinkVision T24d-10 [8/39] Cable lock slot

Chapter 1. 1-4

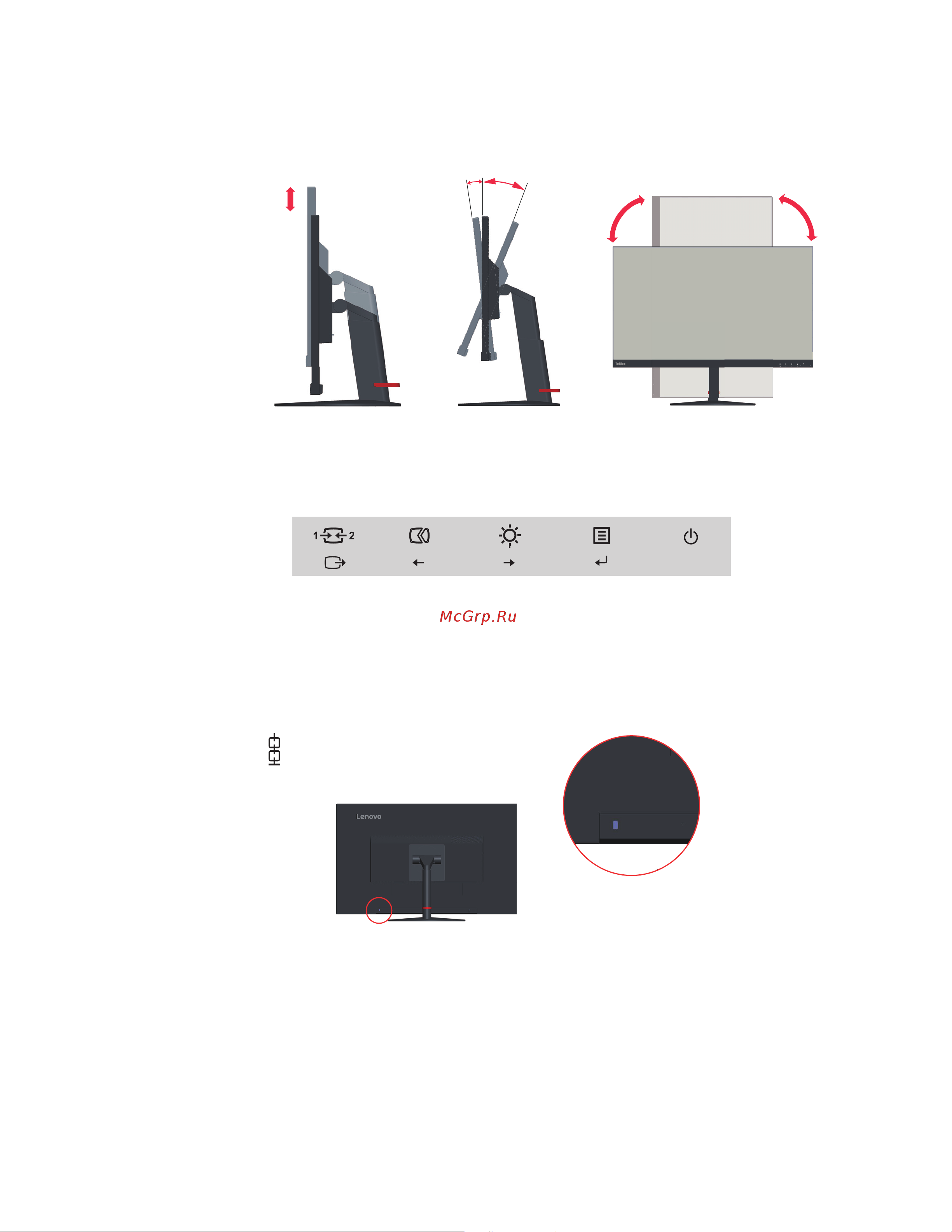

- Adjust the screen position before rotating the monitor screen. (Make sure that the monitor

screen ascent to its highest point, and it inclines backward at 30°.)

- then rotate clockwise until the monitor stops at -90°~90°.

Monitor controls

The keypad controls on the panel frame are accesses to various functions.

For information on how to utilize these keypad controls, please see "Adjusting your monitor

image"on page 2-3.

Cable lock slot

Your monitor is equipped with a cable lock slot located on the rear of your monitor.

PP

5°

0°

°

°
