English
10

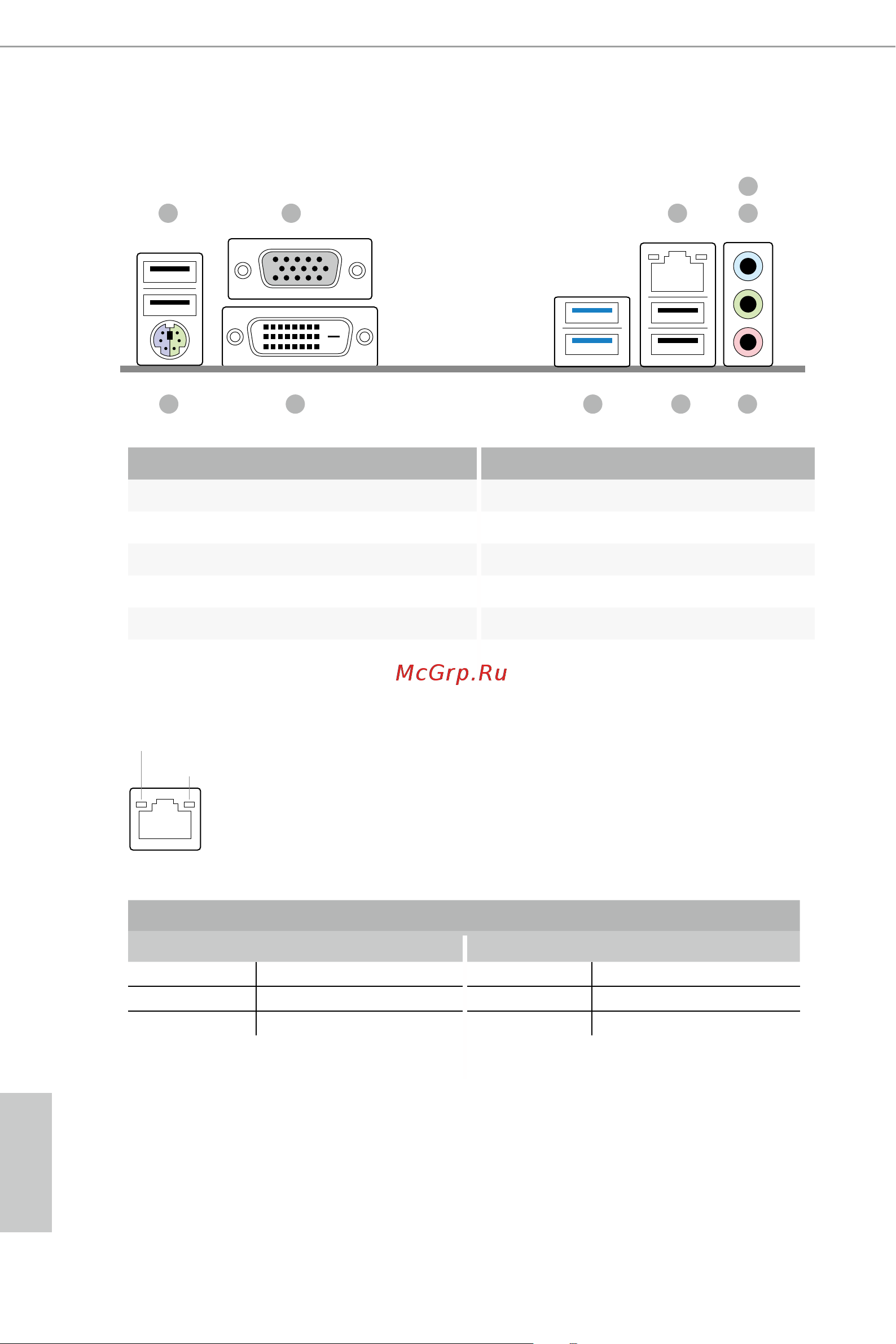

No. Description No. Description
1 USB 2.0 Ports (USB12) 6 Microphone (Pink)**
2 D-Sub Port 7 USB 2.0 Ports (USB_34)
3 LAN RJ-45 Port* 8 USB 3.1 Gen1 Ports (USB3_12)
4 Line In (Light Blue)** 9 DVI-D Port
5 Front Speaker (Lime)** 10 PS/2 Keyboard/Mouse Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
H310CM-DVS:
10 7 6
9
1 2 3 5
8
4
