Connecting the Monitor

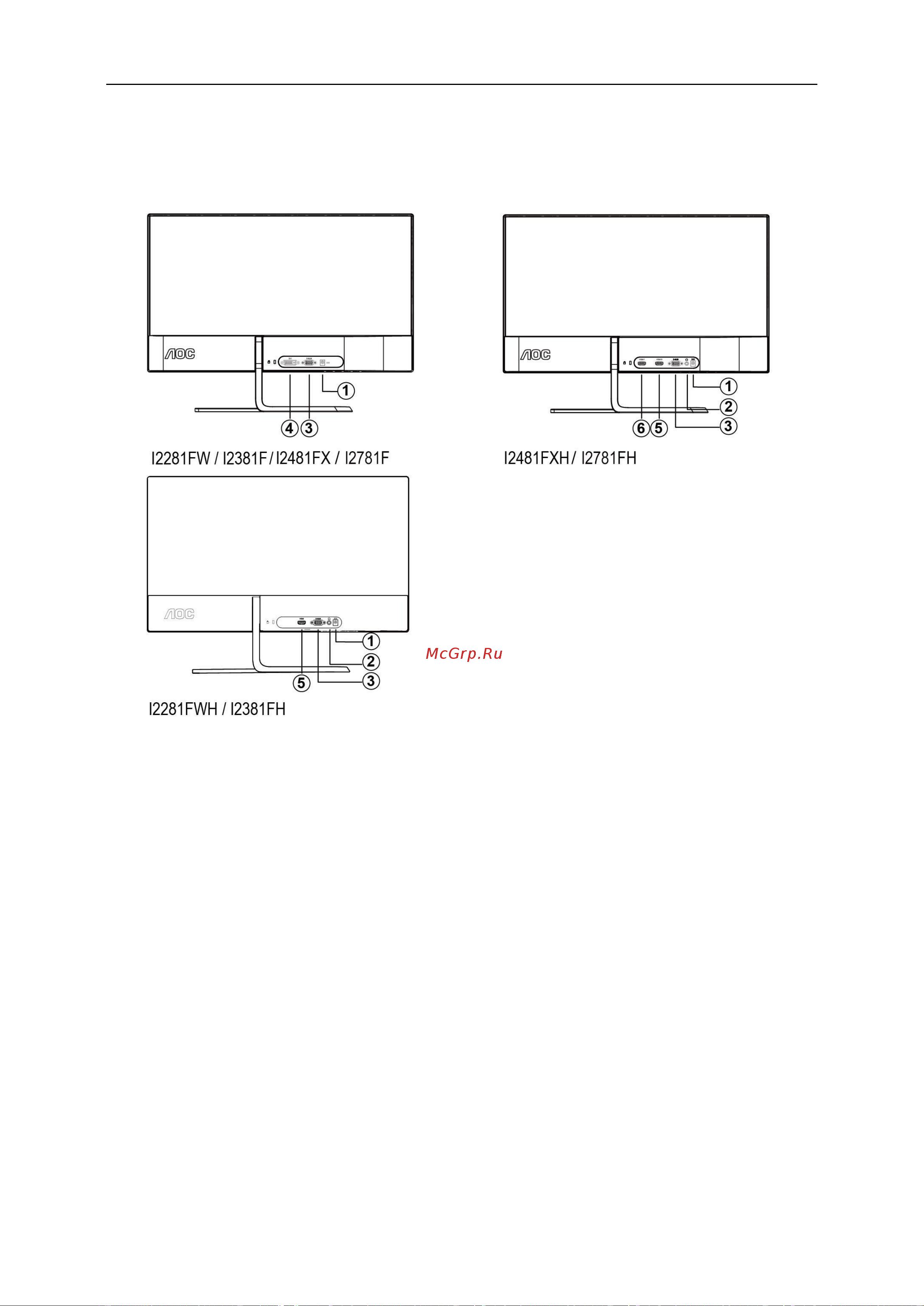

Cable Connections In Back of Monitor and Computer:

1 DC port

2 Earphone

3 D-SUBI

4 DVI

5 HDMI-1

6 HDMI-2

To protect equipment, always turn off the PC and LCD monitor before connecting.

1 Connect the adapter cable to the DC port on the back of the monitor.

2 Connect one end of the D-Sub cable to the back of the monitor and connect the other end to the computer's

D-Sub port.

3/4 Optional – (Requires a video card with HDMI port) – Connect one end of the HDMI cable to the back of the

monitor and connect the other end to the computer’s HDMI port.

5 Optional – (Requires a video card with DVI port) – Connect one end of the DVI cable to the back of the monitor

and connect the other end to the computer’s DVI port.

6 (Optional-for machine type with headset function) Connect the headset to headset port in the back of monitor..

If your monitor displays an image, installation is complete. If it does not display an image, please refer

Troubleshooting.
