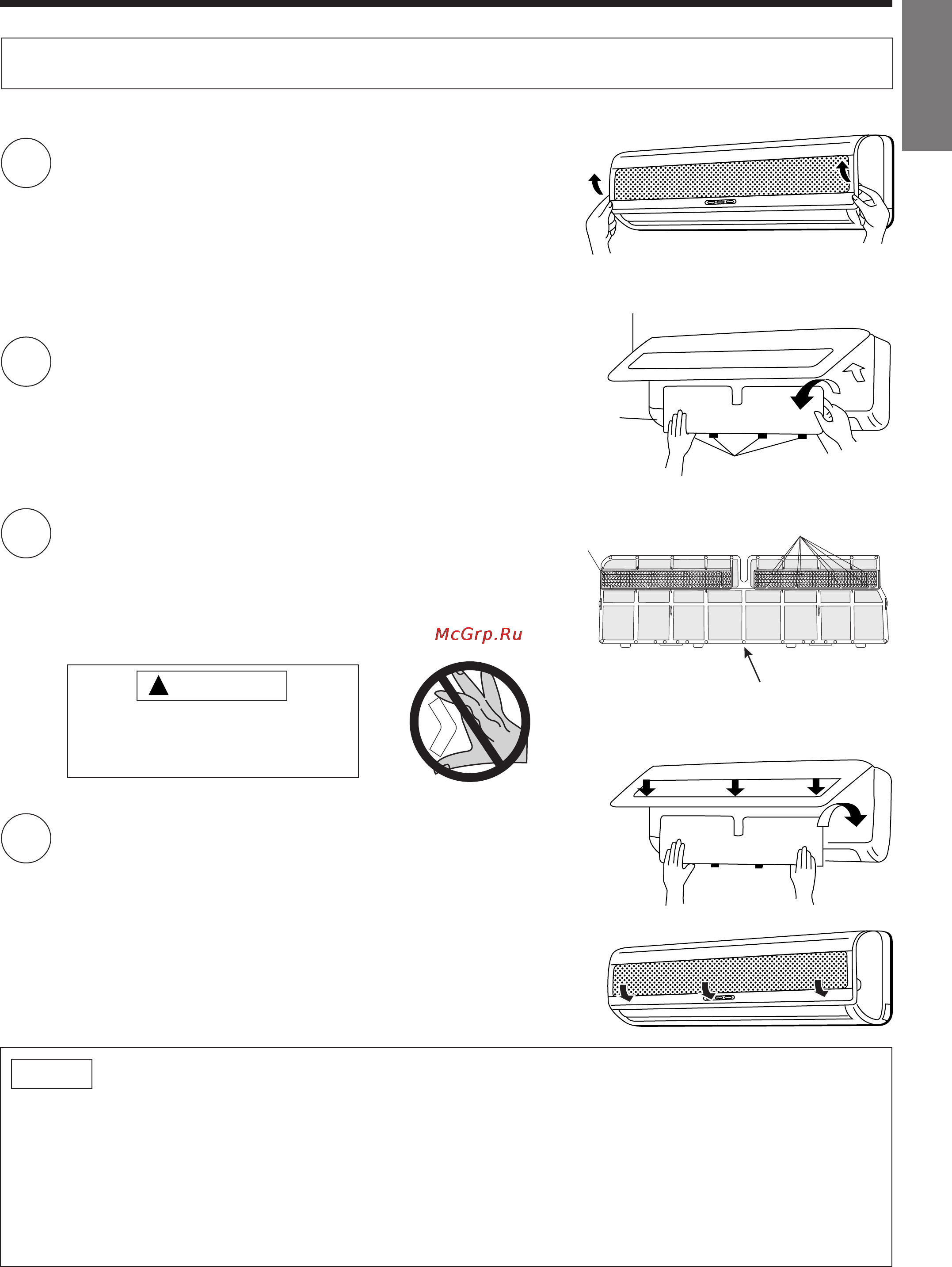

ATTACHING THE AIR CLEANSING AND DEODORIZING FILTERS

Before installation, be sure to stop the operation by using the remote controller.

Claws (8 places)

Make sure the “FRONT” is facing back side

Claws

Front cover

Front panel

Air filter

Open the front panel.

● Pull up the front panel by holding it at both sides

with both hands.

Remove the filter.

● Push the filter upward to release the claws and

pull out the filter.

Attaching the air cleansing and deodorizing filters

to the filter.

● Attach the air cleansing and deodorizing filters to

the frame by gently compress its both sides and

release after insertion into filter frame.

Attach the filters.

● Attach the filters by ensuring that the surface written

“FRONT” is facing front.

● After attaching the filters, push the front panel at

three arrow portion as shown in figure and close it.

CAUTION

Do not bend the air cleansing

and deodorizing filter as it may

cause damage to the structure.

NOTE

● In case of removing the air cleansing and deodorizing filters, please follow the above procedures.

● The cooling capacity is slightly weakened and the cooling speed becomes slower when the air cleansing

and deodorizing filters are used. So, set the fan speed to "HIGH" when using it in this condition.

● Air cleansing and deodorizing filters are washable and reusable up to 20 times by using vacuum cleaner

or water rinse under running tap water. Type number for this air cleansing filter is <SPX-CFH5>. Please

use this number for ordering when you want to renew it.

● Do not operate the air conditioner without filter. Dust may enter the air conditioner and fault may occur.

Frame
