English-9
English

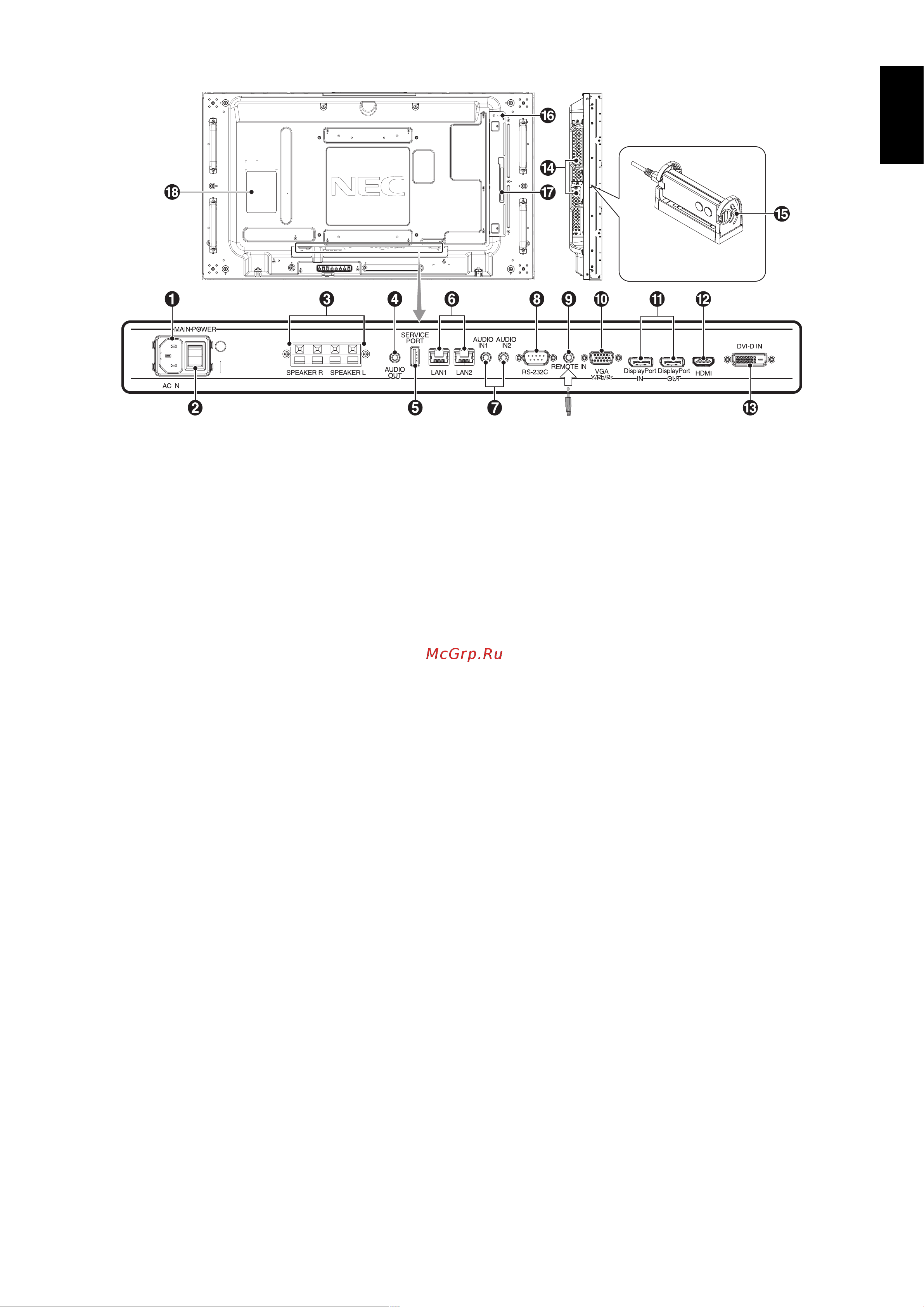

Terminal Panel
Option control unit
From Option control unit
쐃 AC IN connector
Connects with the supplied power cord.
쐇 Main Power Switch
On/Off switch to turn main power ON/OFF.
쐋 EXTERNAL SPEAKER TERMINAL
To output the audio signal from AUDIO 1, DPORT and HDMI.
Red terminal is plus (+).
Black terminal is minus (-).
NOTE: This speaker terminal is for 15 W + 15 W (8 ohm) speaker.
쐏 AUDIO OUT
To output the audio signal from the AUDIO IN 1, 2, DPORT and
HDMI to an external device (stereo receiver, amplifi er, etc.).
* This connector does not support Headphone terminal.
쐄 Service port
This USB slot is for future software upgrades.
쐂 LAN port (RJ-45)
LAN connection. See page 32 and 35.
NOTE: Please give priority for use to LAN1.
쐆 AUDIO IN 1, 2
To input audio signal from external equipment such as a
computer or DVD player.
RS-232C (D-Sub 9 pin)
Connect RS-232C input from external equipment such as a PC
in order to control RS-232C functions.
쐎 REMOTE IN
Use the optional wired remote control by connecting it to your
monitor.
NOTE: Do not use this connector unless specifi ed.
쐅 VGA IN (mini D-Sub 15 pin)
To input analog RGB signals from a personal computer or
from other RGB equipment. This input can be used with an
RGB or COMPONENT source. Please select signal type in
TERMINAL SETTING. See page 28.
NOTE: When you use this connector for COMPONENT,
please use a suitable signal cable. If you have any questions,
please ask your dealer.
쐈 DisplayPort connectors
IN connector: To input DisplayPort signals.
OUT connector: To output signal which is displayed.
See page 25 VIDEO OUT SETTING.
To output signal which is displayed as a main picture when
selected PIP mode. See page 11.
쐉 HDMI IN
To input digital HDMI signals.
씈 DVI IN (DVI-D)
To input digital RGB signals from a computer or HDTV device
having a digital RGB output.
* This connector does not support analog input.
씉 Option board slot
Slot 2 and slot 3 type accessories are available.
Please contact your supplier for detailed information.
NOTE: Please contact your supplier for available option board.
씊 Remote control sensor, AMBIENT LIGHT SENSOR
and HUMAN SENSOR
Receives the signal from the Remote control.
Detects the level of ambient light, allowing the monitor to
make automatic adjustments to the brightness setting,
resulting in a more comfortable viewing experience.
Do not cover this sensor. See page 19.
Detects human presence in front of the monitor. See page 46.
씋 Kensington Lock
For security and theft prevention.
씌 Intelligent wireless data sensor
Sensor for wireless communication of the monitor information
and settings.
씍 Rating Label
